Misonix SONICATOR XL2015 - Page 39

Operation Manual_____________________________________________Function of Controls and Indicators
_________________________________________________________________________________________________
5-4

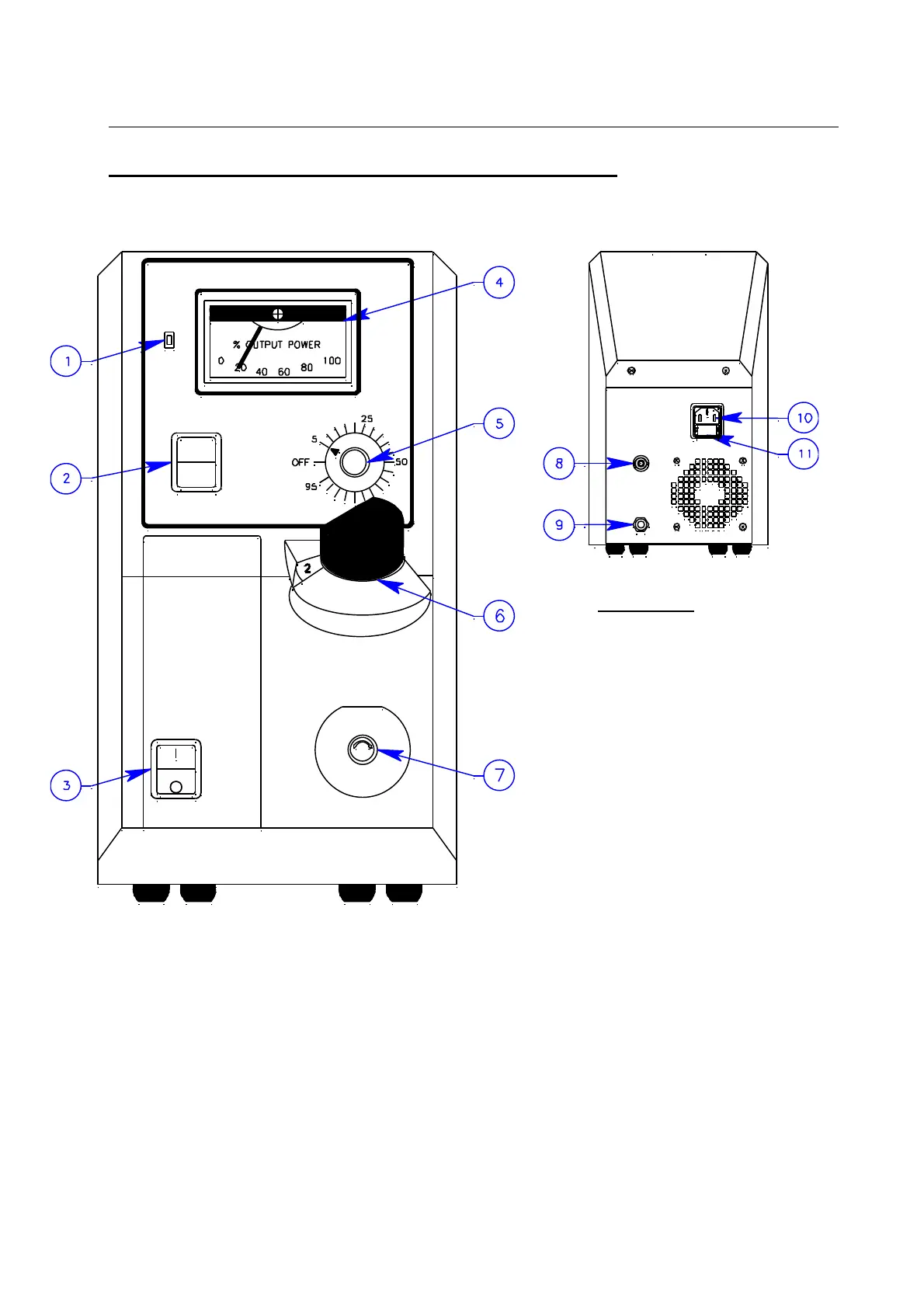

XL2010 & XL2015 CONTROLS AND INDICATORS DIAGRAM
Control Index
1. Overload Indicator
2. Tuning Switch
3. Power Switch
4. Power Output Display
5. PULSAR
TM
Cycle Timer
(XL2015 Only)
6. Amplitude Control Knob
7. Tuning Control Knob
8. SHV Cable Connector
9. Footswitch Jack
10. Power Receptacle
11. Fuse (10 amp/115V)
(8 amp/220V)
OVERLOAD
PULSAR
DUTY
CYCLE
%/1 sec
TUNE
TUNE
