Mistral 6TTR-10TTR – Pag. 50
WATER CONNECTION
It is advisable to use softened water with hardness of 5°f. If the water network pressure is not within
the range indicated below, a pressure reducer must be installed upstream.

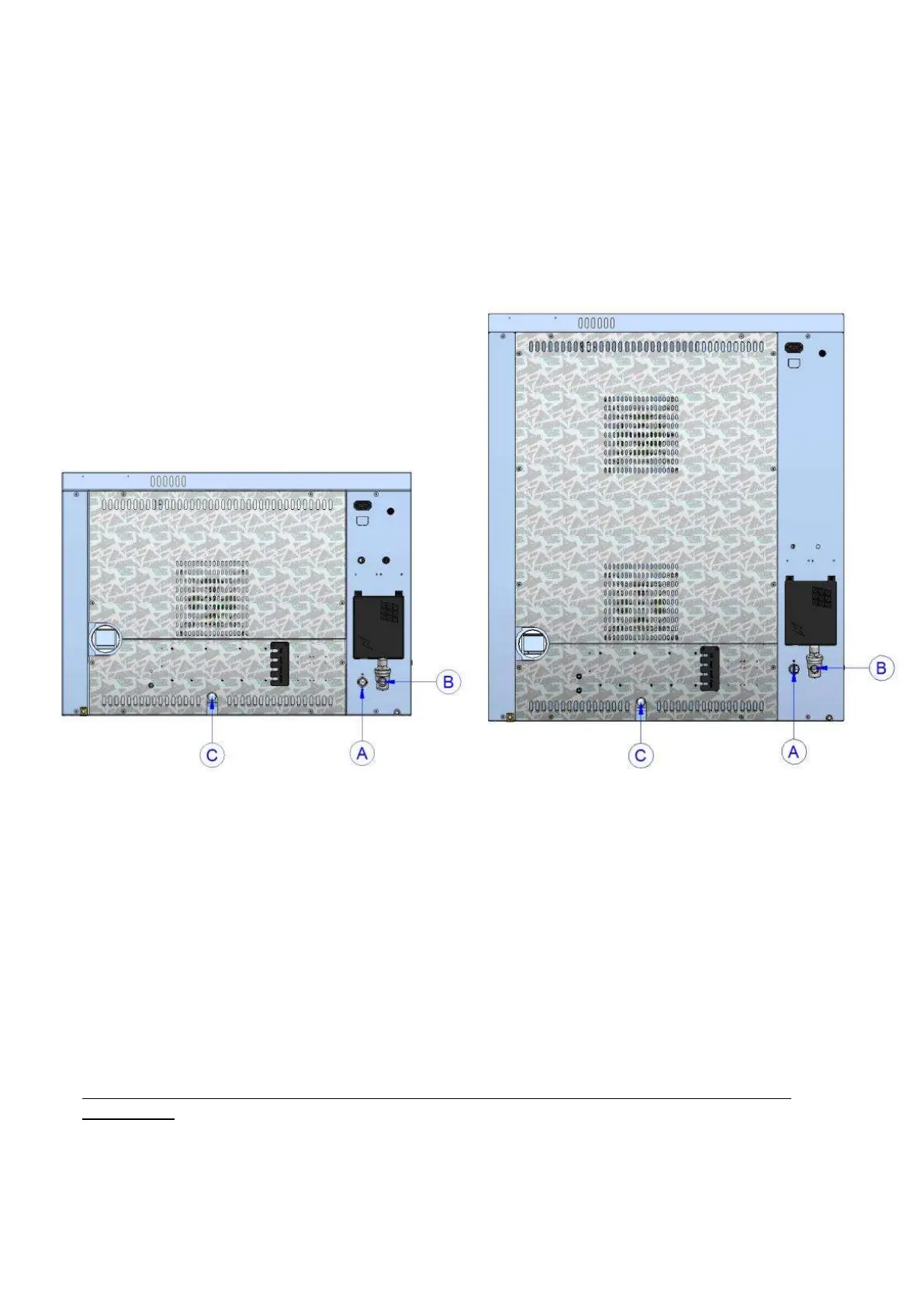

A. Water inlet – ¾”
B. Inlet water for washing system - ¾”
C. Water drain – Ø 30mm
Attention:
The pressure of the inlet water must be between 1 and 3 Bar, and the temperature must not
exceed 30°.
