Packaging Sizes and Weights

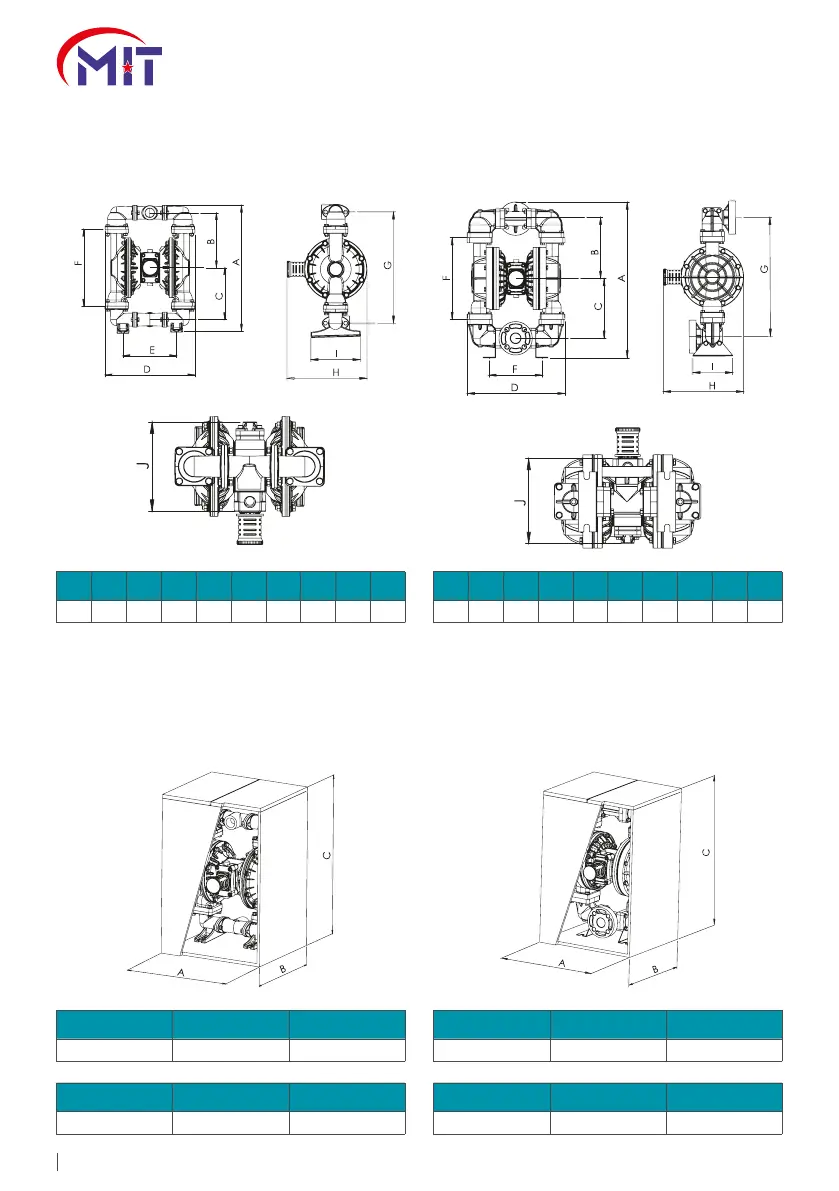

As it is seen in the following gure, the diaphragm pump is connected to pump xing board from its
stands via bolt and nut. Lean of the pump is prevented during transport.
Scaling With Metal Body Scaling With Plastic Body
A B C D E F G H I J
605 260 245 425 253 363 505 363 224 253
A B C D E F G H I J
703 276 269 440 242 368 538 363 180 254
Plastic BodyMetal Body
Pump Weight Package Weight Gross Weight
24,3 kg 2 kg 26,3 kg
Pump Weight Package Weight Gross Weight
19,68 kg 2 kg 21,68 kg
A B C
440 340 740
A B C
440 340 740
MIT 4000 Technical Information
