MIT 160

18

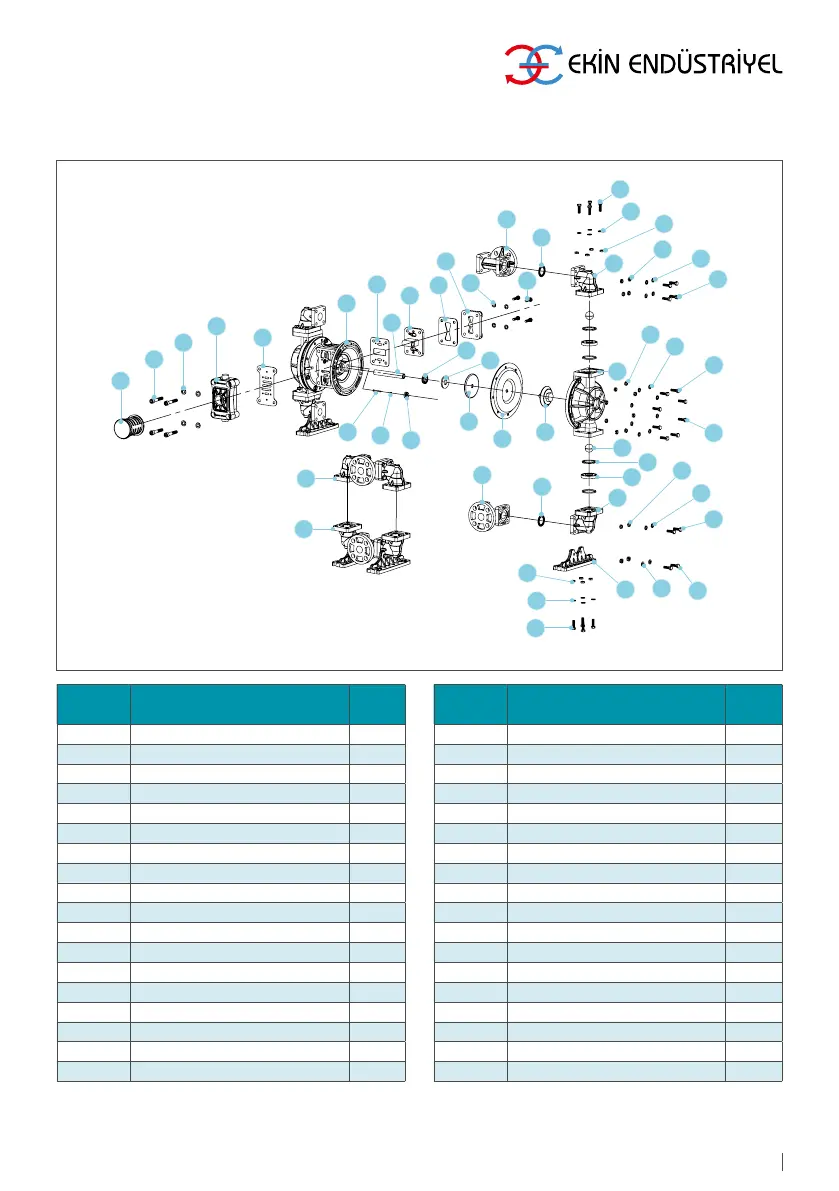

Spare Part Drawing (Plastic)
14
15
12
3
9
22
25
13
24
8
23
2B
2C
2A
27
23
27
23
29
29
4
28
27
23
23
29
26
5
6
2C
2
1
6A
1A
30
29
23
27
1B
23
28
7
18
17
19
16
11
10
21
20
26
2B
Item
No
Description Piece
1 Suction Line 1
1A Elbow, Suction 1
1B Bracket, Mounting 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 8
3 Main Body 1
4 Chamber Outhor 2
5 Ball, Check 4
6 Ball Seat 4
6A Gasket, Ball Seat 8
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plunger 2
12 Cap, Air Inlet 1
Item
No
Description Piece
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Innet Diaphragm 2
18 Cap, Air Inlet 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23 Washer M8 Stainless 100
24 Washer M10 Stainless 4
25
Capscrew Soc Head M10x60 Stainless
4
26 Capscrew 8x45 Stainless 8
27 Capscrew 8x40 Stainless 28
28 Capscrew 8x50 Stainless 16
29 Nut Hex M8 Stainless Fiber 32
30 Nut Hex M8 Stainless 16
