MIT 160

17

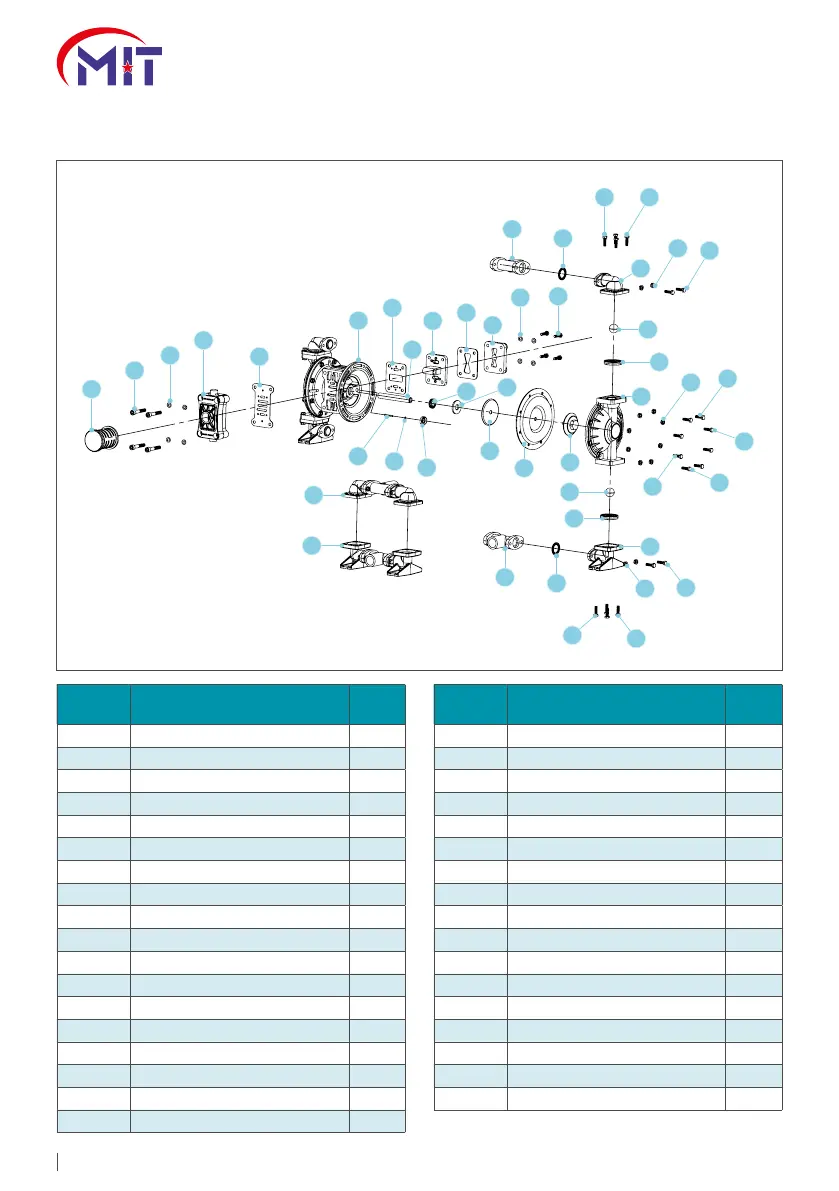

Spare Part Drawing (Metal)
14
15
24
31
3
9
22
23
13
30
8
12
2B
2C
2A
27 28
29
27
7
4
5
6
18
25
17
19
16
11
10
21
20
2B
2C
1A
28
27
29
27
2
1
6
5
29
29
29
24
Item
No
Description Piece
1 Suction Line 1
1A Elbow, Suction 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 4
3 Main Body 1
4 Chamber Outhor 2
5 Ball, Check 4
6 Ball Seat 4
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plunger 2
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
Item
No
Description Piece
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23
Capscrew Soc Head M10x60 Stainless
4
24 Capscrew 8x45 12
25 Capscrew 8x40 4
26 Capscrew 8x35 4
27 Capscrew 8x30 16
28 Capscrew 8x25 8
29 Nut Hex Flange M8 24
30 Washer M10 Stainless 4
31 Washer M8 Stainless 4
