MIT 160

21
2
1
2B
2C
1B
19
16
7
10
21
20
27
4A
22
23
24
13
8
14
15
3
9
26
25
2B
2C
3A
28
29
32
33
30
32
2A
6A
6A
1A
6
5
6
5
4
22
29
33
32
29
28
12
18
17
11
29
31
32

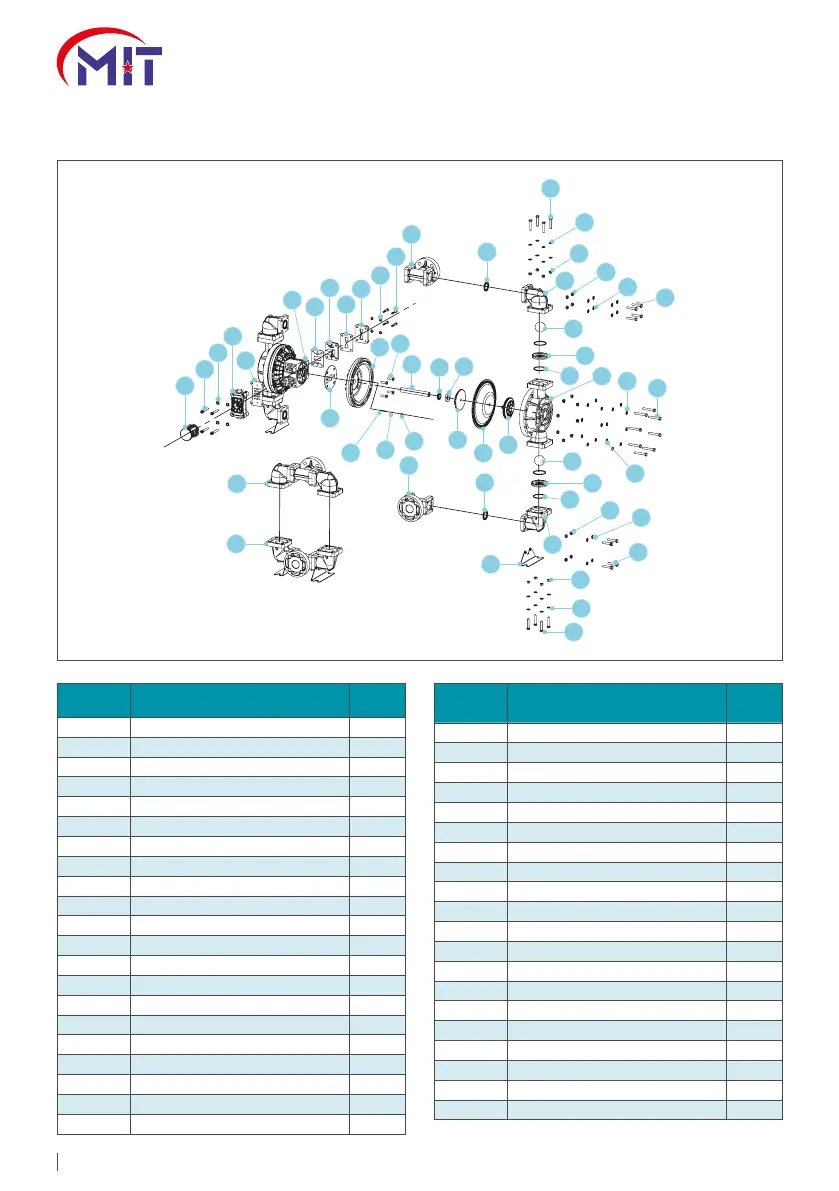

Spare Part Drawing (Plastic)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
1B Bracket, Mounting 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 4
3 Main Body 1
3A Gasket, Inner Chamber 2
4 Chamber Outhor 2
4A Chamber, Inner 2
5 Ball, Check 4
6 Ball Seat 4
6A Gasket, Ball Seat 8
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plunger 2
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
Item No Desctription Piece
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Cap, Air Inlet 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23
Capscrew Soc Head M10x60 Stainless
4
24 Washer M10 Stainless 4
25 Capscrew M8x45 4
26 Washer M8 Stainless 4
27
Capscrew Soc Head M10x25 Stainless
8
28 Capscrew M10x50 Stainless 16
29 Washer M10 Stainless 94
30 Capscrew M10x55 Stainless 16
31 Capscrew M10x57 Stainless 16
32 Nut Hex M10 Stainless Fiber 32
33 Nut Hex M10 Stainless 16
