MIT 5600 Technical Information
Packaging Sizes and Weights
As it is seen in the following gure, the diaphragm pump is connected to pump xing board from its
stands via bolt and nut. Lean of the pump is prevented during transport.

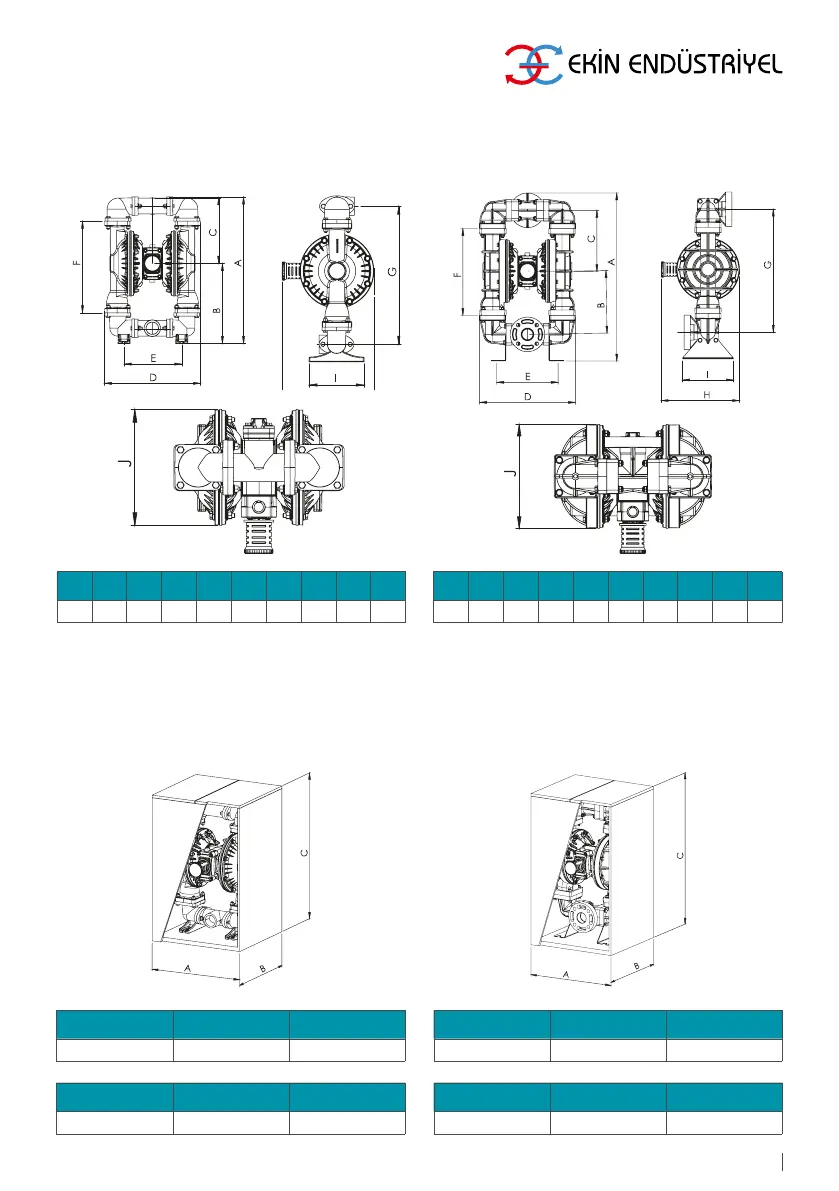

Scaling With Metal Body Scaling With Plastic Body
A B C D E F G H I J
669 365 299 438 263 418 556 370 223 298
A B C D E F G H I J
790 294 288 450 288 408 584 370 240 298
Plastic BodyMetal Body
Pump Weight Package Weight Gross Weight
31,266 kg 2 kg 33,266 kg
Pump Weight Package Weight Gross Weight
25,33 kg 2 kg 27,33 kg
A B C
475 475 755
A B C
350 450 830
