MIT 160

23

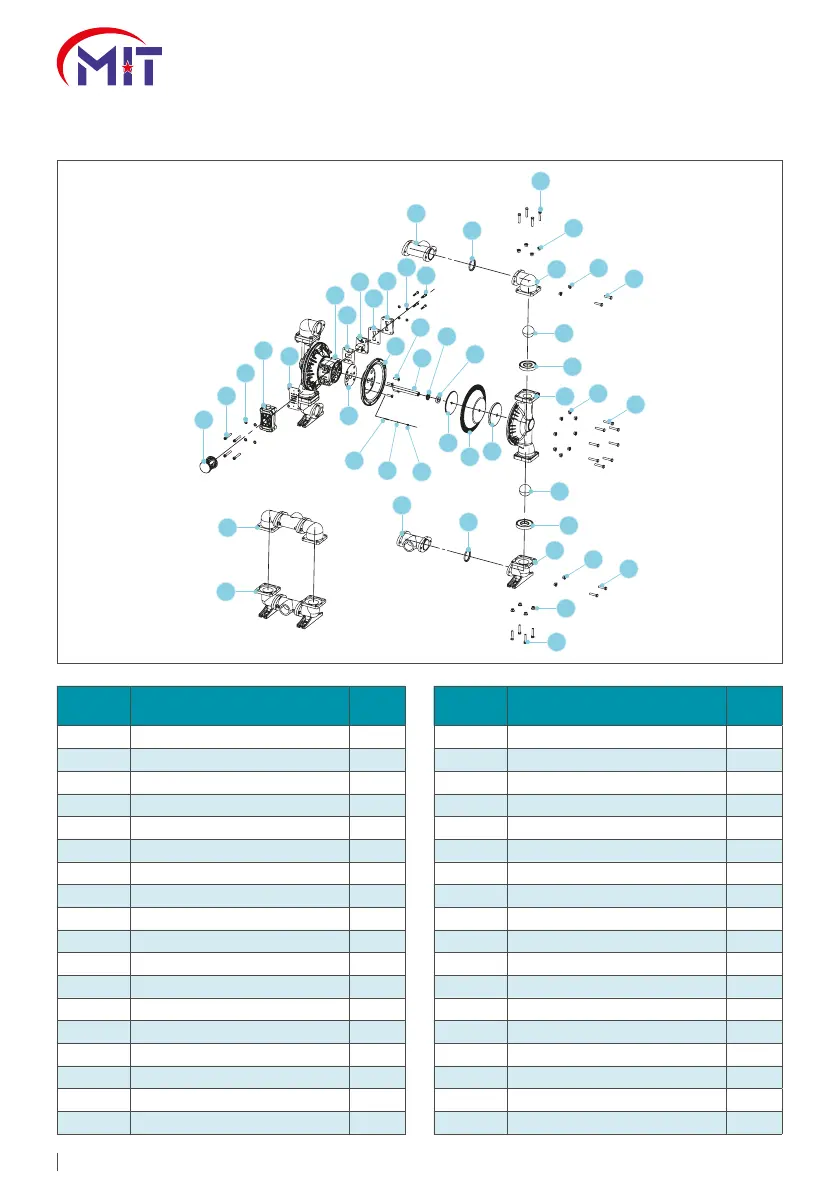

Spare Part Drawing (Metal)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 4
3 Main Body 1
3A Gasket, Inner Chamber 2
4 Chamber Outhor 2
4A Chamber, Inner 2
5 Ball, Check 4
6 Ball Seat 4
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plunger 2
12 Cap, Air Inlet 1
Item No Desctription Piece
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23
Capscrew Soc Head M10x60 Stainless
4
24 Washer M10 Stainless 4
25 Capscrew 8x45 4
26 Washer M8 Stainless 4
27
Capscrew Soc Head 10x25 Stainless
8
28 Capscrew 10x50 32
29 Capscrew 10x545 8
31 Nut Hex Flange M10 40
2
1
28
30
2B
2C
19
3A
7
10
21
20
27
2A
1A
2B
2C
28
31
30
30
28
25
31
29
6
5
4
6
5
22
23
13
24
8
14
15
3
9
26
25
4A
11
16
17
18
12
