MIT 160

24
2
1
28
2B
1B
2C
30
29
28
7
6
5
1A
6
5
4
28
29
30
29
28
30
2A
29
28
30
28
29
30
2B
2C
14
15
3
9
22
23
13
24
8
19
16
3A
10
21
25
26
20
27
4A
30
18
17
11
12
29

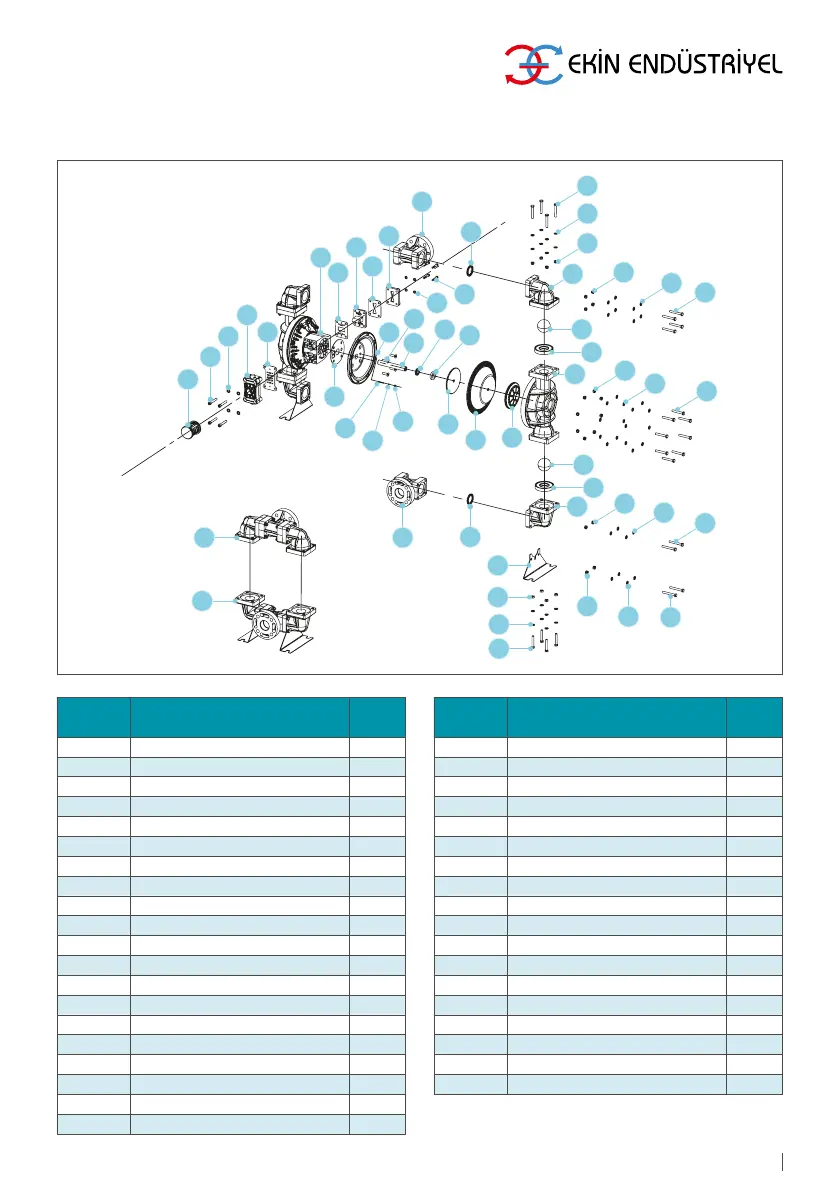

Spare Part Drawing (Plastic)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
1B Bracket, Mounting 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 4
3 Main Body 1
3A Gasket, Inner Chamber 2
4 Chamber, Outhor 2
4A Chamber, Inner 2
5 Ball, Check 4
6 Ball Seat 4
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plumber 2
12 Cap, Air Inlet 1
12 Cap, Air Inlet 1
Item No Desctription Piece
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Cap, Air Inlet 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23
Capscrew Soc Head M10x60 Stainless
4
24 Washer M10 Stainless 4
25 Capscrew 8x45 Stainless 4
26 Washer M8 Stainless 4
27
Capscrew Soc Head 10x25 Stainless
8
28 Capscrew 10x70 Stainless 48
29 Washer M10 Stainless 96
30 Nut Hex M10 Stainless Fiber 48
