Packaging Sizes and Weights

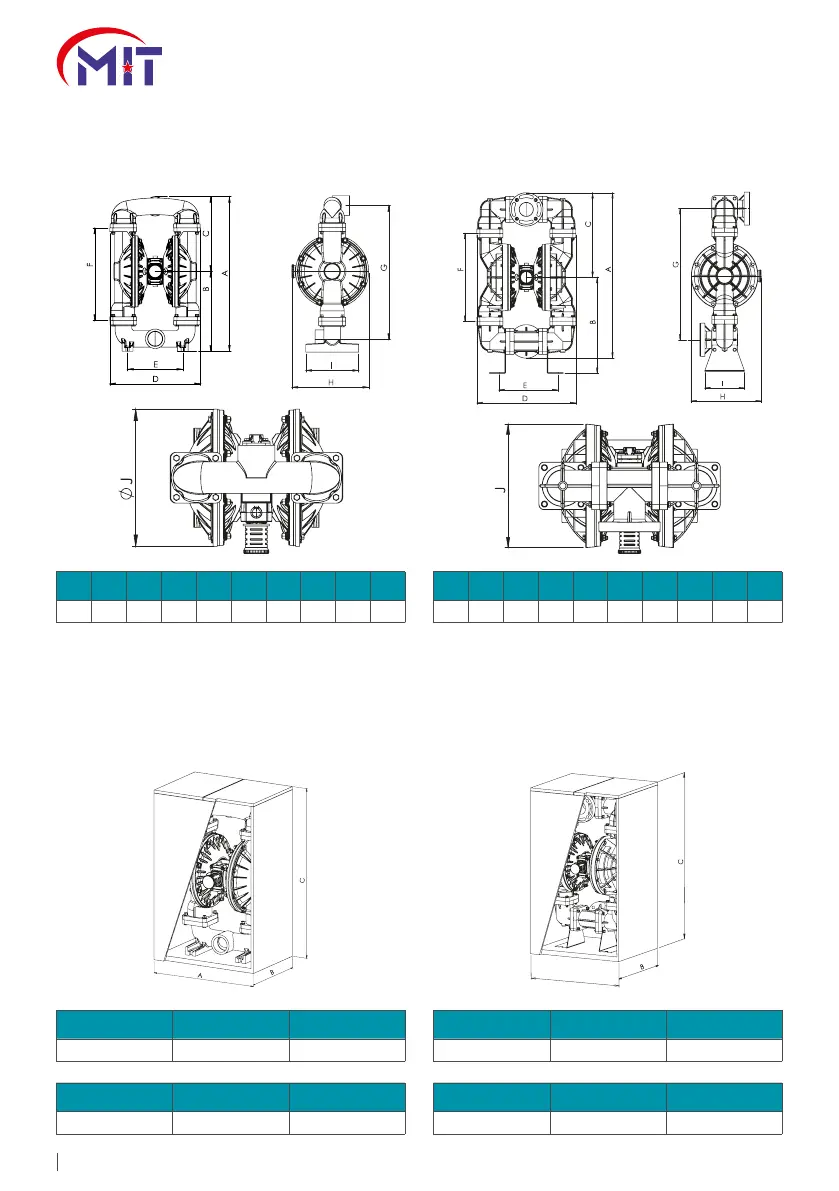

As it is seen in the following gure, the diaphragm pump is connected to pump xing board from its
stands via bolt and nut. Lean of the pump is prevented during transport.
Scaling With Metal Body Scaling With Plastic Body
A B C D E F G H I J
858 443 415 504 306 514 735 421 290 40
A B C D E F G H I J
995 576 508 594 353 528 794 424 240 404
Plastic BodyMetal Body
Pump Weight Package Weight Gross Weight
54,83 kg 2,5 kg 57,33 kg
Pump Weight Package Weight Gross Weight
49 kg 2,5 kg 51,5 kg
A B C
540 460 930
A B C
600 450 1130
MIT 8900 Technical Information
