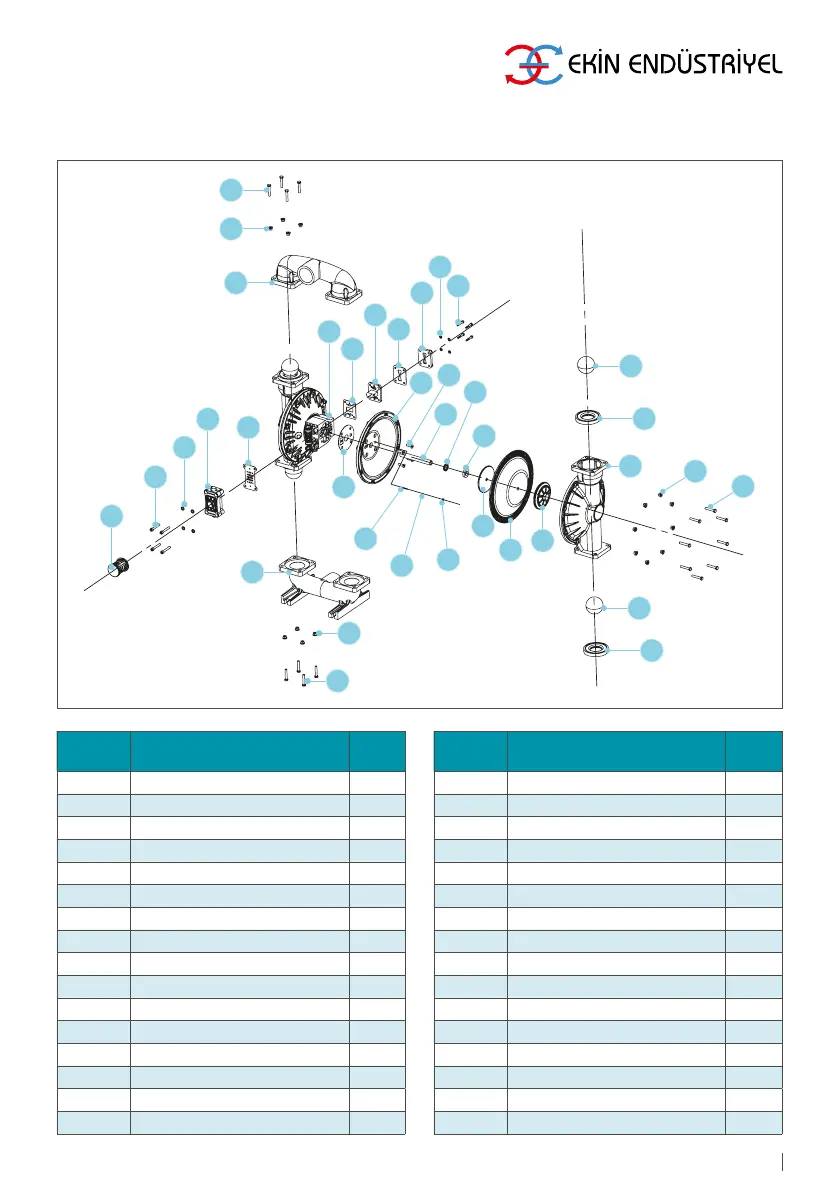

Spare Part Drawing (Metal)
Item No Desctription Piece
1 Suction Line 1
2 Discharge Line 1
3 Main Body 1
3A Gasket, Inner Chamber 2
4 Chamber, Outhor 2
4A Chamber, Inner 2
5 Ball, Check 4
6 Ball Seat 4
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plumber 2
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
Item No Desctription Piece
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Plunger, Actuator 2
20 Srod, Diaphgram 1
21 Oil Seal 2
22 Mufer 1
23
Capscrew Soc Head M10x60 Stainless
4
24 Washer M10 Stainless 4
25 Capscrew 8x45 4
26 Washer M8 Stainless 4
27
Capscrew Soc Head 10x25 Stainless
8
28 Capscrew 10x50 16
29 Capscrew 10x545 16
30 Nut Hex Flange M10 32
2
1
19
16
3A
10
21
20
27
4A
7
30
28
5
4
6
5
6
30
28
29
30
3
9
22
23
13
24
8
14
15
25
26
11
17
18
12
