Mitel 5330 IP User Manual

5330/5340 IP Phones – User Guide
13
USING YOUR DEFAULT PHONE WINDOW AND KEYS
The 5340 and 5330 IP Phone default phone windows and keys are shown and described below.
The Phone window provides access to programmable keys and the main phone interface.
Getting Started with Your Phone
When you receive your phone, you need to program features and applications. Press the blue
Applications key to access your phone’s applications. You can then program your phone’s
settings, your contact list using People (5340 IP Phone), Call Forwarding and so forth. See Using
Your Phone Applications.

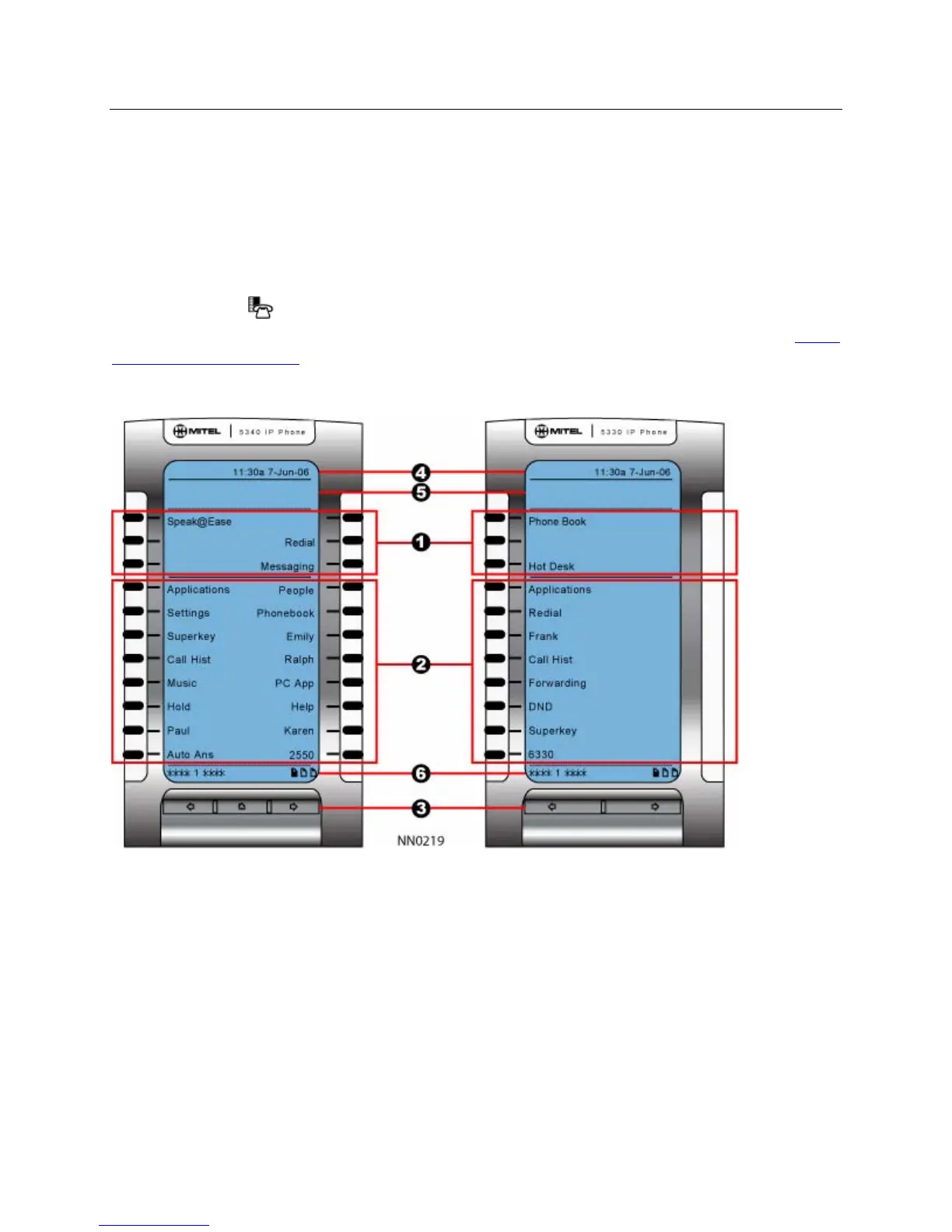

5340 and 5330 IP Phone Window

Mitel 5330 IP Specifications

General

Protocols	SIP, MiNet
Programmable Keys	24 programmable keys
Headset Port	Dedicated headset port
Ethernet Ports	Two 10/100 Mbps Ethernet ports
Power	IEEE 802.3af Power over Ethernet (PoE)
Codecs	G.711, G.729
Audio	Full-duplex hands-free speakerphone
Weight	2.2 lbs (1 kg)
