Mitel 6930 SIP System Manual

Installation

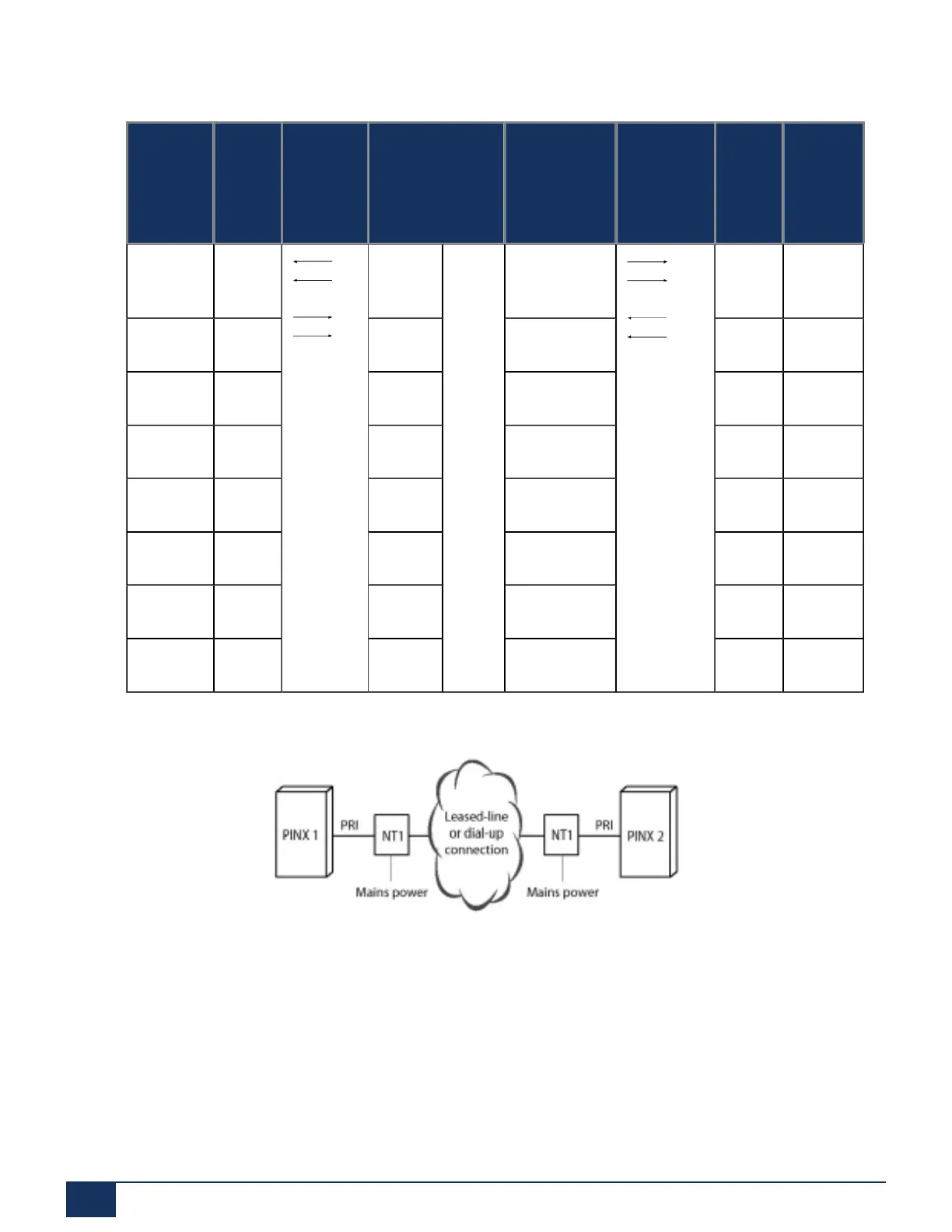

Table 41: Cabling for primary rate access PRI, networked with transmission equipment
RJ45Pin PRI
PINX 1
signal
Cable
cores,
straight
patch
cable
Transmission
equipment signal
Transmission
equipment
signal
Cable cores
Straight
patch cable
PRI
PINX 2
signal
RJ45Pin
1 RxA RxA RxA RxA
1
2 RxB RxB RxB RxB 2
3 — — 3
4 TxA TxA TxA TxA 4
5 TxB TxB TxB TxB 5
6 — — 6
7 — — 7
8 — — 8
Figure 33: Primary rate access PRI, networked with leased-line or dial-up connection
Release 7.1
119 System Manual for Mitel SMB Controller
