Installation
Fan-out panels can also be offset, e.g. as floor distributors.
Note:
The fan-out panel FOP must be installed in a 19” rack.
Connection
The diagram below shows the connection of an interface card 8DSI on slot IC1 with terminals. With this
card and the appropriate wiring adapter 2 four-fold assigned RJ45 sockets are available on the front panel
on interface 1.1 and 1.2 while the 2 remaining RJ45 sockets 1.3 and 1.4 are not used. The 2 four-fold
assigned sockets are looped via the front panel of the fan-out-panel connector (FOP) strip using 2 patch
cables.

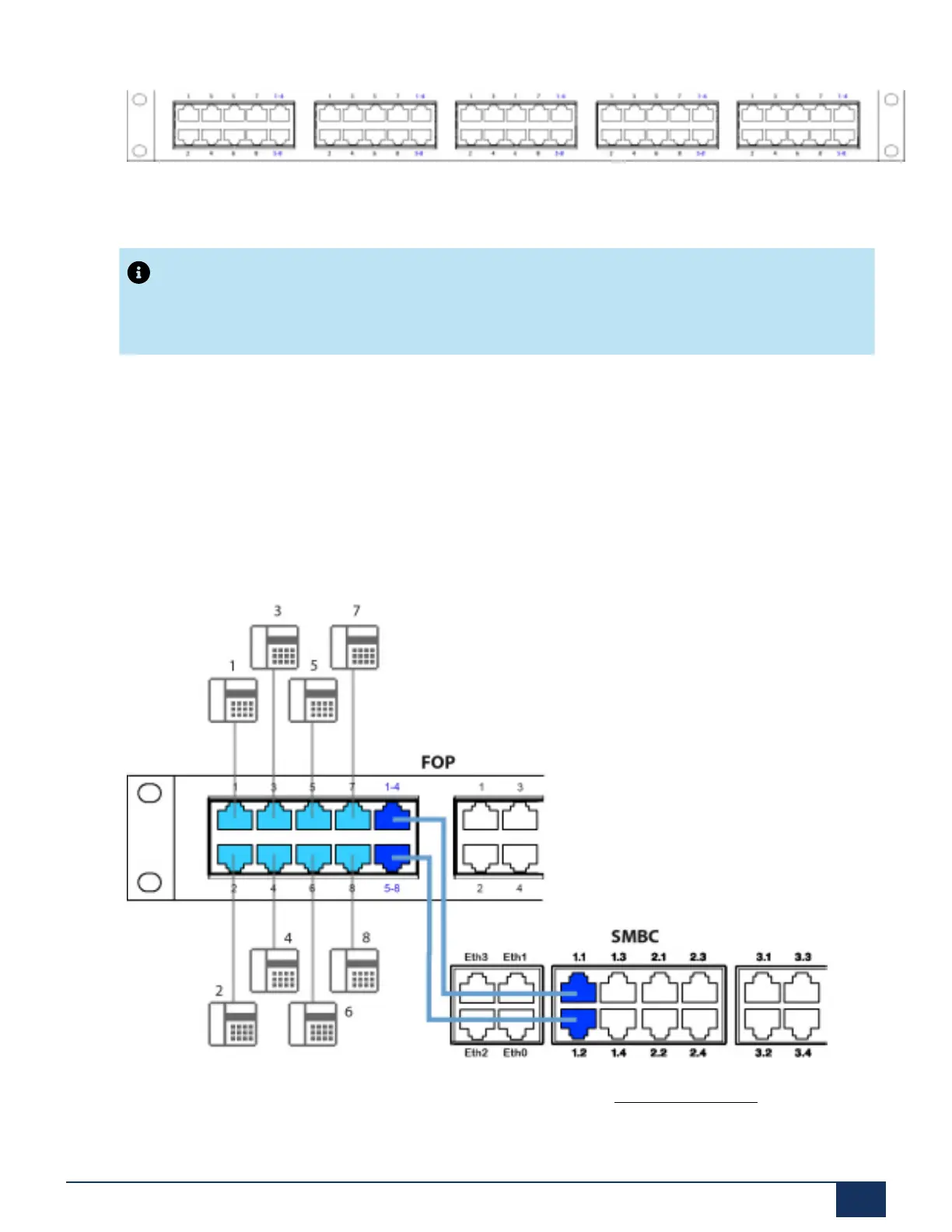

Figure 57: Connection of four-fold assigned sockets via FOP connector strip
The patch cables are available separately in lengths of 1 and 2 m (see Equipment Overview).
Release 7.1
System Manual for Mitel SMB Controller 148
