Mitsubishi Electric MELSEC FX Series User Manual

FX communication
Wiring 3
3-6

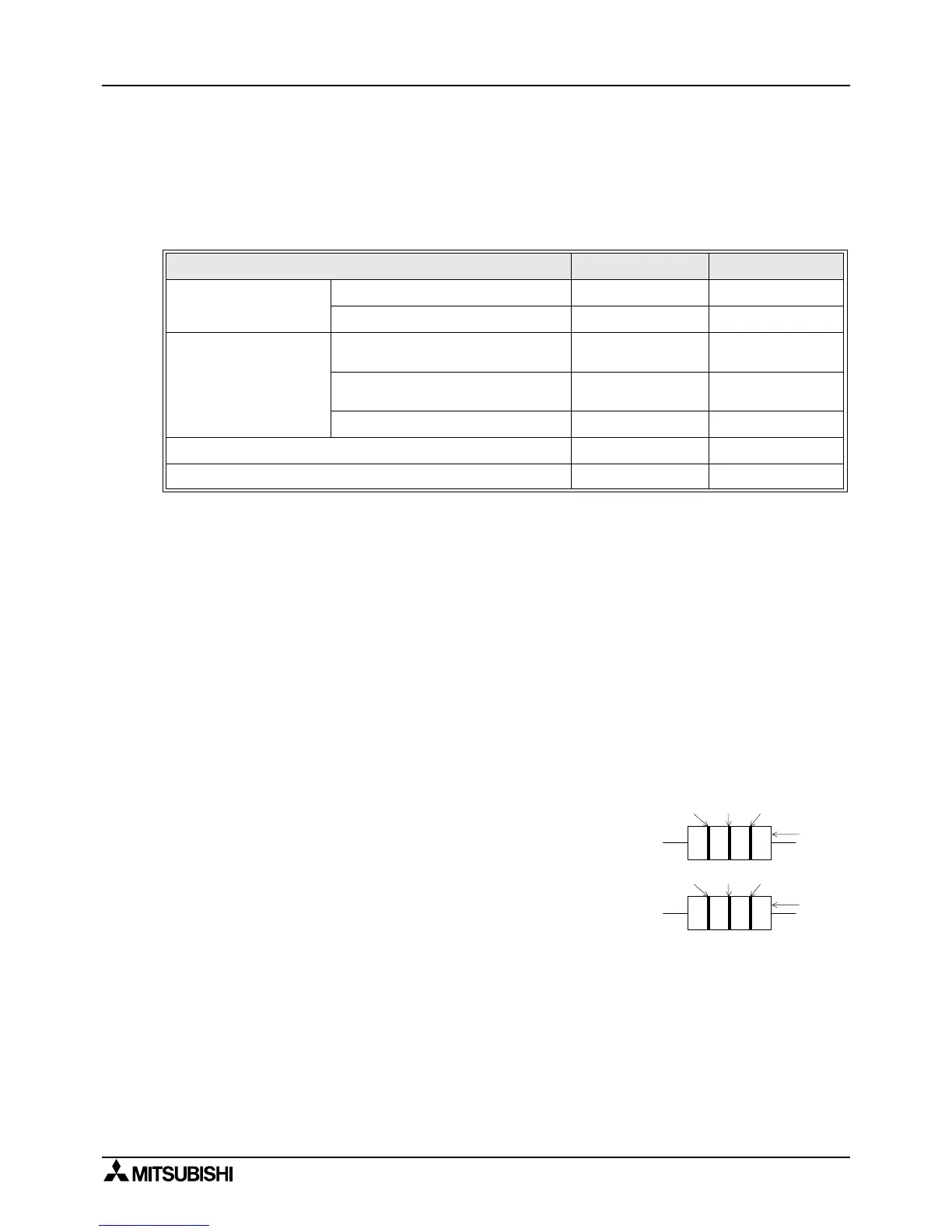

3.3 Using RS-485 Interface
3.3.1 Wiring Selection
The wiring of RS-485 can either be one-pair or two-pair. The wiring method is decided according
to application usage. Please select the wiring method from the table below.
&
…
Recommendation,
'
…
OK,
×…
Cannot use
Note:
*1 When this product is added to the system, please match the wiring to the existing method of
the system.
*2 When using an FX
2N
-485-BD with this wiring method, remember to take account of/or ignore
the “echo” of the commands sent from the FX
2N
programmable controller.
*3 Please use the FX
2N
programmable controller and FX
2N
-485-BD together.
Full-duplex combination cannot be achieved with other configurations.
*4 For wiring parallel link, see section 2.4.
3.3.2 Terminal Resistor
A terminal resistor must be used at both ends of the communication line as described in section
2.3.3 and 2.3.4.
Usage One-pair wiring Two-pair wiring
No protocol
(Use RS instruction) *1
Half-duplex communication
&
*2
'
Full-duplex communication *3
×
'
Dedicated protocol
(Use computer link)*1
It is necessary to set the message
wait time to 70 ms or less.
×
'
It is not necessary to set the
massage wait time to 70 ms or less.
&
*2
'
Use the on-demand function
×
'
Parallel link *4
&
'
N:N network
'
×
Orange Orange Brown
Brown Brown Brown
330
Ω
1/4 W
110
Ω
1/2 W
1 )In the case of two-pair wiring, connect the terminal resistor
(330
Ω
, 1/4W) between terminals SDA and SDB and between
terminals RDA and RDB. Use the resistors offered as
accessories with the product.
2 )In the case of one-pair wiring, connect the terminal resistor
(110
Ω
, 1/2W) between terminals RDA and RDB. Use the
resistors offered as accessories with the product.
