4 - 10
4 INSTALLATION AND WIRING
4.1.4 Instructions for mounting of the battery holder unit
QD
When mounting the battery holder unit (Q170DBATC) to an enclosure or similar, fully
consider its mounting position and orientation.
(1) Module mounting position
Mount the battery holder unit within 50cm(1.64ft.) or less (Battery cable length:
50cm(1.64ft.)) from the Motion controller.
(2) Mounting surface
Mount the battery holder unit on a flat surface.

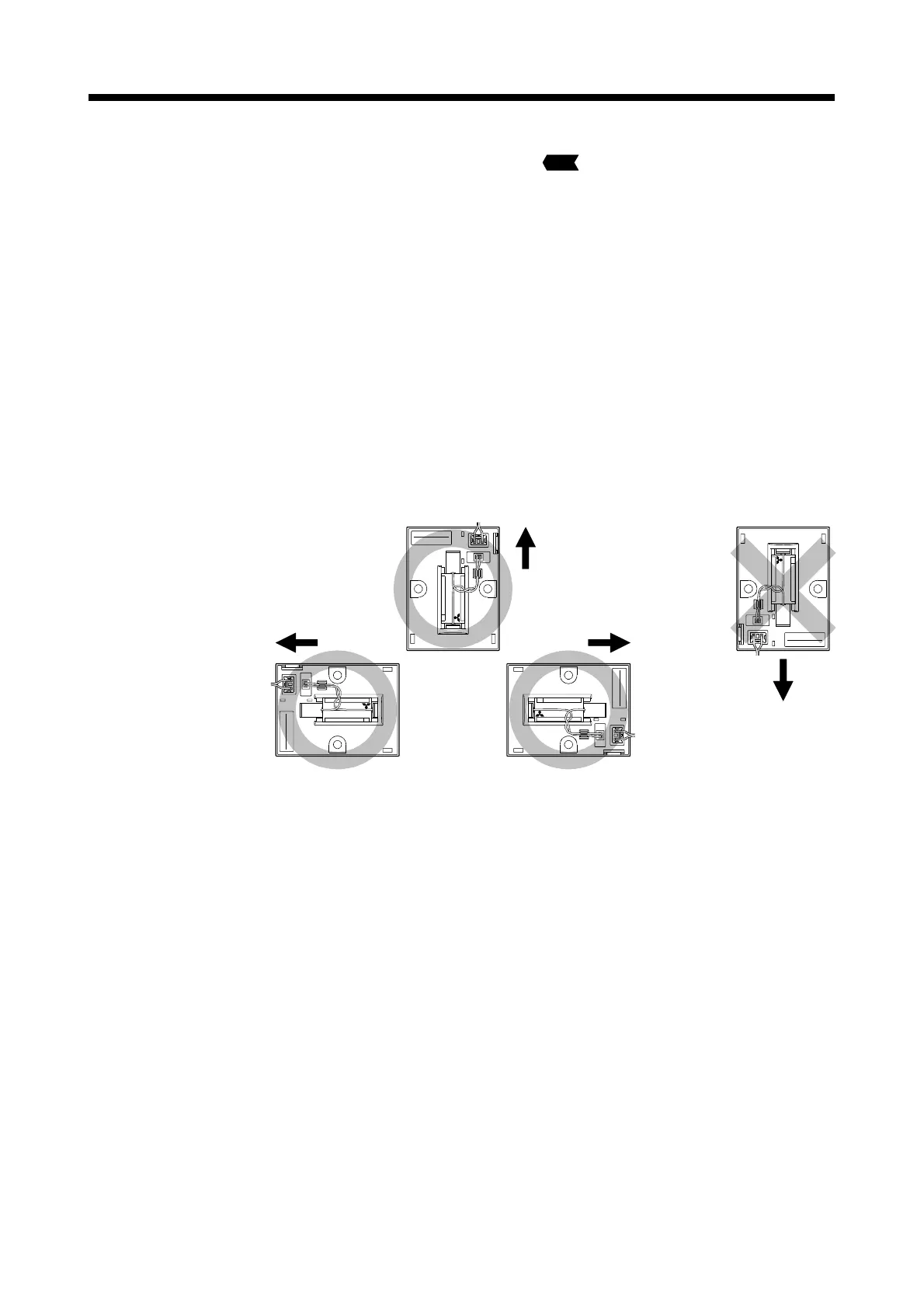

(3) Module mounting orientation
Do not mount the battery holder unit downward. Doing so may lead to battery
liquid to leak at damage to the battery.
(Correct) (Wrong)
BATTERY
CPU
Q170DBATC
MITSUBISHI
LITHIUM BATTERY
BATTERY
CPU
Q170DBATC
MITSUBISHI
LITHIUM BATTERY
BATTERY
CPU
Q170DBATC
MITSUBISHI
LITHIUM BATTERY
BATTERY
CPU
Q170DBATC
MITSUBISHI
LITHIUM BATTERY
