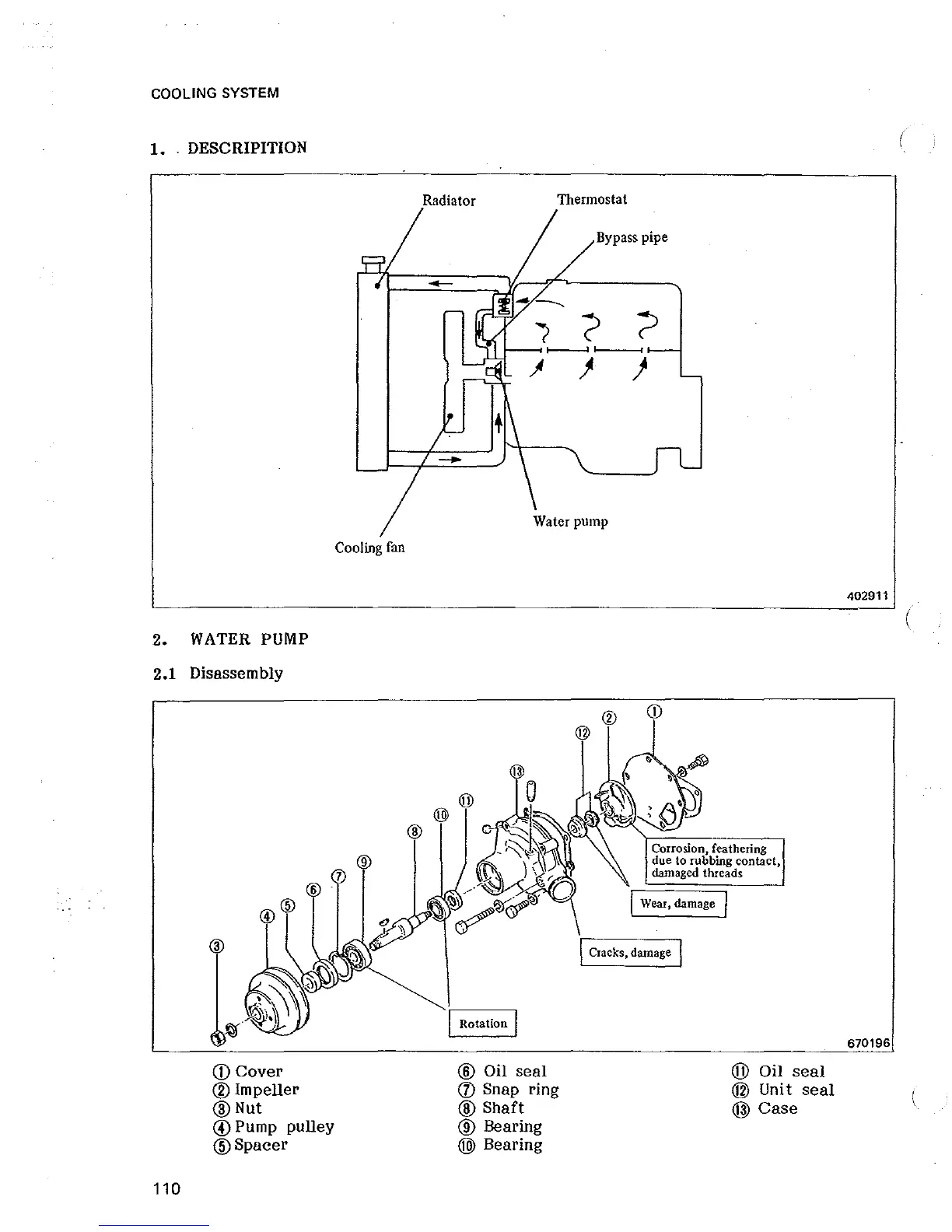

COOLING SYSTEM
1. . DESCRIPITION
2. WATER PUMP
2.1 Disassembly
110
CD Cover
® Impeller
@Nut
@ Pump pulley
@Spacer
Cooling fan
®
Radiator
Thennostat
Bypass pipe
Water pump
@
@
I Rotation I
® Oil seal
(J) Snap ring
® Shaft
® Bearing
@> Bearing
® CD
Corrosion. feathering
due to rubbing contact.
damaged threads
@ Oil seal
@ Unit seal
@ Case
(
402911
670196
