Mitsubishi Heavy Industries BS3G Service Manual

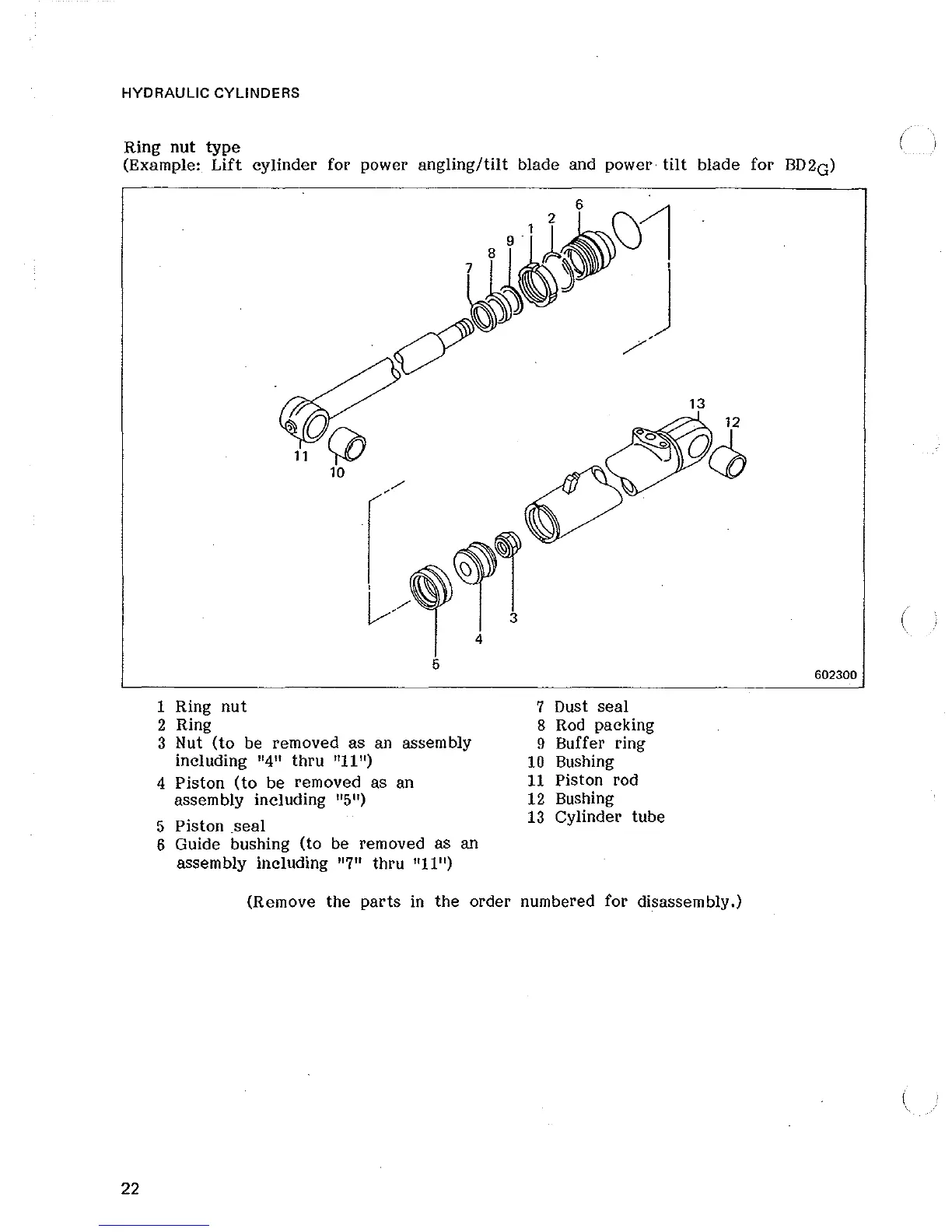

HYDRAULIC CYLINDERS
Ring nut type
(Example: Lift cylinder for power angling/tilt blade and power tilt blade for BD2G)
22
1 Ring nut
2 Ring
3 Nut
(to be removed as an assembly
including
"4" thru "11")
4 Piston (to be removed as an
assembly including
"5")
5 Piston .seal
6 Guide bushing (to be removed
as an
assembly including "7" thru "11")
7 Dust seal
8 Rod packing
9 Buffer ring
10 Bushing
11 Piston rod
12 Bushing
13 Cylinder tube
(Remove
the parts in the order numbered for disassem bly.)
602300
(
