OPERimNGPRINCIPLE
2
Tilt cylinder
Angling cylinder
GENERAL DESCRIPTION
Angling cylinder Lift cylinder
Lift cylinder
Lift
valve plunger
Main relief
valve
B3
A3'
B2·
A2
B1
A1
180 kif/cm' (2560 psi) {l7.7 MPaJ
Hydraulic pump
Angling valve plunger
Check
valve
Tilt valve plunger
Makeup valve
Check
valve
Lll--- Hydraulic Hlter
602195

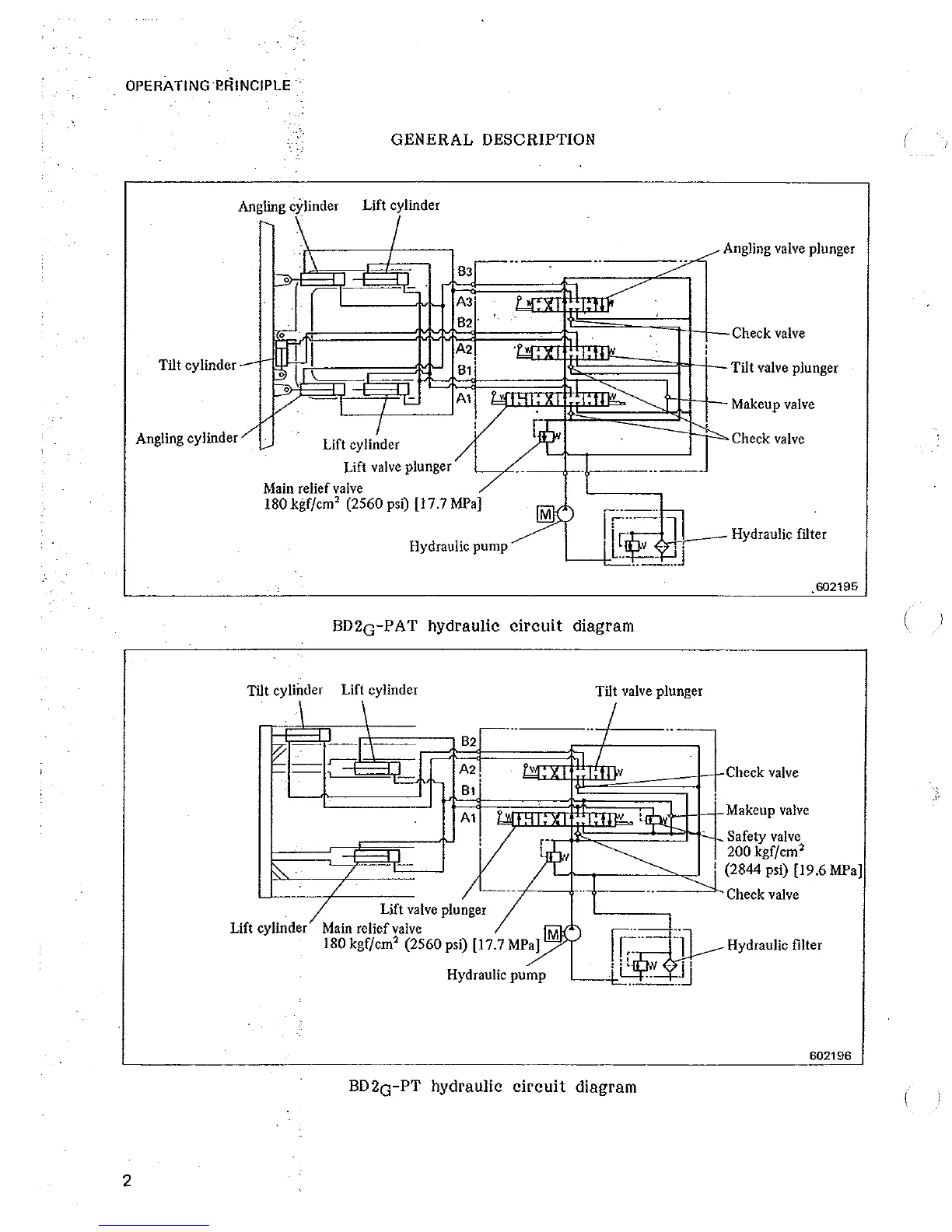

BD2a-PAT hydraulic circuit diagram
Tilt cylinder Lift cylinder
Lift
valve plunger
Tilt valve plunger
v
v
Check valve
Makeup valve
Safety valve
200kgf/cm'
, (2844 psi) [19.6 MPaJ
+---+ -J.--- ---2:", Check valve
Lift cylinder
Main relief valve M
180kgf/cm' (2560 psi) [17.7 MPaJ
Hydraulic filter
Hydraulic pump
602196
BD2a-PT hydraulic circuit diagram
