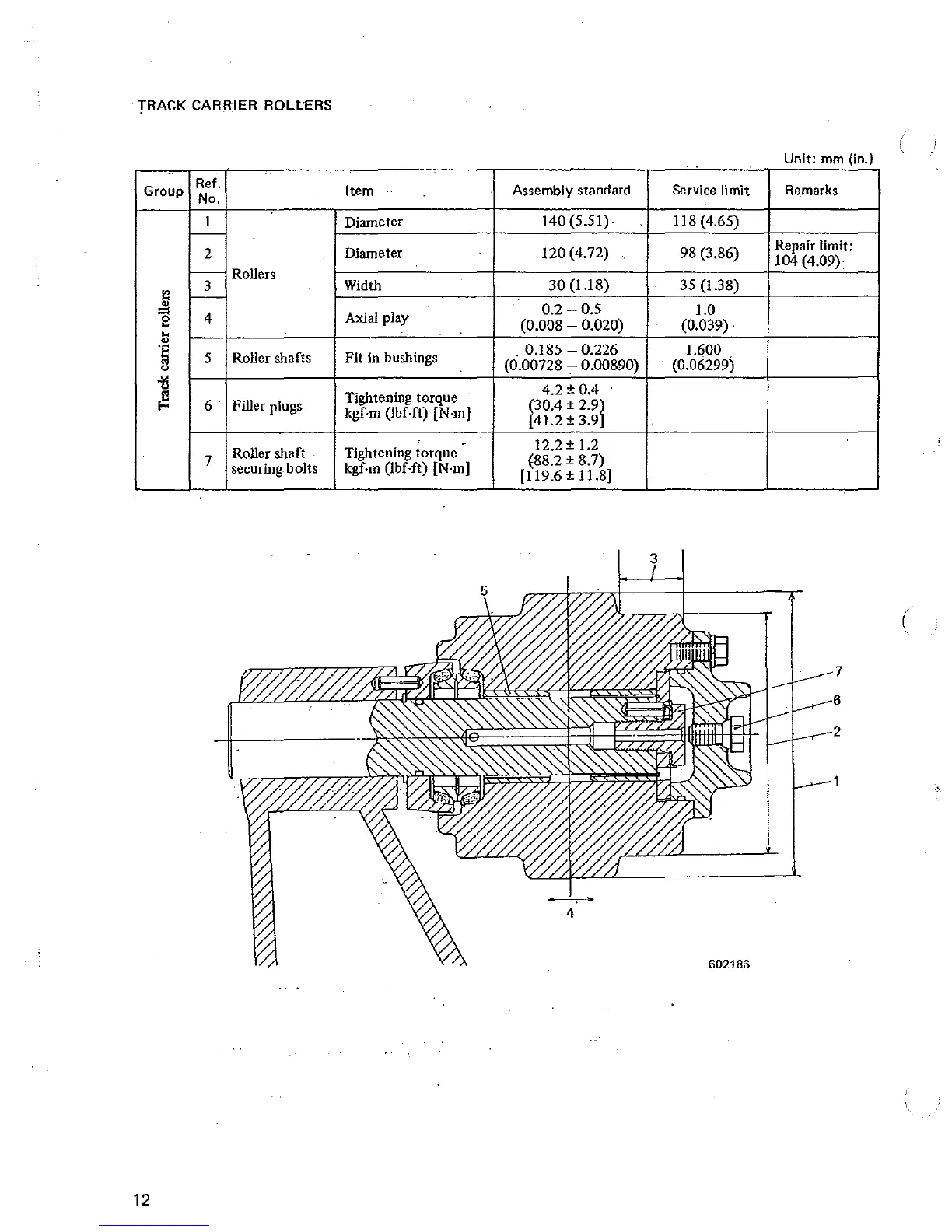

TRACK CARRIER ROLlERS
(
Unit: mm (in.)
..
Remarks
Ref.
Item
Assembly standard
Service limit
Group
No.
I
Diameter
140 (5.51) 118 (4.65)
r-----
120 (4.72) 98 (3.86)
Repair limit:
2
Diameter
..
104 (4.Q9)
~
Rollers
Width
30 (1.18) 35 (1.38)
3
i:l
r--
0.2
0.5
1.0
::ll
e
4
Axial play
(0.008 - 0.020)
(0.039)
.
II
. 0.185 0.226 1.600
.~
5
Roller shafts
Fit in bushings
(0.00728 - 0.00890) (0.06299)
<.>
-a
Tightening torque .
4.2 + 0.4
~
6 Filler plugs
(30.4 ± 2.9~
kgf·m (lbf·ft) [N·m)
[41.2 + 3.9
.
12.2 + 1.2
7
Roller shaft
Tightening torque
~88.2 ± 8.7)
securing bolts
kgf·m (lbHt) [N·m)
[119.6 ± 11.8)
(
12
