Mitsubishi Heavy Industries BS3G Service Manual

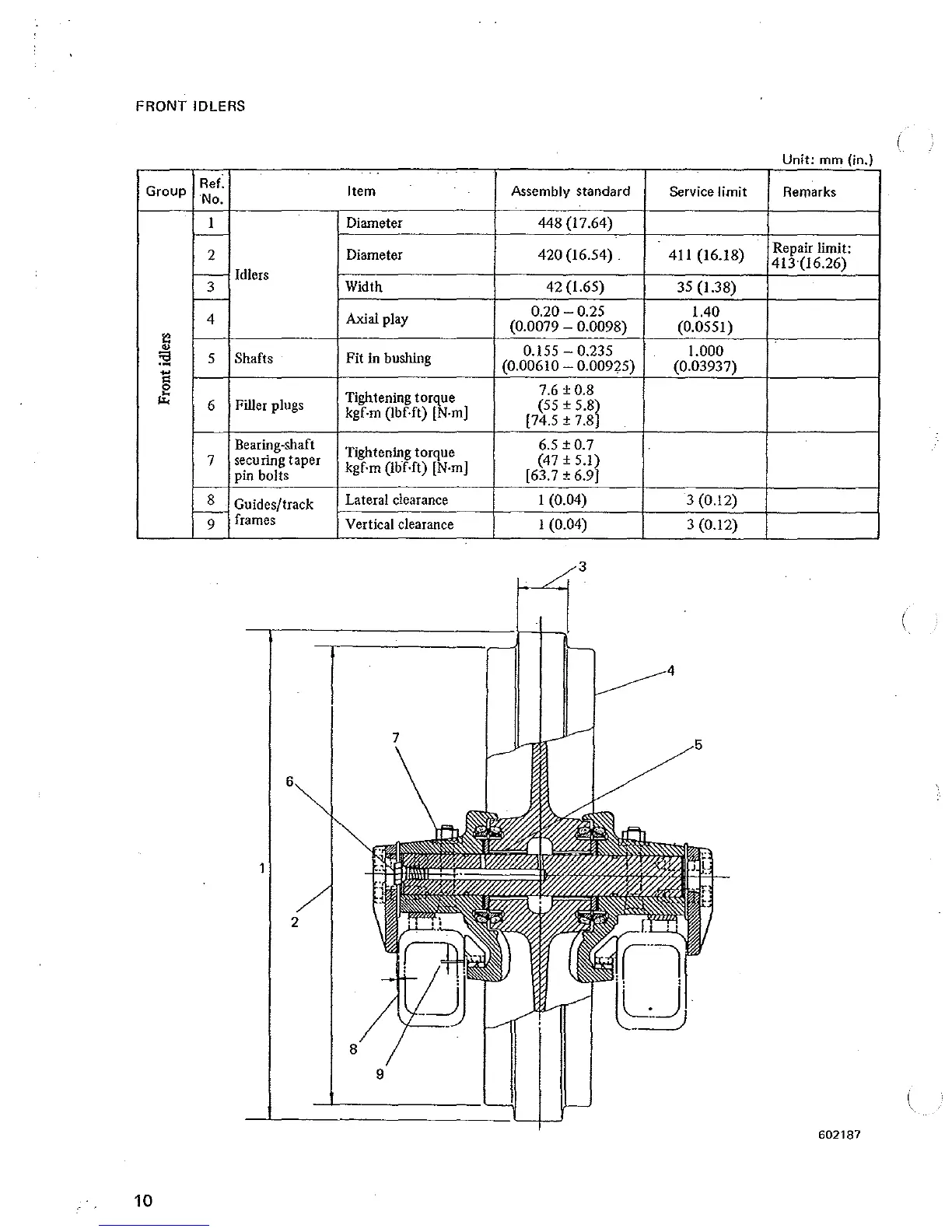

FRONT IDLERS
Unit·
mm (in )
Group
Ref.
Item Assembly standard
Service limit
Remarks
No.
1
Diameter 448 (17.64)
-
2
Diameter 420 (16.54) .
411 (16.18)
Repair limit:
3
Idlers
413 (l6.26)
Width 42 (1.65)
35 (1.38)
-
0.20 -0.25
1.40
4
Axial play
(0.0079 - 0.0098)
(0.0551)
5
0.155 - 0.235 1.000
:s!
5 Shafts
Fit in bushing
(0.00610 - 0.00945)
(0.03937)
.,.
0
7.6 ± 0.8
It
6
Filler plugs
Tightening torque
{55 ± 5.8~
kgf·m (lbf·ft) [N.m]
[74.5 ± 7.8
Bearing·shaft
Tightening torque
6.5 ±0.7
7
securing taper
{47 ± 5.1~
pin bolts
kgf'm
(lbHt) [N.m]
[63.7 ± 6.9
8
Guides/track
Lateral clearance I (0.04) 3 (0.12)
I-----
9
frames
Vertical clearance
I (0.04) 3 (0.12)
3
(
2
8
9
\,
602187
10
