4. A2CcPU /MELSEC-A

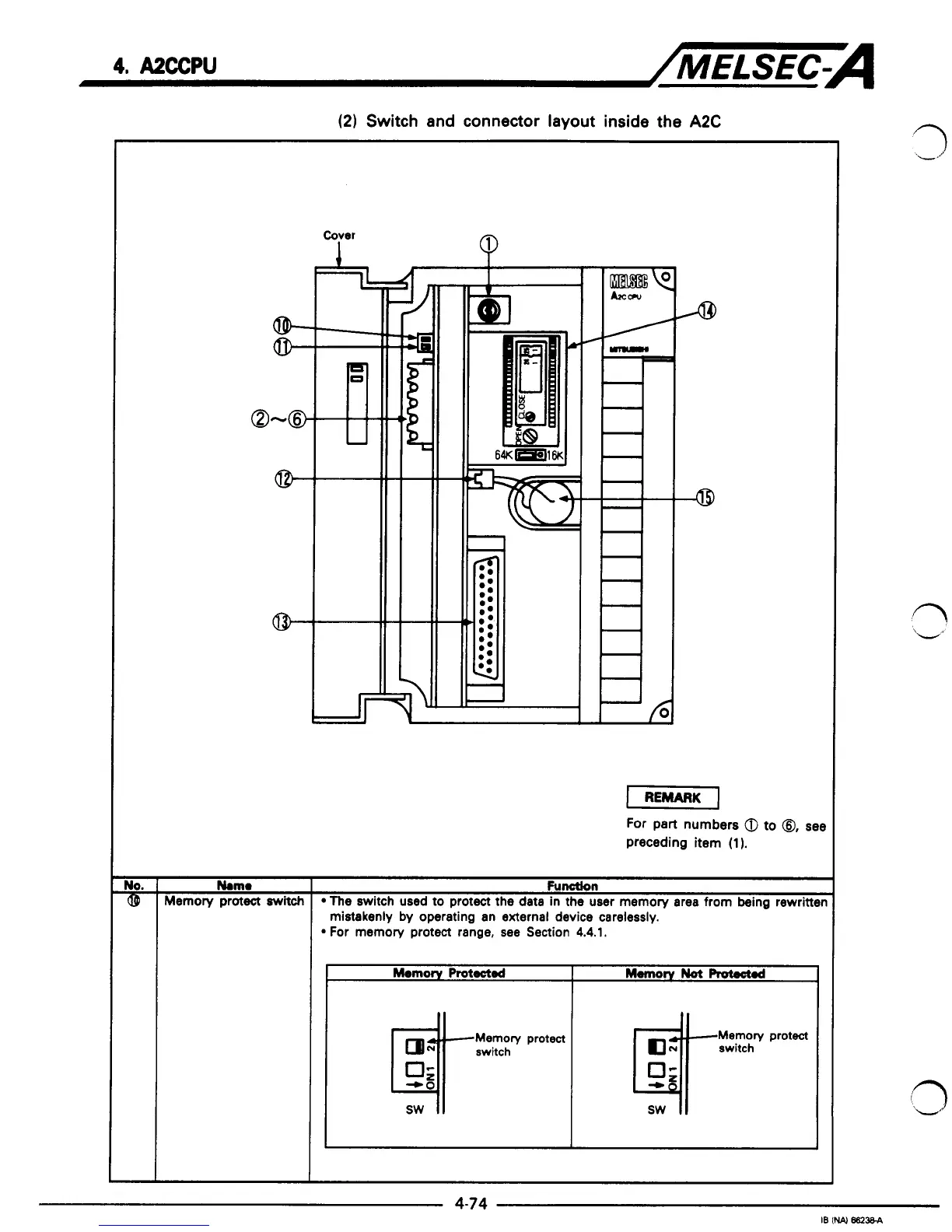

(2) Switch and connector layout inside the A2C
Cover
I
For part numbers 0 to @, see
preceding item (1).
No.
The switch used to protect the data in the user memory area from being rewritten
Memory protect
switch
@
Function
N.mo
mistakenly by operating an external device carelessly.
For memory protect range, see Section 4.4.1.
