Mitsubishi AJ65BT-R2N-U-HW User Manual

9
(3) General-purpose output specifications

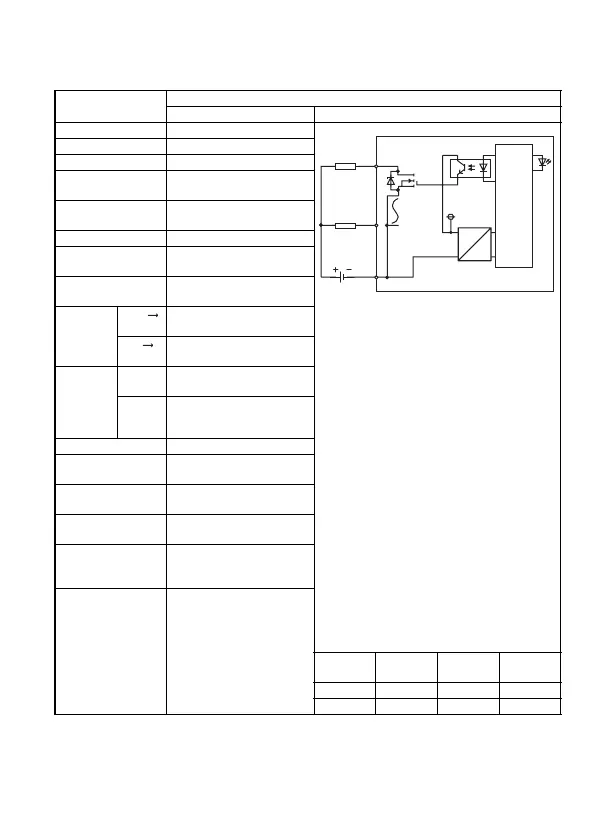

Table 2.5 General-purpose output specifications
Item
Transistor output (Sink type)
AJ65BT-R2N External connection view
No. of output points 2 points
Insulation method Photocoupler
Rated load voltage 12-24V DC (+20/-15%)
Operating load
voltage range
10.2 to 28.8V DC (Ripple
ratio: 5% or less)
Max. load current
0.1A/point
0.2A/common
Max. inrush current 0.7A, 10ms or less
Leakage current at
OFF
0.1mA or less
Max. voltage drop
at ON
0.1V DC (TYP.) 0.1A,
0.2V DC (MAX.) 0.1A
Response
time
OFF
ON
1ms or less
ON
OFF
1ms or less (Resistance
load)
External
power
supply of
output
section
Voltage
10.2 to 28.8V DC (Ripple
ratio: 5% or less)
Current
10mA (at 24V DC) (MAX
all points ON)
Surge suppressor Zener diode
Wiring method for
common
2 points/common (COM2)
External
connection method
7-point terminal block
(M3.5 screw)
Applicable wire
size
0.75 to 2mm
2
Applicable
solderless terminal
RAV1.25-3.5, RAV2-3.5
(Compliant with JIS C
2805)
Protective function
Provided
• Overheat protective
function operates in unit
of 1 point.
• Overload protective
function operates in unit
of 1 point. (Detection
disabled)
Terminal
No.
Signal
name
Terminal
No.
Signal
name
TB4 NC TB6 COM2
TB5 YC TB7 YD
TB 5
L
L
TB 7
LED
TB 6
12/24VDC
Internal
circuit
