4 - 1
MELSEC-A
4 SETUP AND PREPARATION BEFORE OPERATION
4
4 SETUP AND PREPARATION BEFORE OPERATION

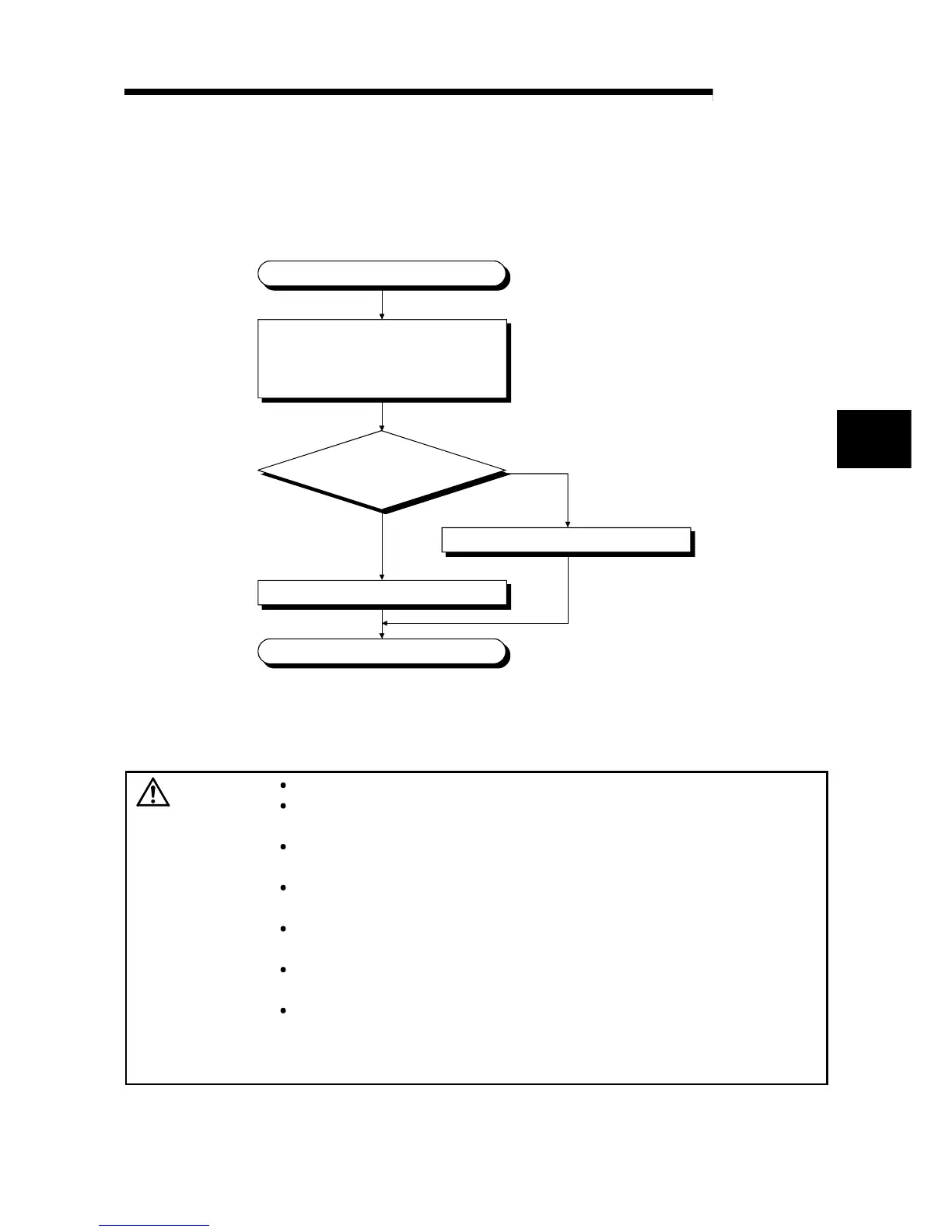

4.1 Pre-Operation Procedure
This section explains the preparatory procedure for operating the AJ65SBT-64AD.
START
Create a program.
(When making offset/gain setting, set all
channels to any of user range settings 1 to 3
in the sequence program.)
Start data link.
Make offset/gain setting?
Offset/gain setting (Refer to Section 4.4.)
END
.......Refer to Chapter 5.
No
Yes
4.2 Precautions When Handling
The precautions when handling the AJ65SBT-64AD are described below:
CAUTION
Do not touch the terminals while power is on. Doing so can cause a malfunction.
Ensure that no foreign matter such as chips and wire-offcuts enter the module.
Foreign matter can cause a fire, failure or malfunction.
Do not disassemble or modify the module.
Doing so can cause a failure, malfunction, injury or fire.
Do not touch the conductive and electronic parts of the module directly.
Doing so can cause the module to malfunction or fail.
Do not drop the module or give it hard impact since its case is made of resin.
Doing so can damage the module.
Do not touch the conductive parts of the module directly.
Doing so can cause the module to malfunction or fail.
Tighten the terminal screws within the specified torque range.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to damage of the
screws or module.
To Next Page
