4 - 7
MELSEC-A
4 SETUP AND PREPARATION BEFORE OPERATION
4.5 Station Number Setting
The station number setting of the AJ65SBT-64AD determines the buffer memory
addresses of the master module where the remote I/O signals and read/write data are
stored.
For details, refer to the user's manual of the master module used.
4.6 Facing Direction of the Module Installation
The AJ65SBT-64AD module may be installed in any of six directions.
(There are no restrictions on the facing directions.)
Also, a DIN rail may be used for installation.

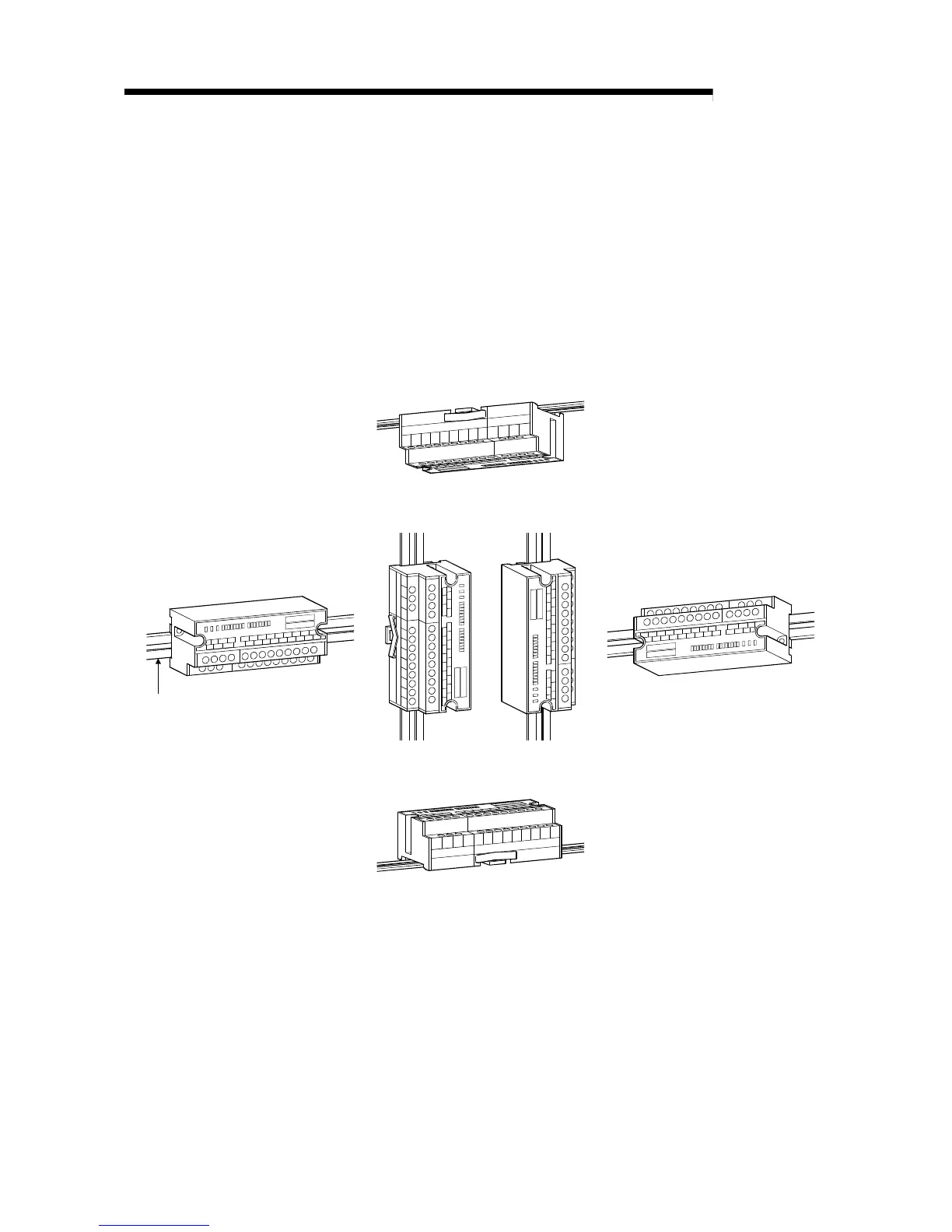

DIN rail
Front installation
Flat installation
Ceiling installation
