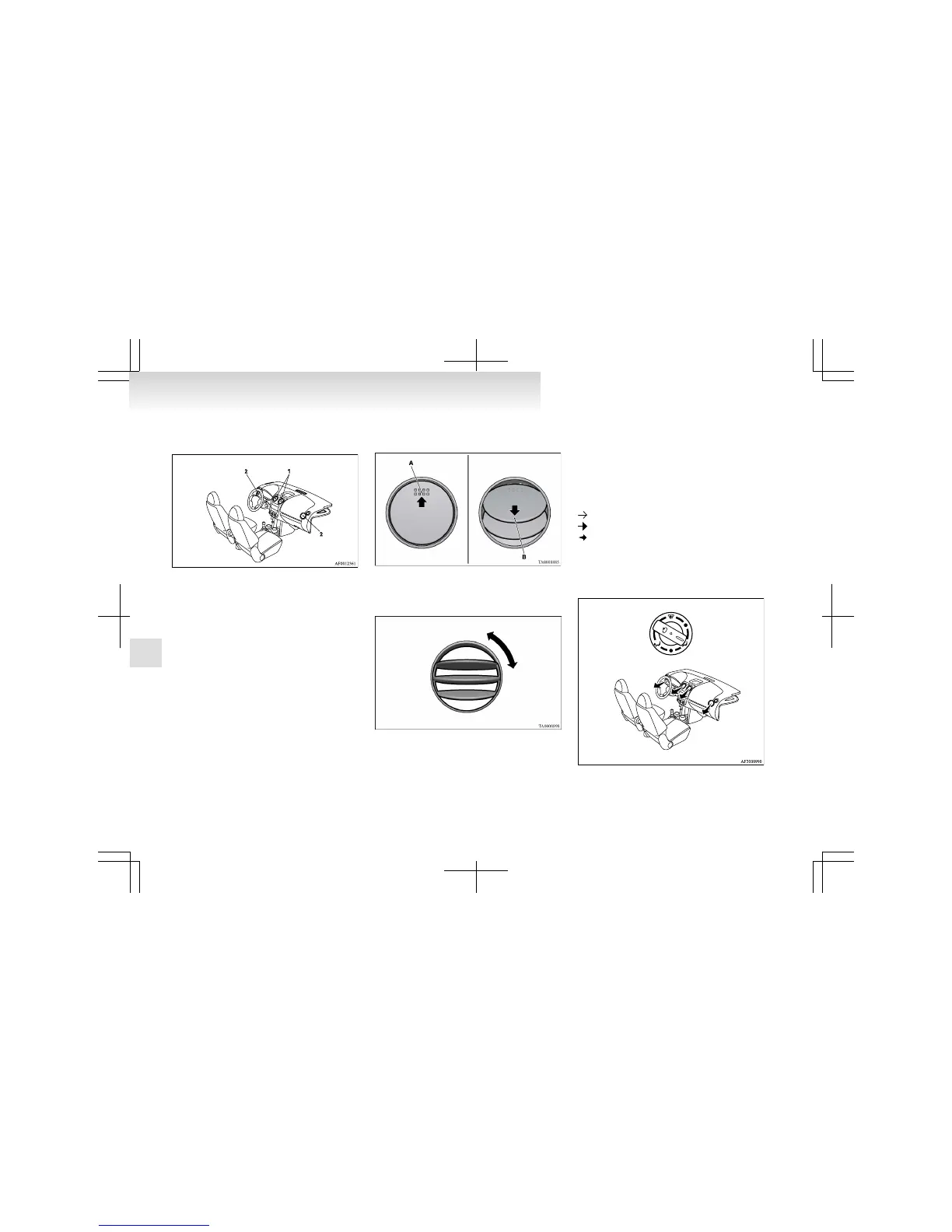

Ventilators
E00700100647
1- Centre ventilators
2- Side ventilators
NOTE
l
Do not place beverages on top of the instru-
ment panel. If they splash into the air condi-
tioning ventilators, they could damage the sys-
tem.
Air flow and direction adjustments
E00700200635
Push the section of the ventilator (A) to open it up.
Close the ventilators by pushing the section of the
(B).
Change the direction of the airflow by turning the
ventilator itself.
NOTE
l
On air conditioned vehicles, the cool air
from the ventilators may appear as a mist.
This is due to moist air being suddenly
cooled by the air conditioning. This will
clear after a few moments.
Changing the mode selection
E00700301398
To change the position and amount of air flowing
from the ventilators, turn the mode selection dial.
(Refer to “Mode selection dial” on pages 5-05,
5-08.
These symbols are used in the next several illustra-
tions to demonstrate the quantity of air coming
from the ventilators.
: Small amount of air from the ventilators
: Medium amount of air from the ventilators
: Large amount of air from the ventilators
Face position
Air flows only to the upper part of the passenger
compartment.
For pleasant driving
5-02
5
