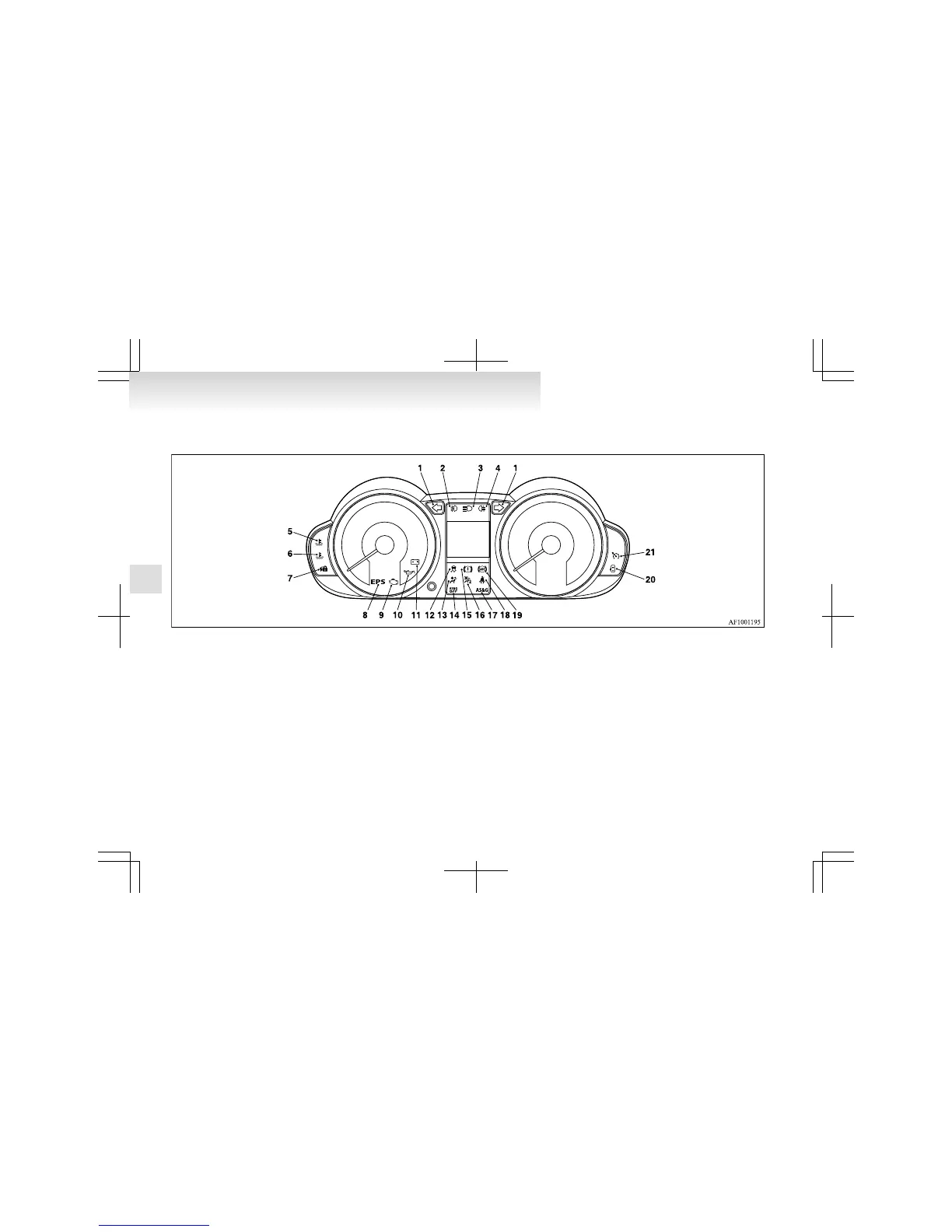

Indication and warning lamps
E00501501731
1-
Turn-signal indication lamps/Hazard warning indication lamps ® p. 3-17
2.
Front fog lamp indication lamp* ® p. 3-17
3-
High-beam indication lamp ® p. 3-17
4-
Rear fog lamp indication lamp ® p. 3-17
5-
High coolant temperature warning lamp ® p. 3-19
6-
Low coolant temperature indication lamp ® p. 3-17
7-
Immobilizer indication lamp ® p. 1-02
8-
Electric power steering warning lamp ® p. 4-29
9-
Check engine warning lamp ® p. 3-18
10-
Oil pressure warning lamp ® p. 3-19
11-
Charge warning lamp ® p. 3-19
12- Traction control system (TCL)/Active stability control system (ASC) indi-
cation lamp* ® p. 4-31
13-
SRS warning lamp ® p. 2-33
14-
Auto Stop & Go (AS&G) OFF indication lamp ® p. 4-16
15-
Brake warning lamp ® p. 3-17
16-
Front passenger’s airbag OFF indication lamp ® p. 2-25
17-
Auto Stop & Go (AS&G) indication lamp* ® p. 4-13
18-
Seat belt warning lamp ® p. 2-11
19-
Anti-lock brake (ABS) warning lamp ® p. 4-28
20-
Door ajar warning lamp ® p. 3-19
21-
Cruise control indication lamp* ® p. 4-32
