Fusible links
E01002900030
The fusible links will melt to prevent a fire if a
large current attempts to flow through certain elec-
trical systems.
In case of a melted fusible link, we recommend
you to have your vehicle inspected.
Fuses
E01003001963

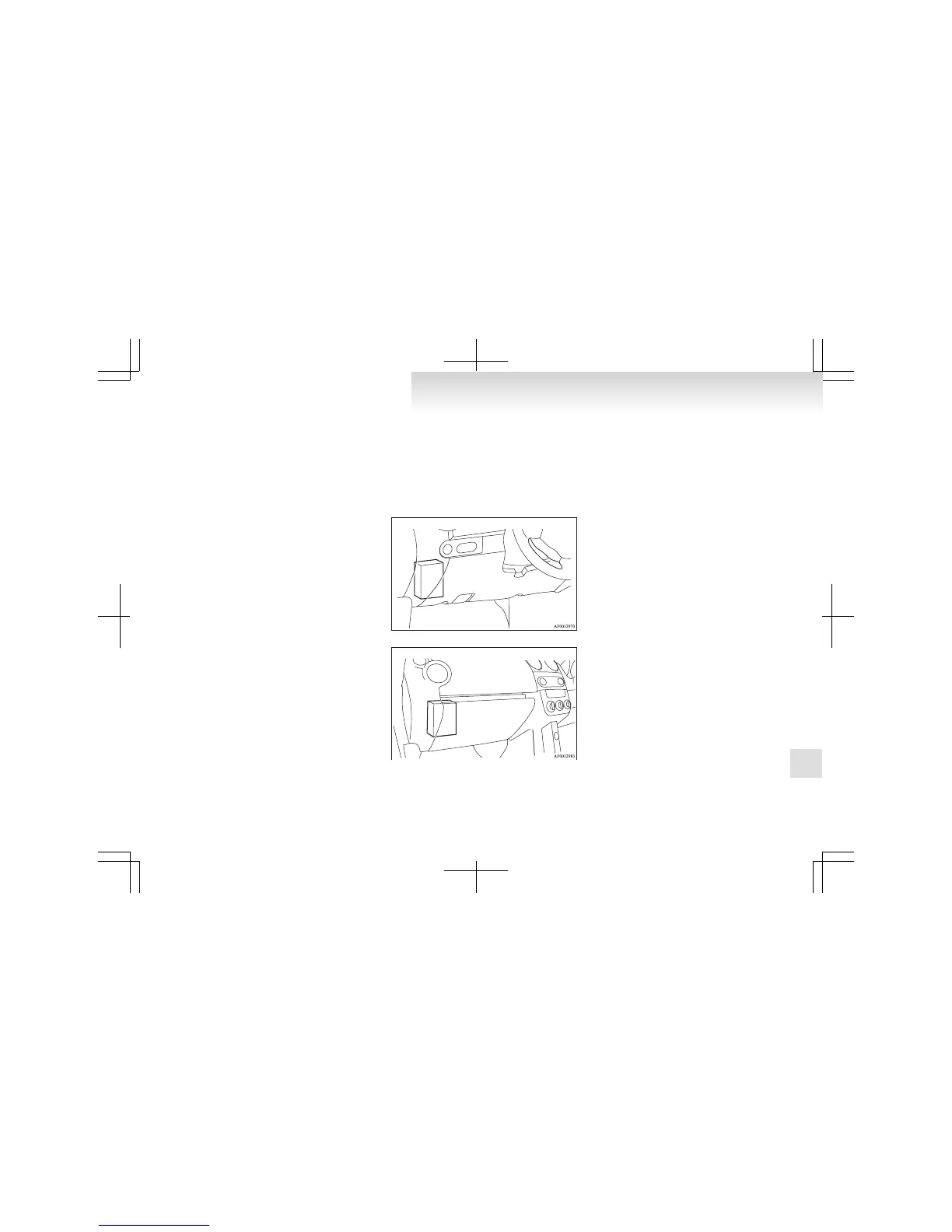

Fuse block location
To prevent damage to the electrical system due to
shortcircuiting or overloading, each individual cir-
cuit is provided with a fuse.
There is a fuse block in the passenger compartment.
The location of the fuse block in the passenger com-
partment depends whether the vehicle is LHD or
RHD. In a LHD vehicle, it is located behind the cov-
er in front of the driver’s seat. In a RHD vehicle, it
is located at the back of the glove box (as shown in
the illustration).
Fuse load capacity
The fuse capacities and the names of the electrical
systems protected by the fuses are shown on the
back of the cover in a LHD vehicle and behind the
cover at the back of the glove box in a RHD vehicle.
NOTE
l
The vehicle is not equipped with spare fuses.
Please purchase replacement fuses as neces-
sary.
Passenger compartment fuse location table
NOTE
l
When replacing a fuse, be sure to use a fuse
of the same capacity.
