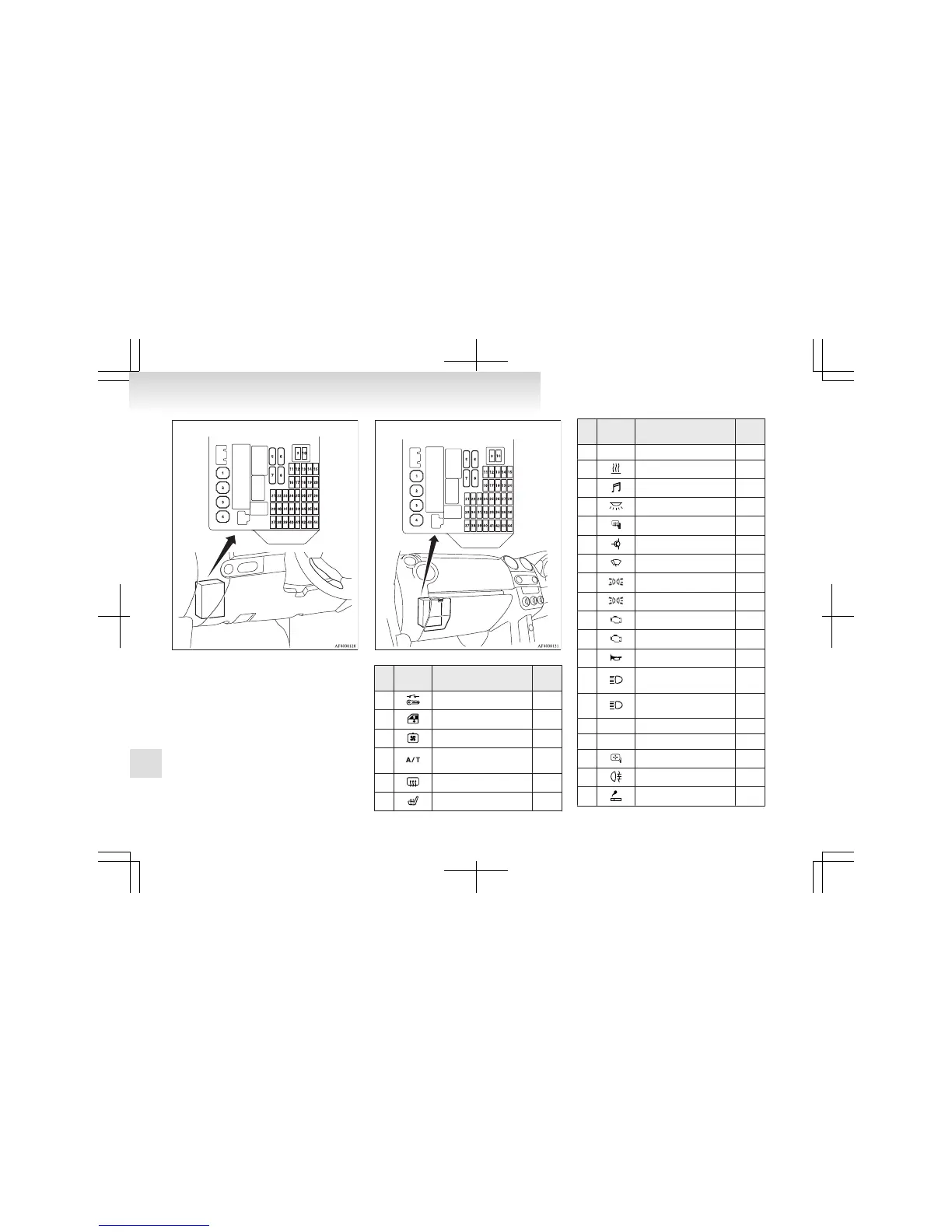

Passenger compartment fuse location (LHD)
Passenger compartment fuse location (RHD)
No. Symbol Electrical system
Ca-
pacity
1 Ignition switch 40 A
2 Electric window system 40 A
3 Radiator fan 40 A
4
Automated manual trans-
mission
40 A
5 Demister 30 A
6 Heated seat 30 A
No. Symbol Electrical system
Ca-
pacity
7 — — —
8 Heater 40 A
9 Radio 10 A
10 Room lamp 10 A
11 Heated door mirror 7.5 A
12 Electronic control module 7.5 A
13 Windscreen wiper 20 A
14 Tail lamp (right) 7.5 A
15 Tail lamp (left) 7.5 A
16 Engine 20 A
17 Fuel pump 15 A
18 Horn 10 A
19
Headlamp high-beam
(left)
10 A
20
Headlamp high-beam
(right)
10 A
21 — — —
22 — — —
23 Outside rear-view mirrors 7.5 A
24 Rear fog lamp 7.5 A
25 Accessory socket 15 A
