MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-8
PWEE9508
E
May 1995Mitsubishi Motors Corporation
A
R
"

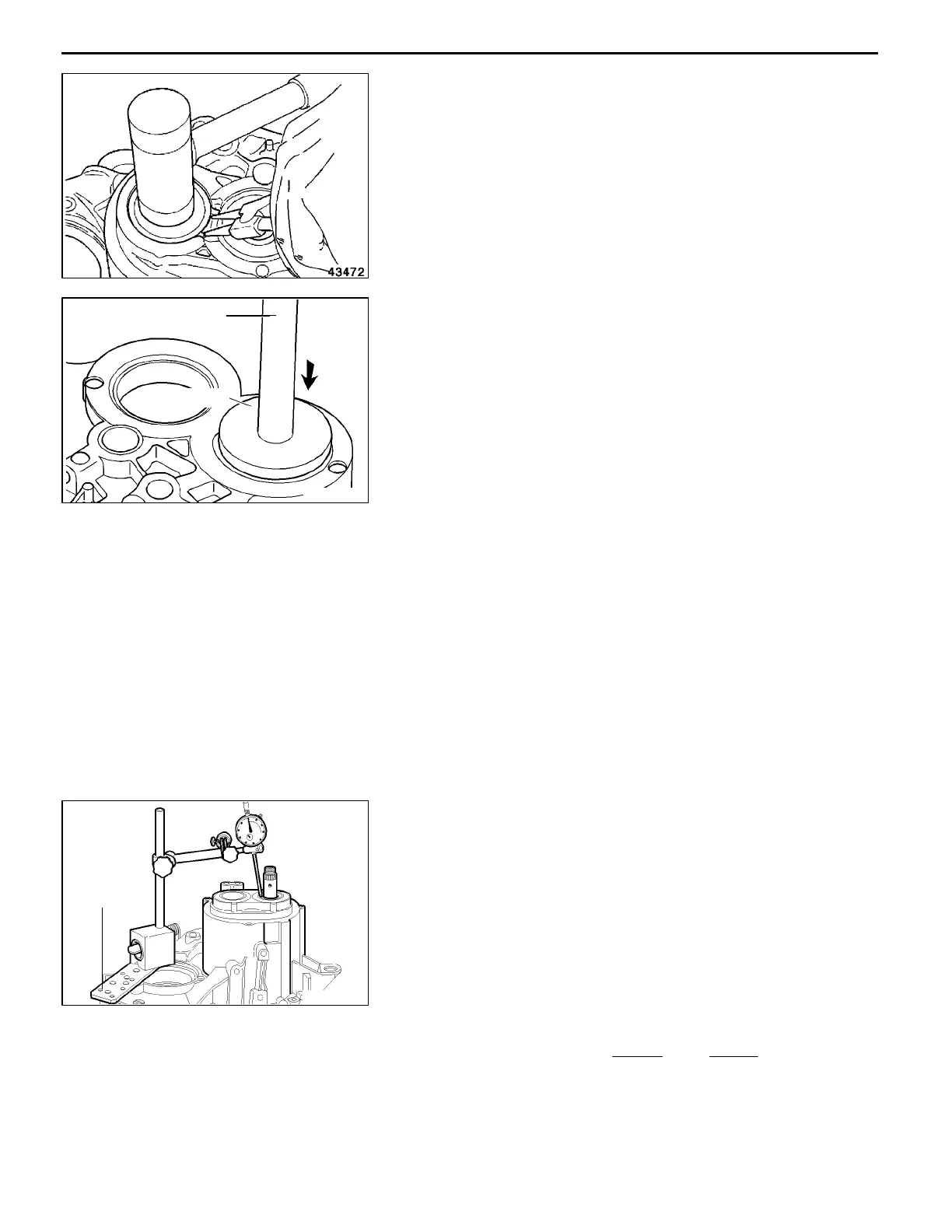

OUTPUT SHAFT REAR BEARING/INPUT SHAFT
REAR BEARING/SNAP RING REMOVAL
(1) Open the snap rings with a pair of pliers.
(2) Tap out the bearings towards the inside of the transmission
case with a plastic-tip hammer.
(3) Remove the two snap rings.
A
S
"
REAR BEARING CUP OUTPUT SHAFT/REAR
BEARING CUP INPUT SHAFT REMOVAL
(1) Tap the bearing cups out of the transmission case with
handle MB990938 and bearing installer MB990931.
ADJUSTMENT BEFORE REASSEMBLY
<F5MR3>
CALCULATE THE PRE-TENSION OF THE INPUT AND
OUTPUT SHAFTS WITH NEW BEARINGS
(1) Introduce the input shaft and the output shaft in the clutch
housing.
(2) Place the transmission case on the clutch housing, insert
a few retaining bolts around the shafts and tighten the
bolts.
(3) Locate the mounting plate MB996012 on the tripod joint
housing an d secure it with a bolt.
(4) Locate the magnetic base together with clock gauge on
the mounting plate.
Input shaft
(5) Rotate the input shaft a few times.
(6) Raise the input shaft at the clutch end and read off the
value indicated by the clock gauge.
Repeat this operation several times.
Example A B
new used
bearings bearings
pre-tension
value 0.00 mm -0.03 mm
shim thickness +0.60 mm +0.60 mm
measured value +0.46 mm +0.46 mm
=1.06 mm =1.03 mm
Select:
A: a shim with a thickness of 1.10 mm
B: a shim with a thickness of 1.50 mm
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB990938
MB990931
RMT0011
RMT0012
MB996012
