MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-9
PWEE9508
E
May 1995Mitsubishi Motors Corporation

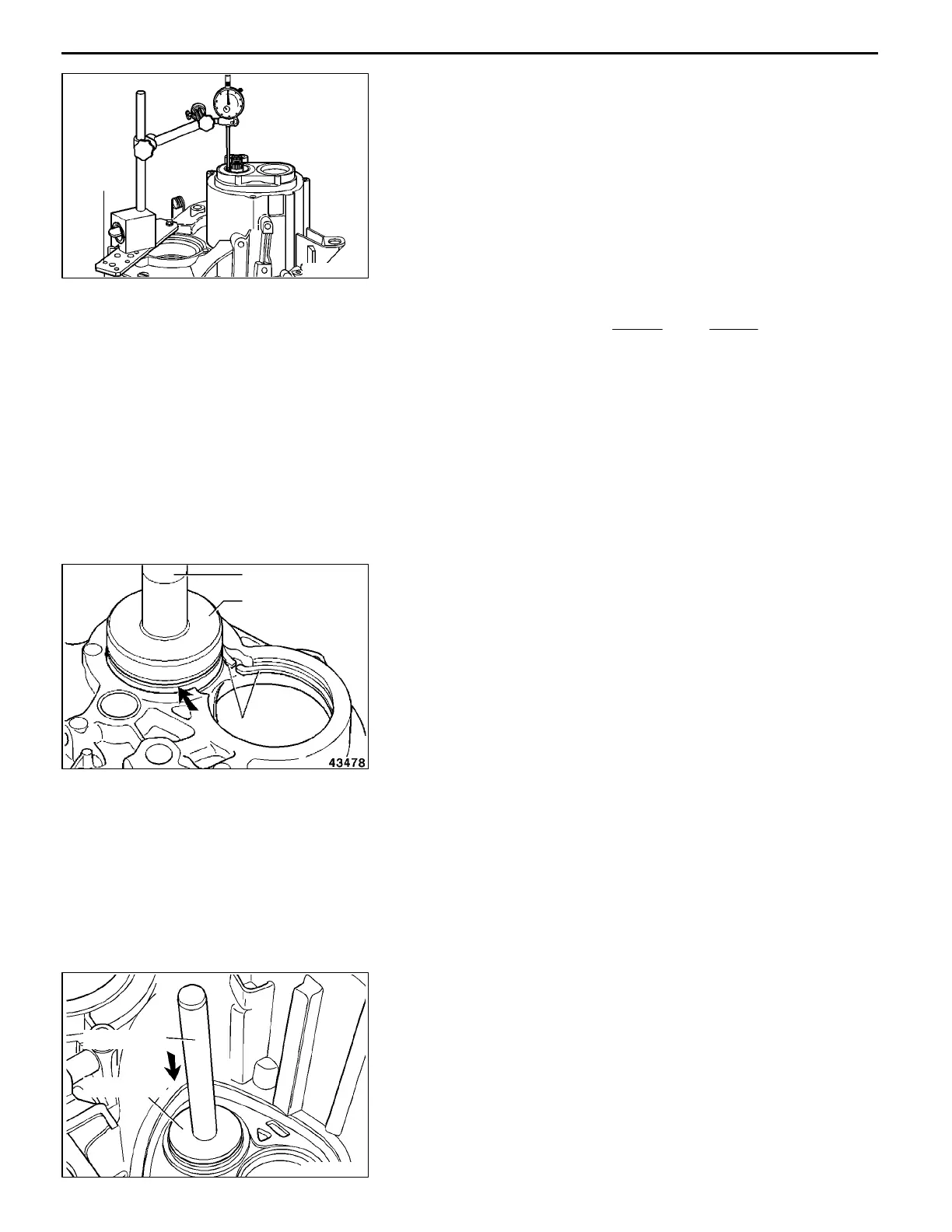

Output shaft
(7) Rotate the output shaft a few times.
(8) Raise the output shaft at the clutch end and read off
the value indicated by the clock gauge.
Repeat this operation several times.
Example A B
new used
bearings bearings
pre-tension
value 0.26 mm 0.06 mm
shim thickness +1.60 mm +1.60 mm
measured value +0.28 mm +0.28 mm
=2.14 mm =1.94 mm
Select:
A: a shim with a thickness of 2.15 mm
B: a shim with a thickness of 1.95 mm
NOTE
Always use the thickest shim in order to obtain the required
pre-tension value.
(9) Remove the transmission case and the input shaft and
output shaft.
REASSEMBLY SERVICE POINTS
"
A
A
SNAP RING/INPUT SHAFT REAR BEARING/OUTPUT
SHAFT REAR BEARING INSTALLATION
(1) Coat the mating faces in the transmission case with the
specified sealant.
(2) Locate the two snap rings 1.
(3) Introduce the bearings from the outside of the transmission
case with the groove facing up.
(4) Open the snap rings with a pair of pliers and tap in the
bearings with a plastic-tip hammer until they are projecting
about 3 mm above the transmission case.
(5) Remove the pliers.
(6) Now tap the bearings further into the transmission case
with handle MB990938 and bearing installer set
MB990932 until the snap rings slip into the grooves.
"
B
A
INPUT SHAFT REAR BEARING CUP/OUTPUT
SHAFT REAR BEARING CUP INSTALLATION
(1) Coat the mating faces in the transmission case with the
specified sealant.
(2) Introduce the bearing cups from the inside of th e
transmission case.
(3) Tap the bearing cup into the transmission case as far
as the stop with handle MB990938 and installer
MB990933.
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB996012
RMT0013
MB990938
MB990932
1
MB990938
MB990933
RMT0014
