Use the manual Beichen Automation BCNET-FX-S Ethernet communication processor

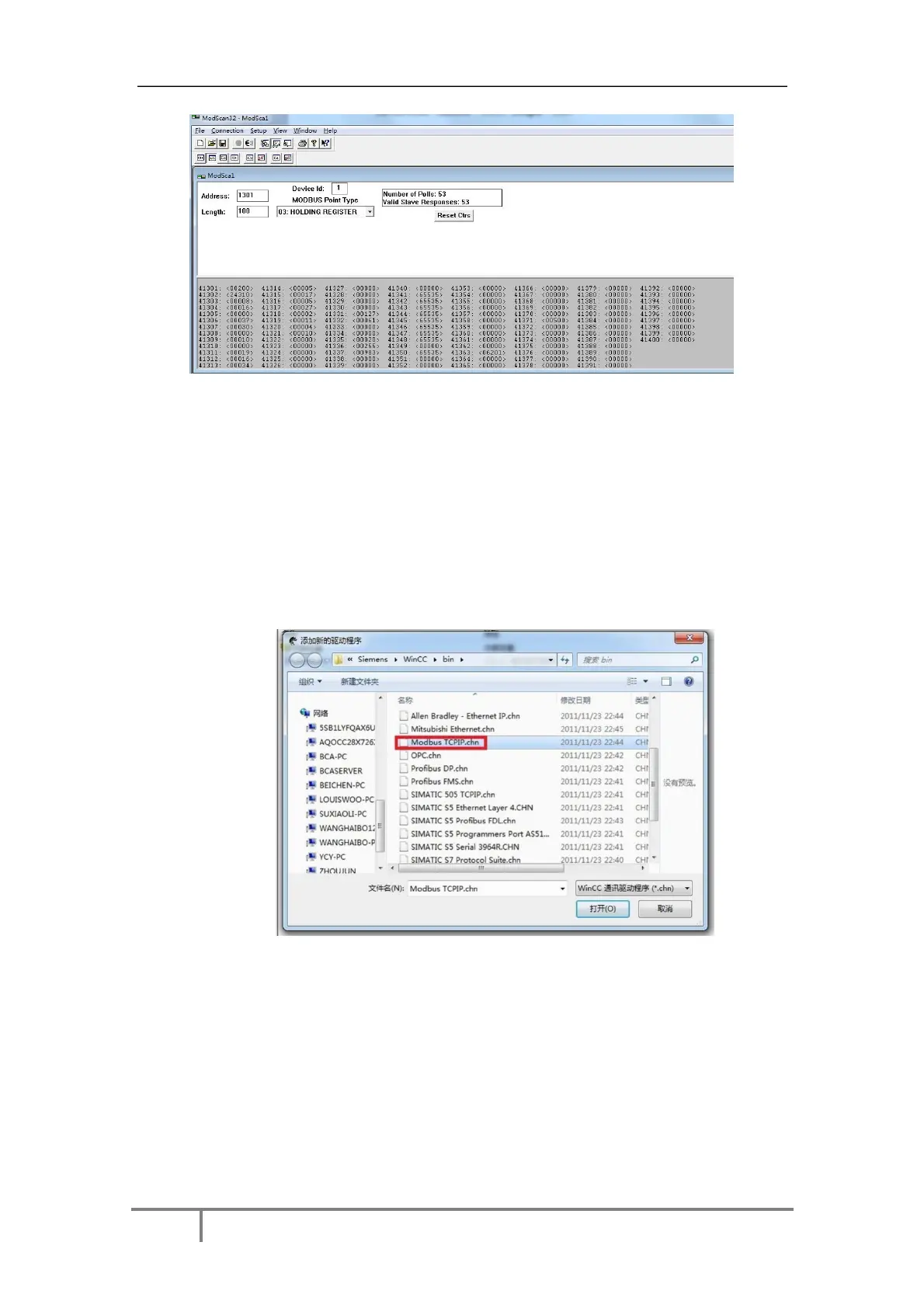

图 2
Double-click the data in the child window data area to modify the value.
6.1 WINCC connects to BCNET-FX-S via MODBUSTCP driver
1. Open the WINCC software, create a new project, right-click“Variable management”,
select“Add new driver connection”, select“Modbus TCPIP.chn” in the pop-up dialog, click“OK”.
2. Right-click“Modbus TCPIP/IP unit # 1” select“New driver connection”, create a new name,
click“Properties”, pop up the properties dialog box, select“984” in“CPU Type”, enter the IP
address of BCNet-FX-S in server,
Click OK.
64

Mitsubishi FX Series Specifications

General

Manufacturer	Mitsubishi Electric
Category	Programmable Logic Controller (PLC)
Series	FX Series
Programming Language	Ladder Logic, Instruction List, Structured Text, Function Block Diagram
Communication Interfaces	RS-422, RS-485, Ethernet, USB
Protocols Supported	Modbus RTU, Modbus TCP, CC-Link
Input Voltage	24 VDC, 100-240 VAC
Output Type	Relay, Transistor
Operating Temperature	0°C to 55°C
