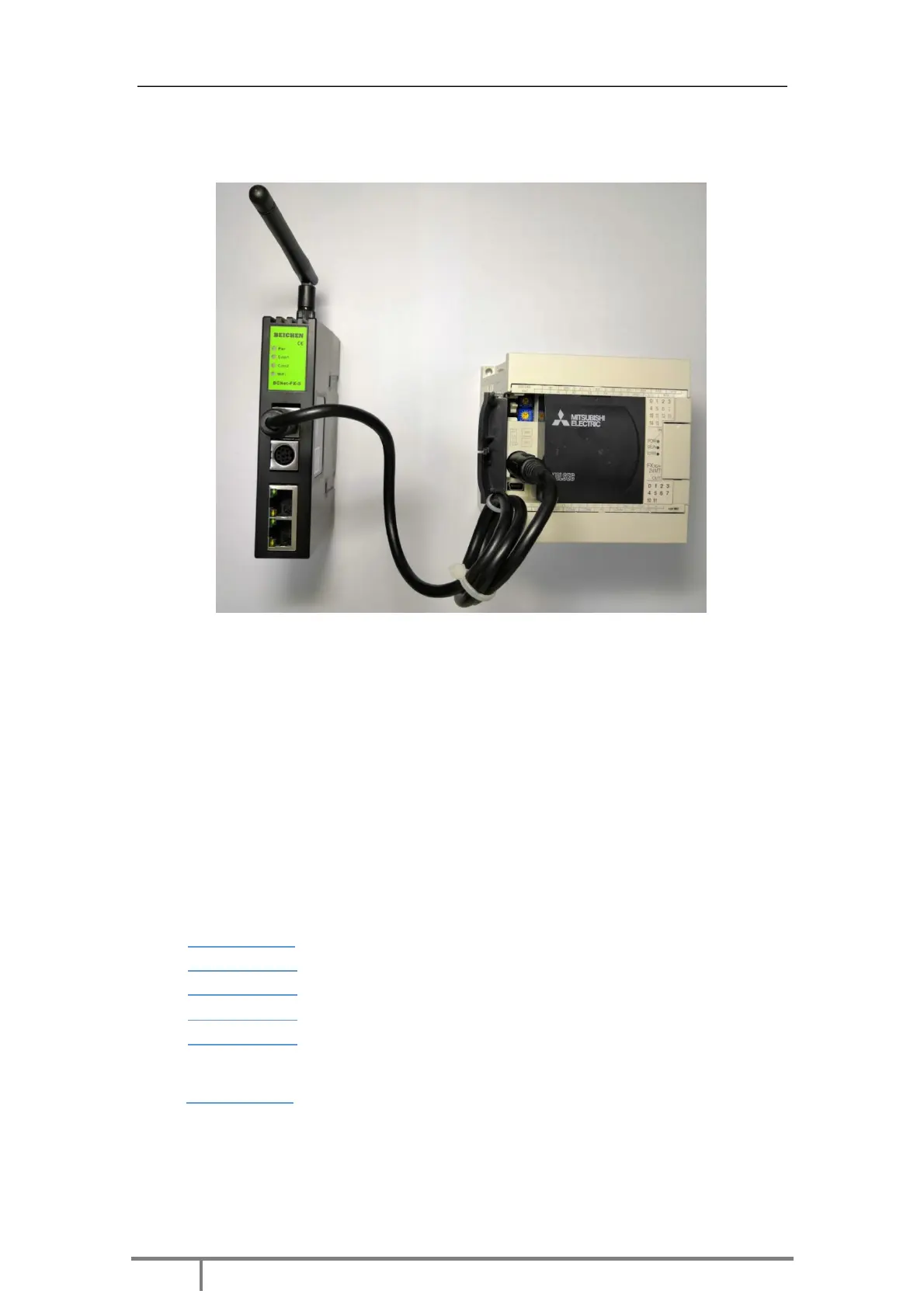

Use the manual Beichen Automation BCNET-FX-S Ethernet communication processor
2.2 installation
2.3 interface description
BCNET-FX-S product has four interfaces: MD8 Communication Bus X 1, MD8 communication
bus x 2, dual RJ45 communication bus x 3, RJ45 communication bus x 4, WiFi Antenna X 5 and
24VDC power supply bus x 6.
2.3.1 Serial Interface X 1
X 1 is the MD8 bus port, which is directly connected to the communication port of Mitsubishi PLC
through the communication line. The pin is defined as:
1 foot
Txd -
2 feet
TXD +
3 feet
GND
4 feet
RXD -
Five
feet
5V power
supply
positive
7 feet
RXD +
The baud rates supported by the X 1 interface are: 9.6K, 19.2K, 38.4K, 115.2K.

Mitsubishi FX Series Specifications

General

Manufacturer	Mitsubishi Electric
Category	Programmable Logic Controller (PLC)
Series	FX Series
Programming Language	Ladder Logic, Instruction List, Structured Text, Function Block Diagram
Communication Interfaces	RS-422, RS-485, Ethernet, USB
Protocols Supported	Modbus RTU, Modbus TCP, CC-Link
Input Voltage	24 VDC, 100-240 VAC
Output Type	Relay, Transistor
Operating Temperature	0°C to 55°C
