Mitsubishi FX Series User Manual

Use the manual Beichen Automation BCNET-FX-S Ethernet communication processor

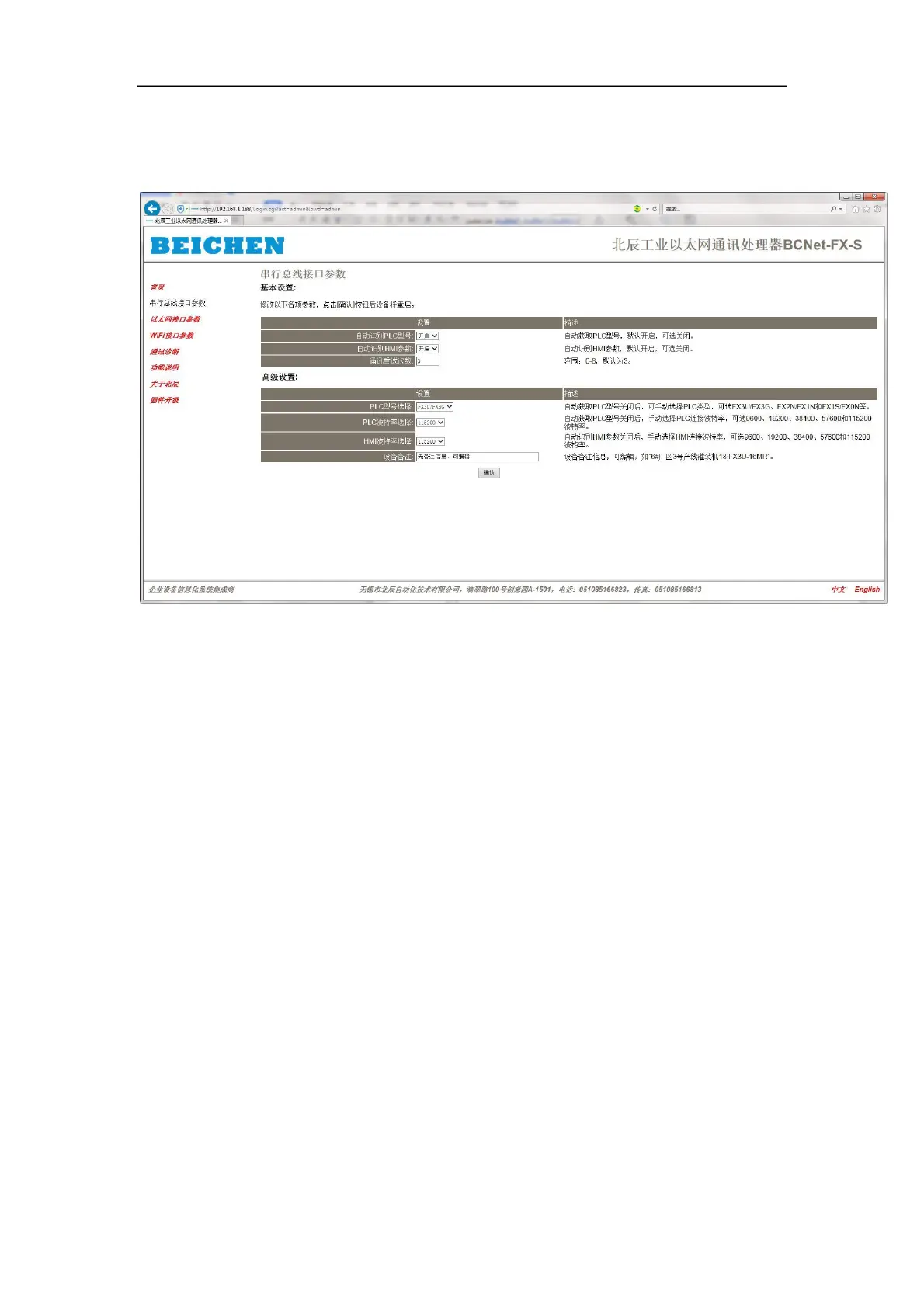

3.2.1 serial bus interface parameters
Automatic identification of PLC model: the default is“Open”, “Open” state does
not need to set the“PLC model selection”, will be from
Moving Recognition PLC model.
Automatic identification HMI parameters: the default is“On”, “On” state
does not need to set the“HMI baud rate selection”, will automatically
identify the HMI baud rate.
Communication retry times: the number of times BCNET-FX-S retries when a
communication error occurs, defaults to 3.
PLC type selection: select the correct PLC model, including FX1S, FX1N/FX2N, FX3U/FX3G/FX3S,
such as
If auto get PLC type is on, ignore this setting.
PLC baud rate selection: the default, when the automatic access PLC Model Open, the module will
automatically adjust and PLC communication baud rate, turn off the automatic identification of PLC
model, can specify the PLC connection baud rate, optional 9600,19200,38400,
57,600 and 115,200 bps.
HMI baud rate selection: automatic identification HMI parameters off, manually select HMI connection
baud rate, optional 9600,19200,
38,400,57,600 and 115,200 bps.
