FX1N Series Programmable Controllers Installation Notes 3.
3-4
3.2 FX
1N
RUN/STOP Control
RUN or STOP of the FX
1N
can be controlled by:
n
The RUN/STOP switch mounted next to the programming port.
o
A standard input (X0 to X17) defined by the system parameters.
p
Remotely from a personal computer or other programming peripheral.
Note
:The FX
1N
RUN/STOP switch works in parallel with the RUN-input terminal. Please
refer to the table below.
During remote operation the FX
1N
RUN/STOP status is determined by the most
recently operated control.
E.g. If the RUN/STOP switch is in RUN and a remote STOP is made from a personal
computer the RUN/STOP switch must be switched to STOP then back to RUN to
switch the MPU back to RUN mode.

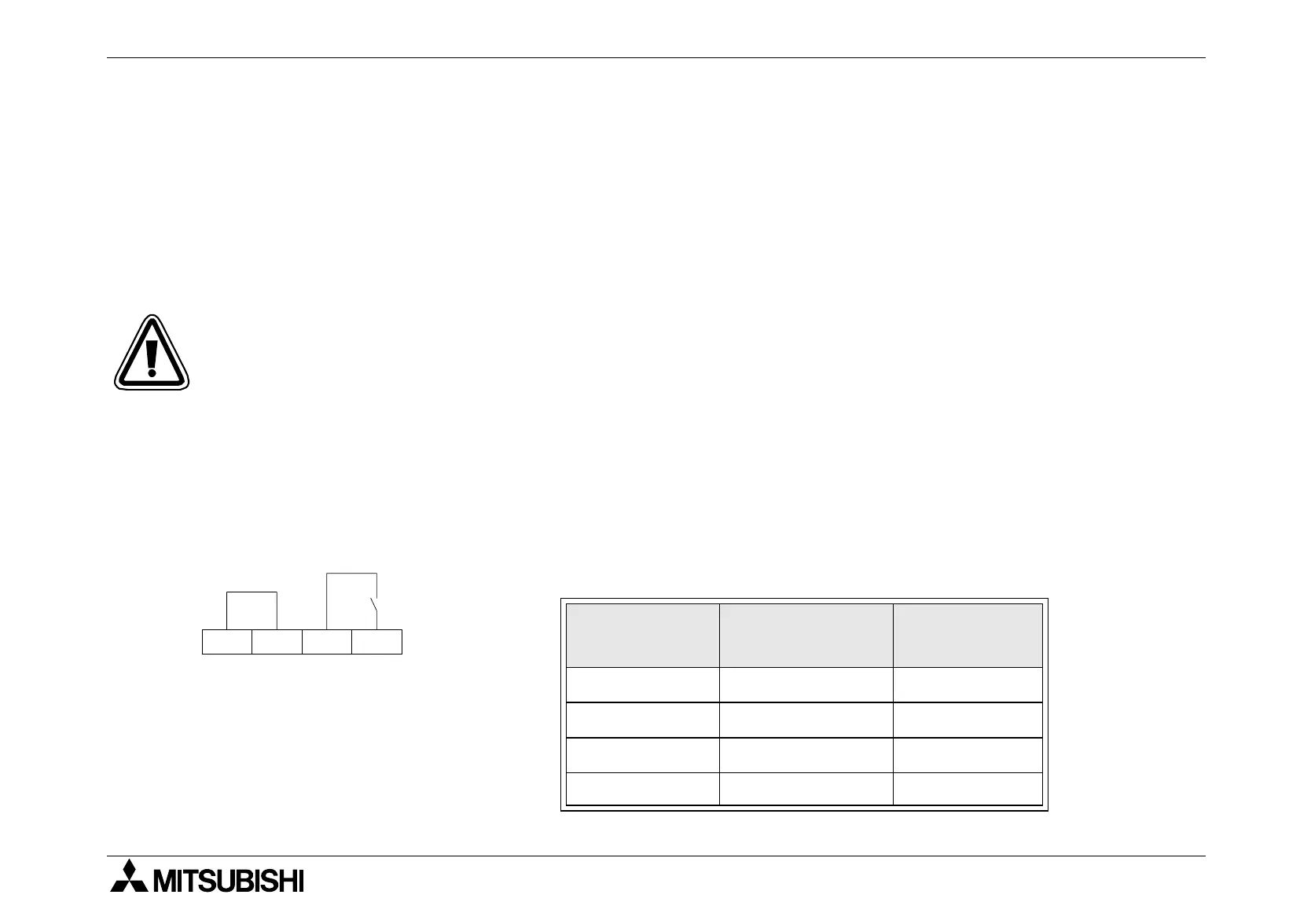

Figure 3.2:RUN input terminal
Table 3.2 : RUN/STOP selection
RUN/STOP
SWITCH
➊
RUN INPUT
TERMINAL
FX
1N
MPU
STATUS
✔✔
RUN
✔✘
RUN
✘✘
STOP
✘✔
RUN
RUN
➊
S/S 0V 24V X0
