14.2.3 Setting of intelligent device station

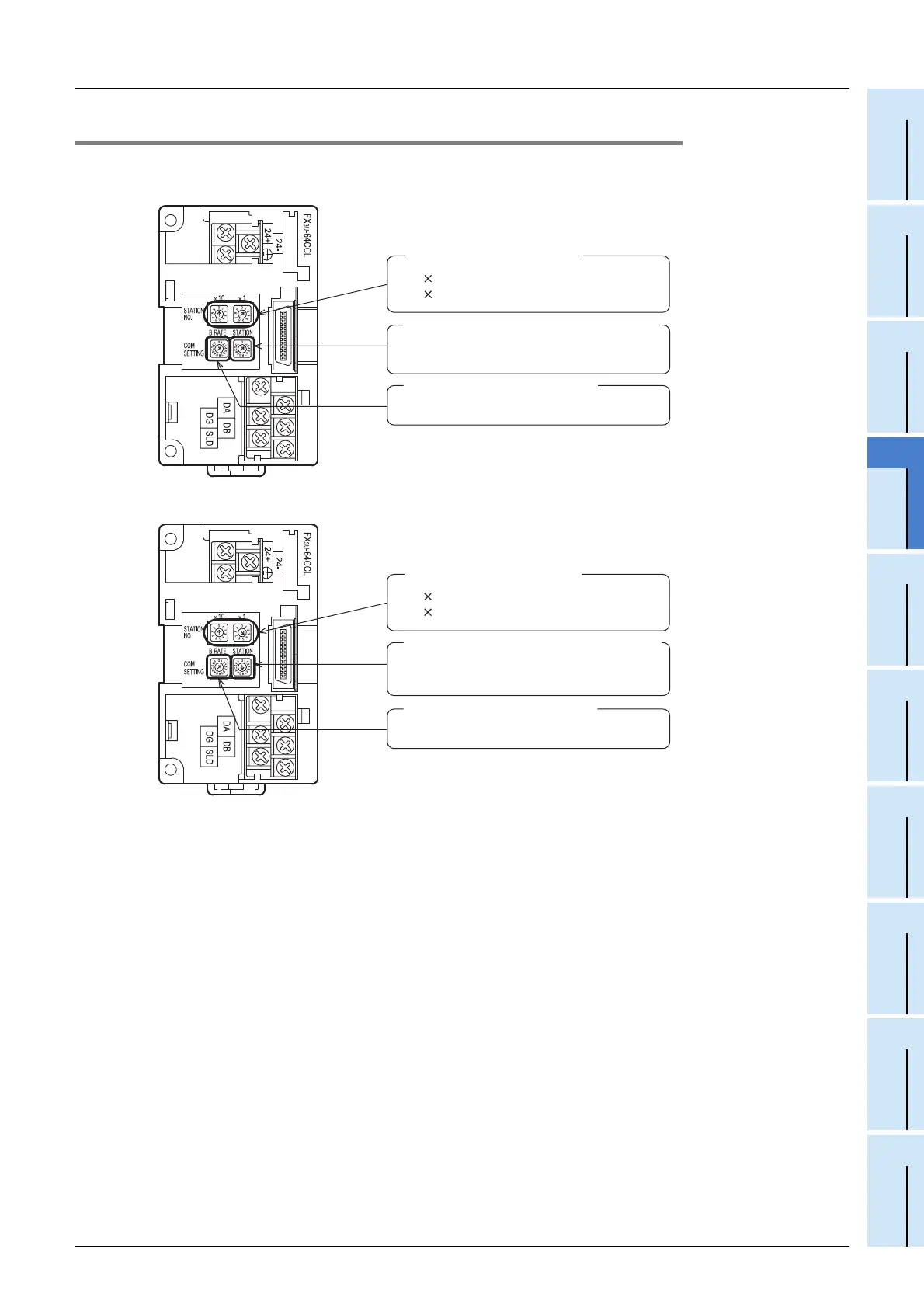

The figure below shows the setting of the switches in the intelligent device station (FX3U-64CCL).
•FX
3U-64CCL (Station No. 1)
•FX
3U-64CCL (Station No. 4)
Station number setting switch
0 ( 10)
1 ( 1)
Transmission rate setting switch
2 (2.5 Mbps)
Number of occupied stations and expanded
cyclic setting switch
2 (Occupies 3 stations, single)
Station number setting switch
0 ( 10)
4 ( 1)
Transmission rate setting switch
2 (2.5 Mbps)
Number of occupied stations and expanded
cyclic setting switch
8 (Occupies 1 station, quadruple)
