1 Introduction

1.2 External Dimensions and Part Names

FX3U-16CCL-M User's Manual

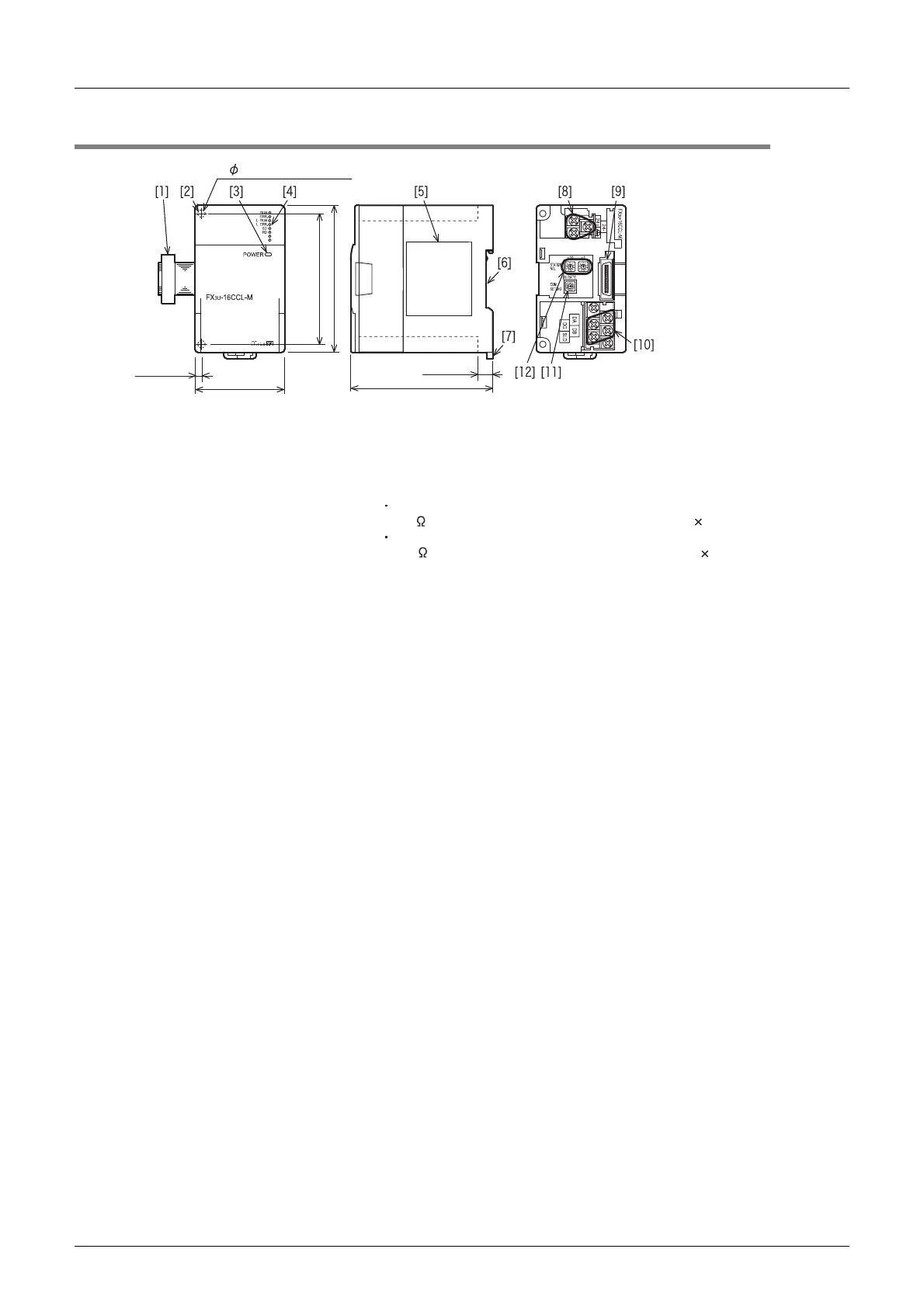

1.2 External Dimensions and Part Names

[1] Extension cable [7] DIN rail mounting hook

[2] Direct mounting hole: 2 holes of φ4.5 (0.18")

(mounting screw: M4 screw)

[8] Power supply terminal block

[3] Power LED (green) [9] Extension connector

[4] Status LEDs

→ Refer to Section 1.4

[10] CC-Link connection terminal block

[5] Name plate [11] Transmission rate setting switch

[6] DIN rail mounting groove (DIN rail: DIN46277,

35 mm (1.38") width)

[12] Station number setting switch

2- 4.5 mounting holes

Without top cover

4(0.16”)

55(2.17”)

80(3.15”)

(mounting hole pitch)

90(3.55”)

9(0.36”)

Unit : mm (inches)

MASS (Weight) : 0.3 kg (0.66 lbs)

Accessories : Label for indication of special function unit/block number,

Dust proof protection sheet,

Manual supplied with product,

Terminal resistor

For CC-Link dedicated cable

110 1/2 W (color cable: brown, brown and brown) 2 cables

For CC-Link dedicated high-performance cable

130 1/2 W (color cable: brown, orange and brown) 2 cables

87(3.43”)
