B-35
FX Series PLC User's Manual - Data Communication Edition
N:N Network
7 Creating Programs
7.3 Creating Programs for Slave Station (Station No. "n")
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter
Communication
F
Non-Protocol
Communication
(RS/RS2 Instruction)
G
Non-Protocol
Communication
(FX
2N
-232IF)
H
Programming
Communication
I
Remote
Maintenance
Apx.
Discontinued
models
→ For details on link devices, refer to Section 7.1.
→ For cautions on program creation, refer to Section 7.4.
Y011
Station No. 0
Data transfer
sequence error
M1000
M1001
M1002
M8183
FNC 12
MOV
K4M1010 K4Y020
FNC 12
MOV
D0 D110
Y012
Station No. 2
Data transfer
sequence error
M1128
M1129
M1130
M8185
FNC 12
MOV
K4M1140 K4M20
FNC 12
MOV
D20 D200

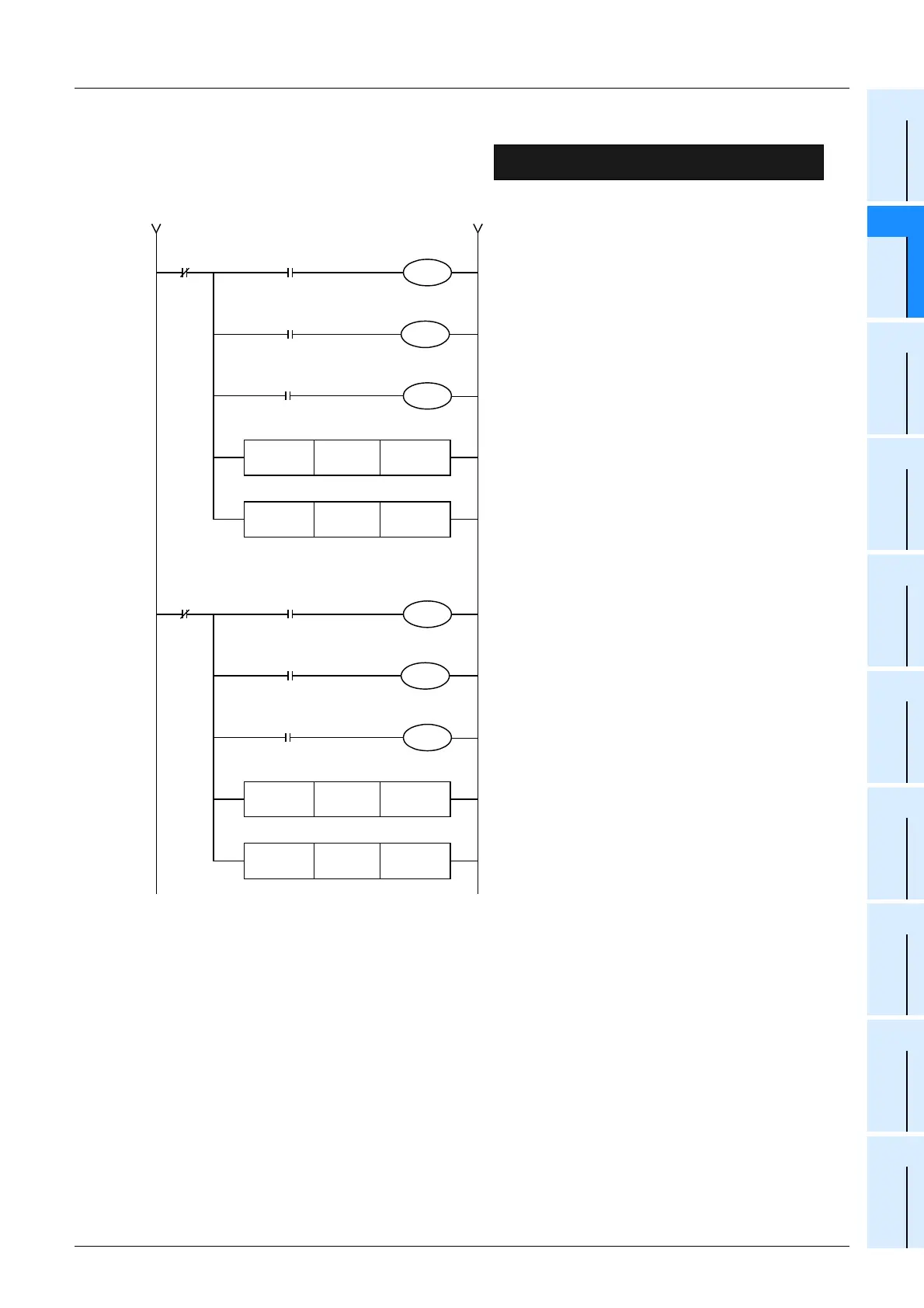

Program for reading link devices
(slave station
←
master or slave station)
This program is required to read information from the
master station or another slave station to a slave station.
Monitor link errors in each slave station, and read them.
M0
M15
M1
M18
The information from M1000 (link device) is read to M0.
The information from M1001 (link device) is read to Y011.
The information from M1002 (link device) is read to M15.
The information from M1010 to M1025 (link devices) is
read to Y020 to Y037.
The information from D0 (link device) is read to D110.
The information from D1128 (link device) is read to M1.
The information from D1129 (link device) is read to Y012.
The information from D1130 (link device) is read to M18.
The information from M1140 to M1155 (link devices) is
read to M20 to M35.
The information from D20 (link device) is read to D200.
To Next Page
