FUEL SYSTEM
8-24
2.11 Disassembling, inspecting and reassembling fuel filter (cock switch type, push botton)
Disassembling, inspecting and reassembling fuel filter (cock switch type, push botton)

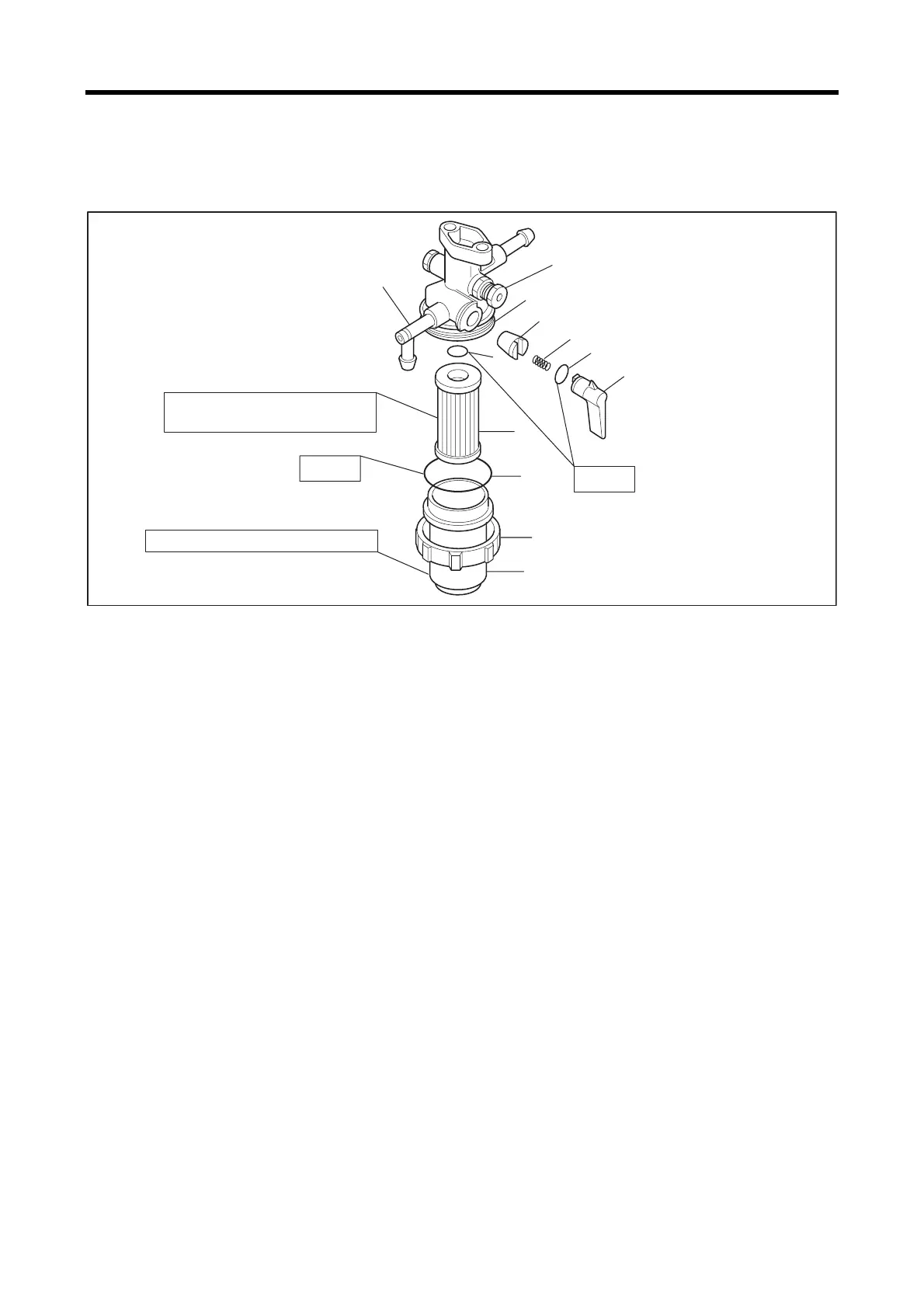

Disassembling sequence
Note: (a) Disassemble the fuel filter only when removing the element. Do not disassemble the cock lever unless absolutely
necessary.
(b) When removing the cock lever and reassembling it after cleaning, apply silicon oil to the O-ring of the lever.
1 Ring nut 5 O-rings 9 Valve
2 Cup 6 Cock lever 10 Filter body
3 O-rings 7 O-rings
4Element 8Spring










Air vent button
Wash in a gas oil: Every 100 hrs
Replace : Every 400 hrs
Check for clogging (water and dust)
Do not evulse
Replace
Replace
