FUEL SYSTEM
8-30
3.2.5 Installing rack set screw
&$87,21
The rack set screw are properly adjusted at the factory
before shipment. Do not work on the rack set screw
unless absolutely necessary.
Adjust and reassemble the rack set screw as described in the
following.
(1) Adjust the speed control lever with the high speed set
bolt. After setting it to the high idle engine speed,
secure it by nut.
(2) Screw in the rack set screw at rated engine speed, set it
to the rated engine power.
(3) Secure it by torque set nut.
(4) Put the rack set screw sealing cap and firmly tighten the
sealing cap.

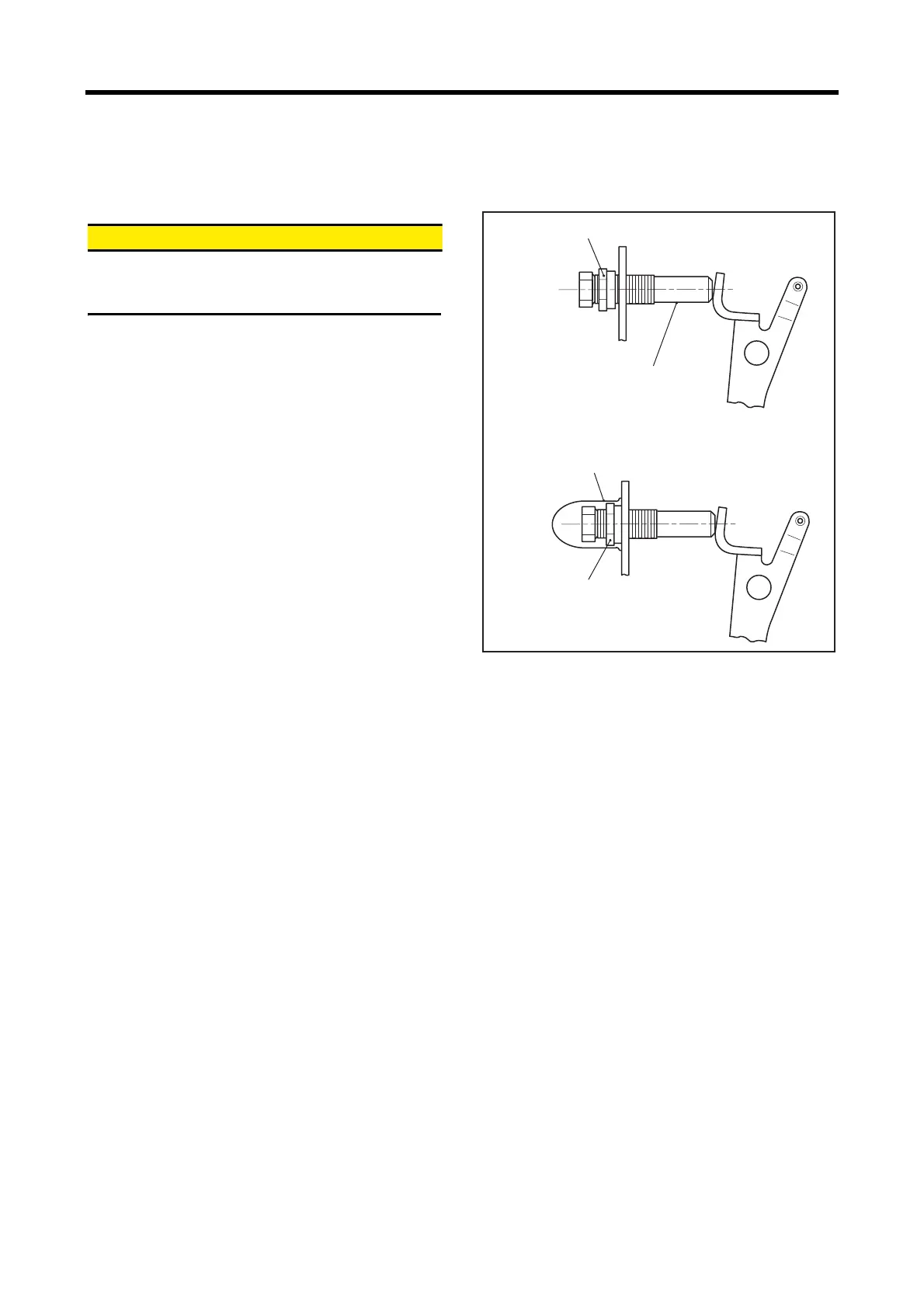

Installing rack set screw
Torque set nut
Screw in the rack set screw
at rated engine speed.
Set it to the rated engine power
and secure it by torque set nut.
Sealing cap
(fix it after setting)
Special nut
14.7 㨪 24.5 N·m
{1.5 㨪 2.5 kgf·m}
[10.9 㨪18.1 lbf·ft]
