LUBRICATION SYSTEM

9-8

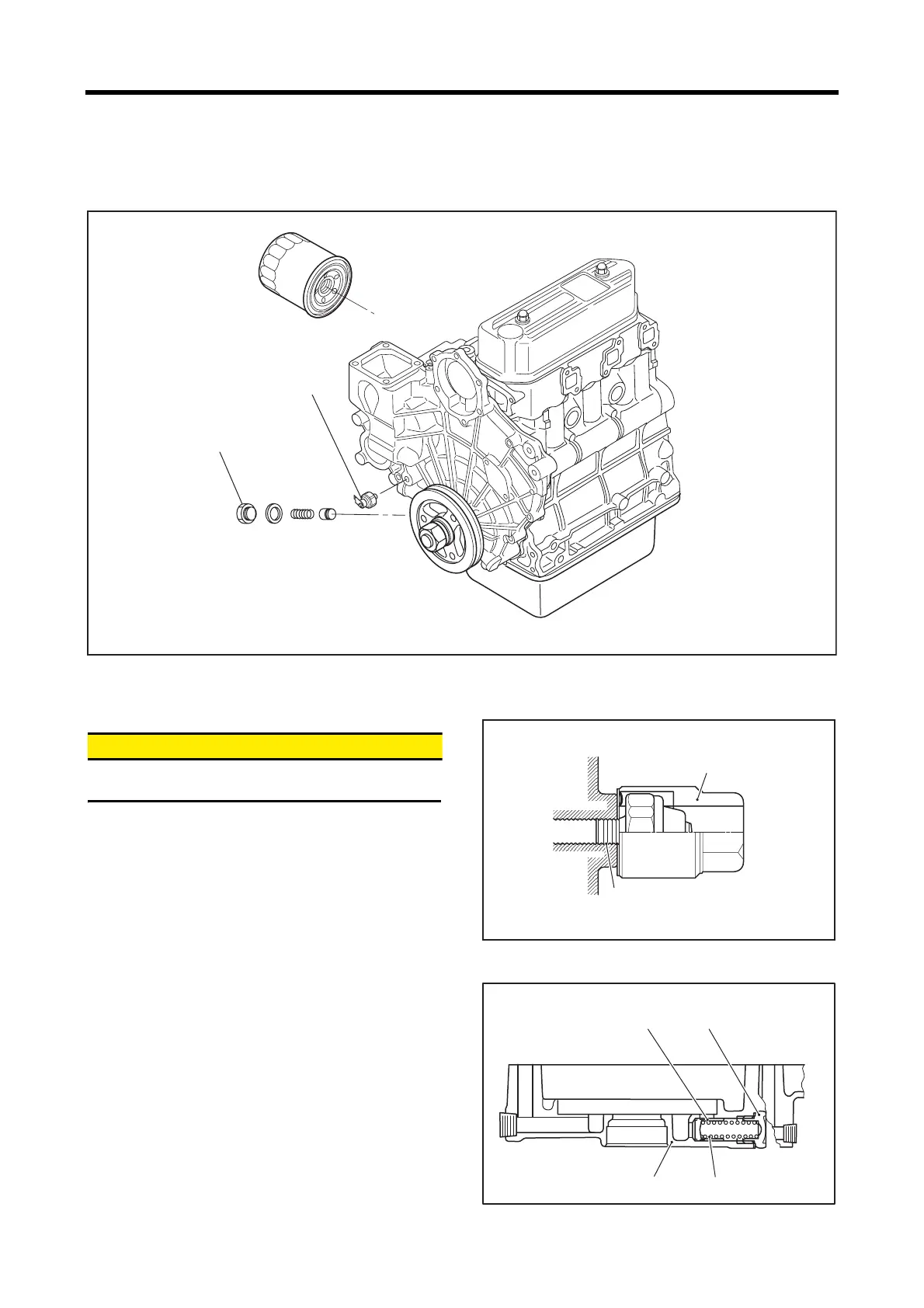

3.2 Installing oil filter, relief valve and oil pressure

Installing oil filter, relief valve and oil pressure

3.2.1 Installing oil pressure switch

&$87,21

Do not allow sealant to squeeze out at the thread end.

Do not overtighten.

(1) Using an oil pressure switch socket wrench, tighten the

oil pressure switch to the specified torque.

(2) Apply a sealant to the threaded portion when installing

the switch.

Installing oil pressure switch

3.2.2 Installing relief valve

Insert the relief plunger and relief spring into the gear case

and tighten the plug to the specified torque.

Installing relief valve

39.2 to 49.0 N㨯m

{4.0 to 5.0 kgf㨯m}

[29 to 36 lbf㨯ft]

7.85 to 11.8 N㨯m

{0.8 to 1.2 kgf㨯m}

[5.8 to 8.7 lbf㨯ft]

Oil pressure switch

socket wrench

P/N:MD998054

7.85 to11.8 N·m

{0.8 to 1.2 kgf·m}

[5.8 to 8.7 lbf·ft]

Apply HERME SEAL H1 or

THREEBOND 1344N.

Plug

Relief spring

Gear case

Relief plunger

39.2 to 49.0 N㨯m

{4.0 to 5.0 kgf㨯m}

[28.9 to 36.2 lbf㨯ft]
