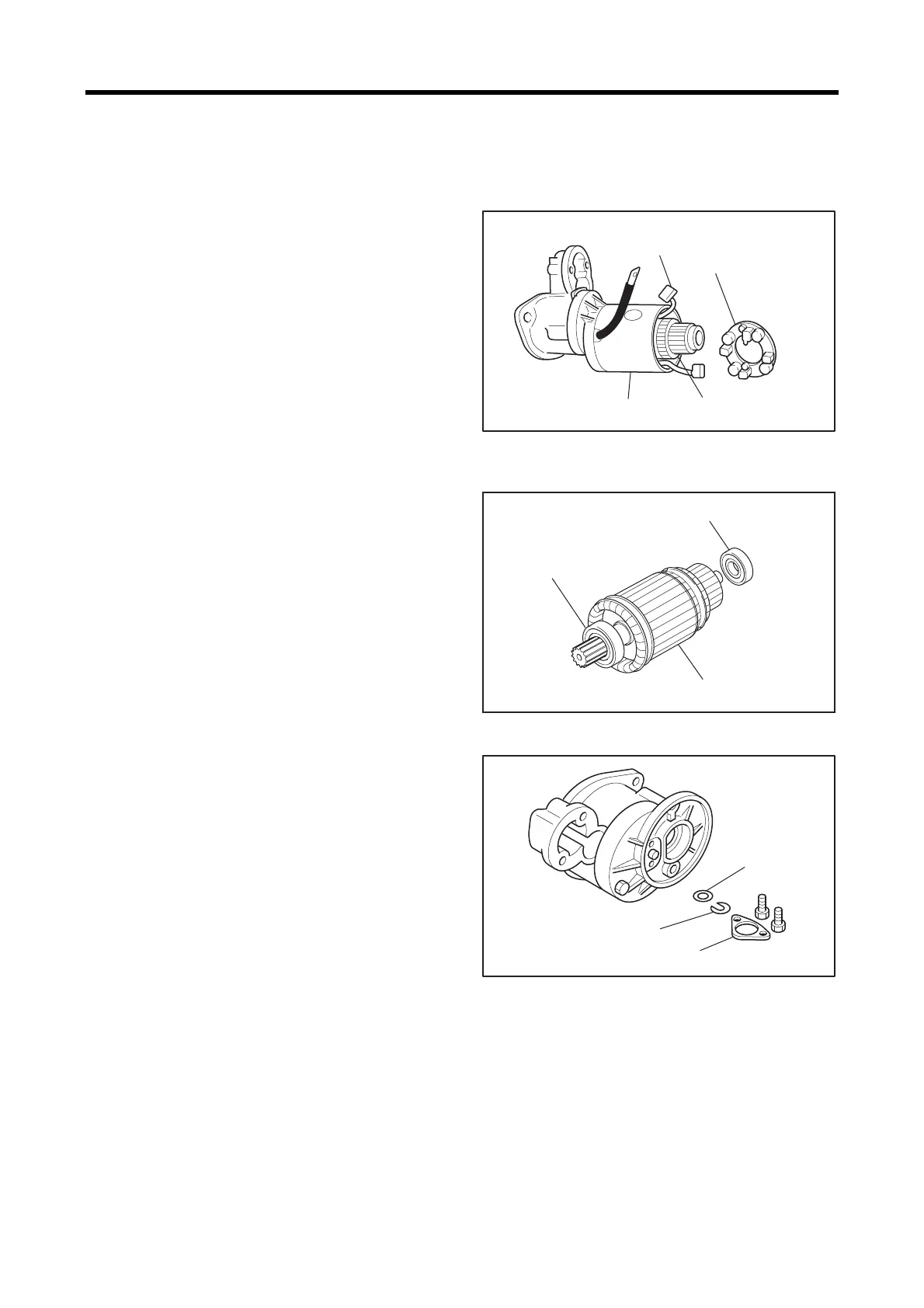

2.7.4 Removing brushes, brush holder, yoke and
armature
While lifting the two brushes, remove the yoke and brush
holder assembly. Then, pull out the armature.
Removing brushes, brush holder, yoke and
armature
2.7.5 Removing ball bearing
Remove the bearings from both ends of the armature using a
puller.
Removing ball bearings
2.7.6 Removing cover set
Remove the cover, and pull out the snap ring and the
washer.
Removing cover
Brush holder
Brush
Yoke Armature
Front bearing
Rear bearin
Armature
Washer
Snap ring
Cover
