ELECTRICAL SYSTEM
12-26

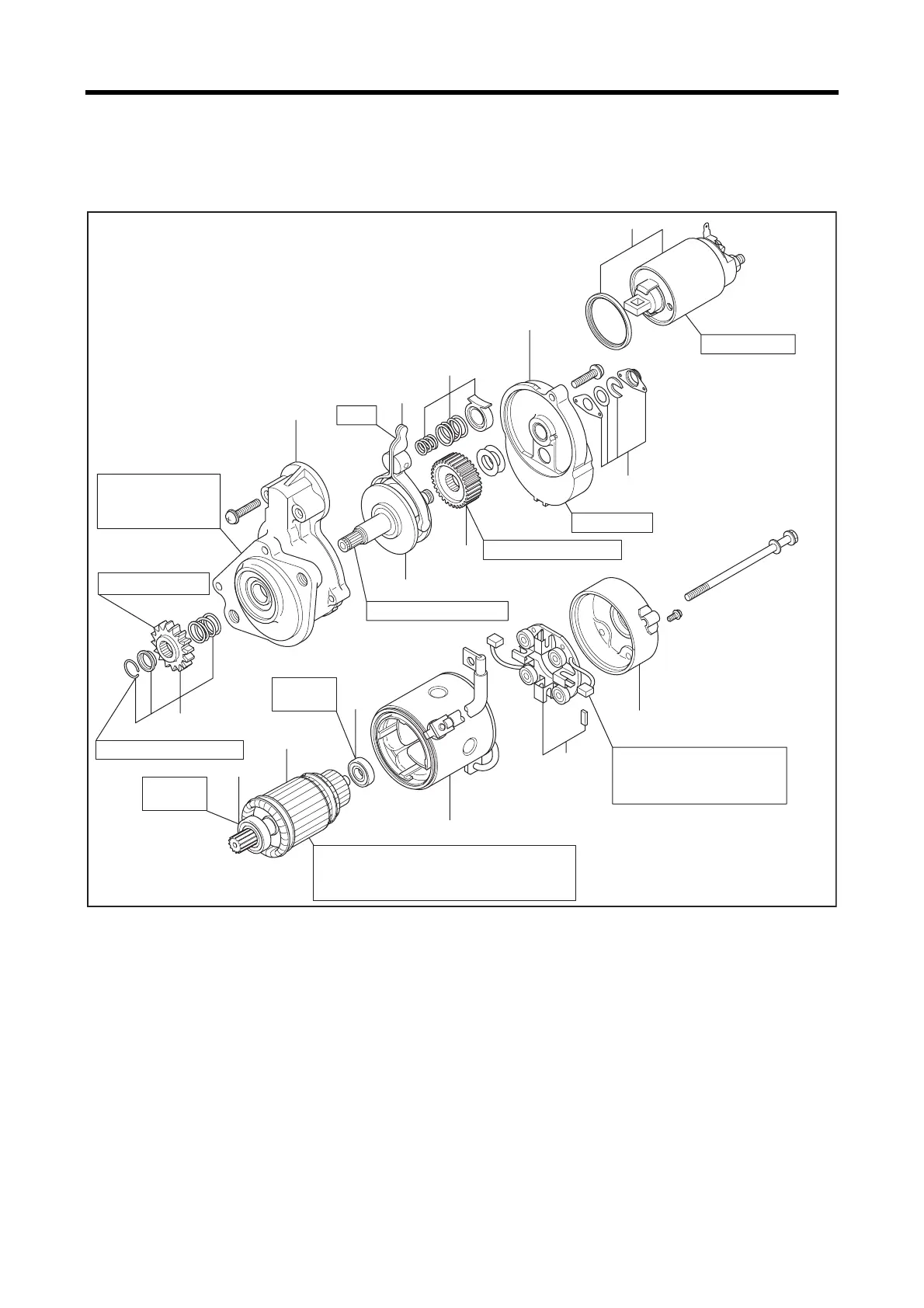

2.7 Disassembling and inspecting starter (M002T66071 (24V-3.2kW))
Disassembling and inspecting starter (M002T66071 (24V-3.2kW))
Disassembly sequence
1 Magnet switch 6 Rear bearing 11 Spring set
2 Rear bracket 7 Front bearing 12 Pinion set
3 Brush and brush holder 8 Cover set 13 Lever
4 Yoke 9 Center bracket 14 Pinion shaft
5 Armature 10 Reduction gear 15 Front bracket
Pinion gear wear
Replace: Stopper ring
Rotation
condition
Rotation
condition
Wear


Wear and damage of gear
Wear and damage of gear
Metal wear







Broken coil wire






Looseness, abnormal
noise and rotation
condition of bearing
Wear of brushes, rust and
deterioration of spring and
insulation check of holder
Broken wire, short circuit and ground of
coil, roughness and wear of commutator,
and damage and wear of gear
