FUEL SYSTEM
8-32

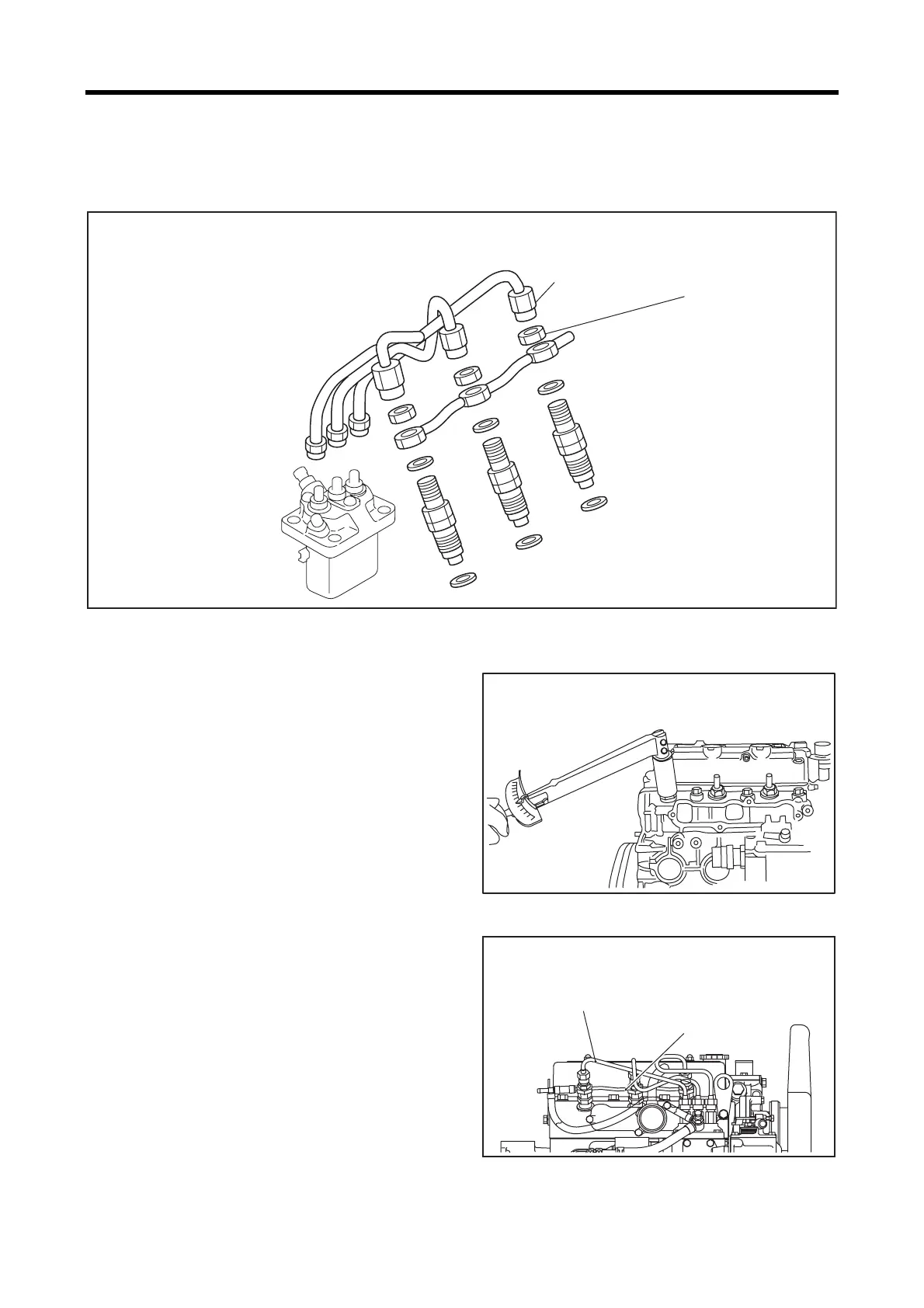

3.4 Installing fuel pipe and fuel injection nozzles
Installing fuel pipe and fuel injection nozzles
3.4.1 Installing fuel injection nozzle
(1) Clean the nozzle holder hole of cylinder head.
(2) Install the gasket to the nozzle tip and tighten the fuel
injection nozzle.
Installing fuel injection nozzles
3.4.2 Installing fuel return pipe and fuel injection
pipe
Install the fuel return pipe and fuel injection pipe.
Installing fuel return pipe and
Installing fuel injection pipe
24.5 to 29.4 N㨯m
{2.5 to 3.0 kgf㨯m}
[18.1 to 21.7 lbf㨯ft]
20.6 to 24.5 N㨯m
{2.1 to 2.5 kgf㨯m}
[15.2 to 18.1 lbf㨯ft]
49.0 to 68.6 N㨯m
{5.0 to 6.0 kgf㨯m}
[36.2 to 43.4 lbf㨯ft]
Fuel injection pipe
24.5 to 29.4 N㨯m
{2.5 to 3.0 kgf㨯m}
[18.1 to 21.7 lbf㨯ft]
Fuel return pipe
20.6 to 24.5 N㨯m
{2.1 to 2.5 kgf㨯m}
[18.1 to 21.7 lbf㨯ft]
