BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-12
FRONT DECK
Strut house gusset and upper frame to front pillar
brace have been added to improve body rigidity.
DASH PANEL
• A dash panel crossmember has been added and
the thickness of the dash panel lower has been
increased to improve collision stability.
• A silencer (steel sheet biding type vibration
damping material) has been added between the
dash panel and dash panel silencer to control the
penetrating sound and vibration from the engine.

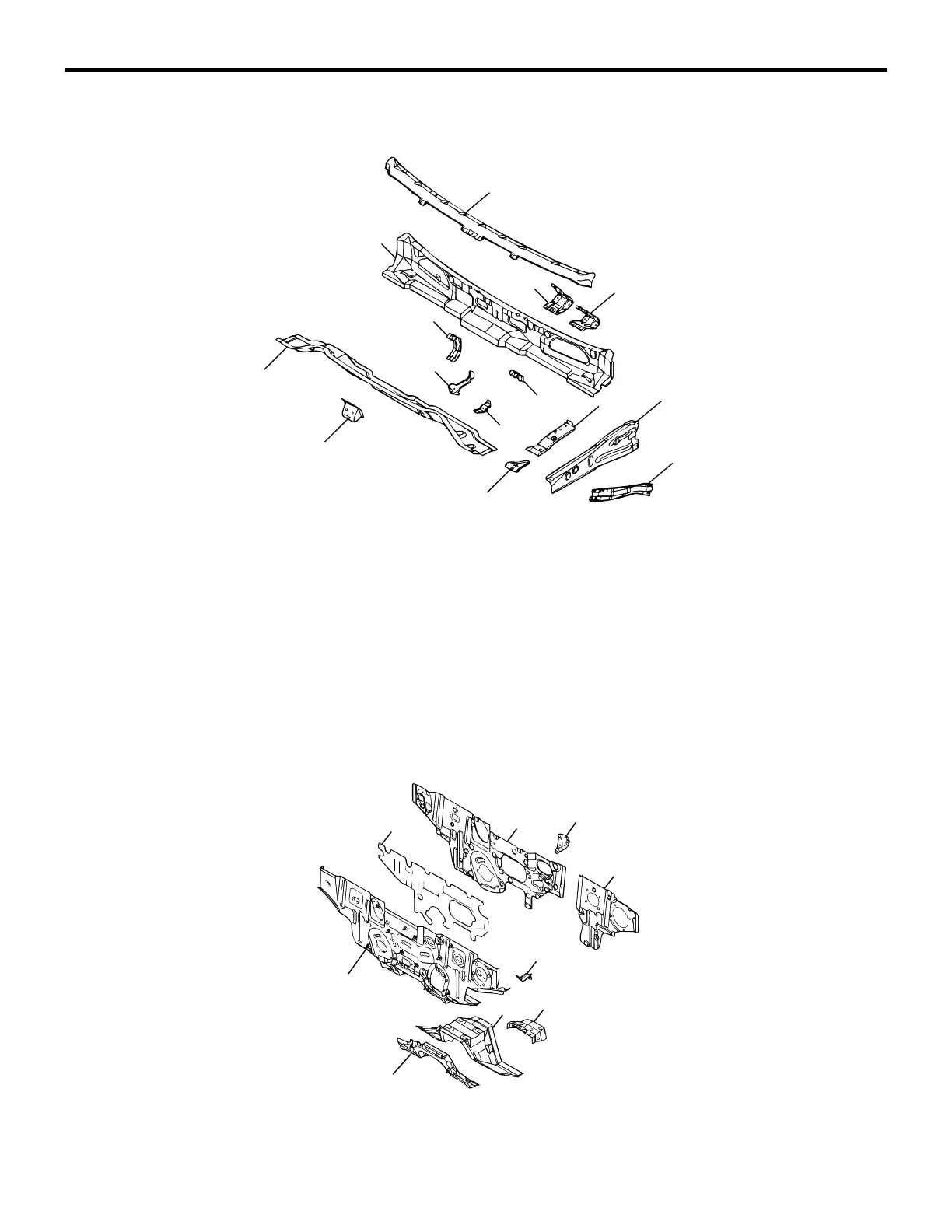

AB201020
AB
6
8
10
9
11
1
12
2
3
13
14
4
5
7
1. STRUT TOWER BAR BRACKET
2. COWL TOP LOWER PANEL
3. COWL TOP LOWER REINFORCEMENT
4. COWL TOP UPPER REINFORCEMENT CENTER
5. COWL TOP INNER PANEL
6. COWL TOP UPPER PANEL
7. PEDAL SUPPORT BRACKET
8. CLUTCH PEDAL SUPPORT BRACKET
9. UPPER FRAME EXTENSION INNER
10. UPPER FRAME EXTENSION OUTER
11. UPPER FRAME TO FRONT PILLAR BRACE
12. STRUT HOUSE GUSSET
13. COWL TOP LOWER BRACKET
14. COWL TOP UPPER REINFORCEMENT
AB201021
AB
1
2
3
7
5
6
8
9
4
1. DASH PANEL CROSSMEMBER
2. DASH PANEL
3. DASH SILENCER CENTER
4. DASH PANEL SILENCER
5. ACCELERATOR PEDAL REINFORCEMENT
6. DASH PANEL REINFORCEMENT
7. ACCELERATOR STOPPER BRACKET
8. DASH LOWER REINFORCEMENT
9. DASH PANEL LOWER
