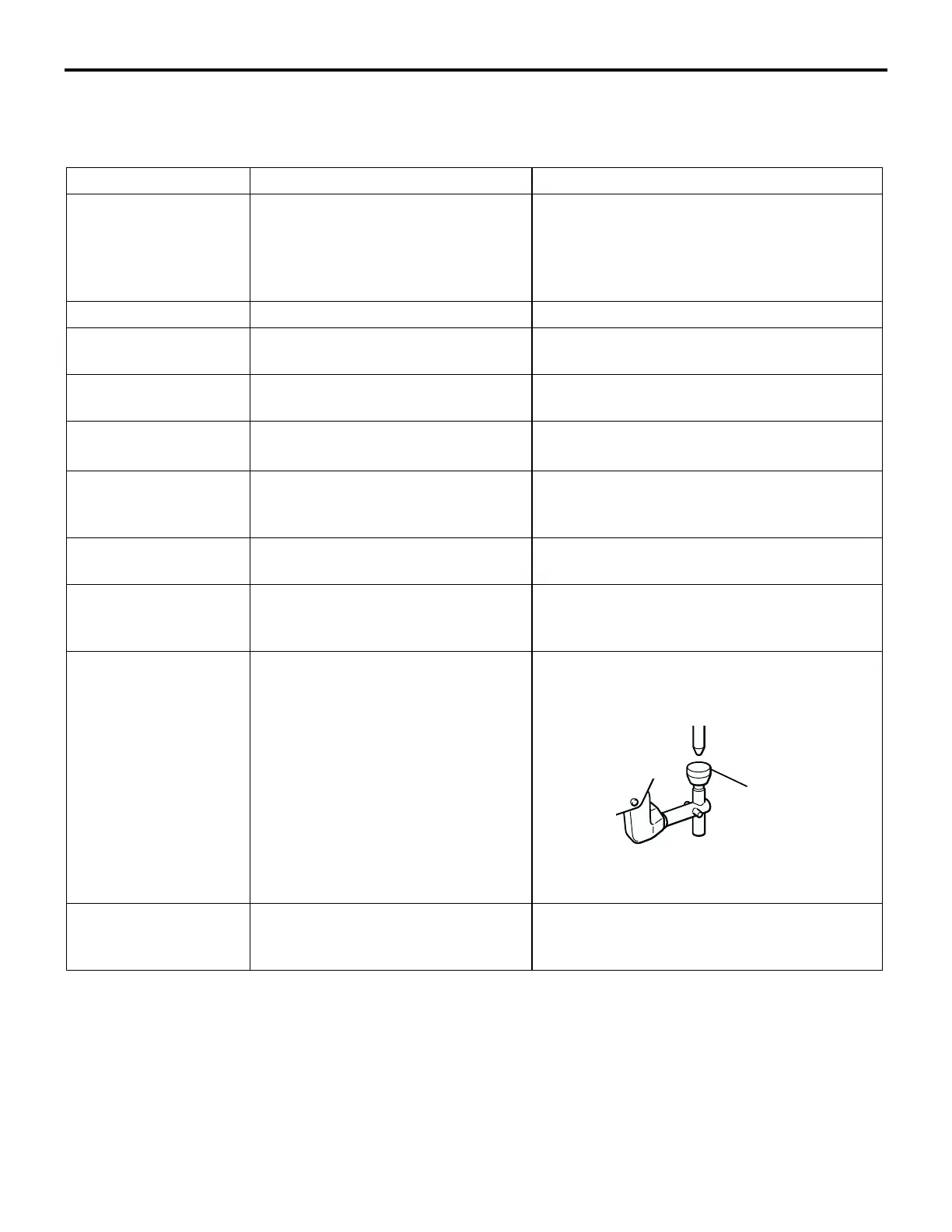

WELDING
BASE OF BODY REPAIR
9-9
FEATURES OF MIG SPOT WELDING
In comparison to resistance spot welding, MIG spot
welding has the following advantages and disadvan-
tages.
.
ITEM MIG SPOT WELDING ELECTRIC RESISTANCE SPOT WELDING
Working
characteristics
Light weight
Welding possible at various
positions (no limit upon welding
positions)
Although the torch with separate
transformer is lightweight, the torch
combined with transformer type is heavy.
The arm must be exchanged to conform
to the weld location.
Weld time/point Slow (0.5 second or more) Fast (0.5 second or less)
Treatment after
welding
Necessary (grinding by grinder,
etc.)
Unnecessary
Power High voltage, low current
(15 - 30 V, 50 - 200 A)
Low voltage, high current
(2 - 4 V, 4 - 10 kA)
Flux material CO
2
(carbonic acid gas)
Weld wire
Unnecessary
Weld points/10
minutes
(rate of use)
25 points or less
Arc instability and contact tip
burn if rate of use is exceeded.
50 - 60 points
Welding rod deformation and transformer
overheating if rate of use is exceeded.
Distortion caused by
welding
Occurs easily Rare
Welding strength Depends on strength of welding
wire itself.
Same as base material
Little oxidation
Uniform welding quality
Weld traces Button head (slightly convex) Slight concave
(Almost no indentation if swivel tip
used.)
Re-repairability
(cutting away welded
area)
Difficult
(Much welding trace High hardness
of weld points)
Easy
(Can be separated by spot cutter.)
AB200037
AB
SWIVEL TIP
