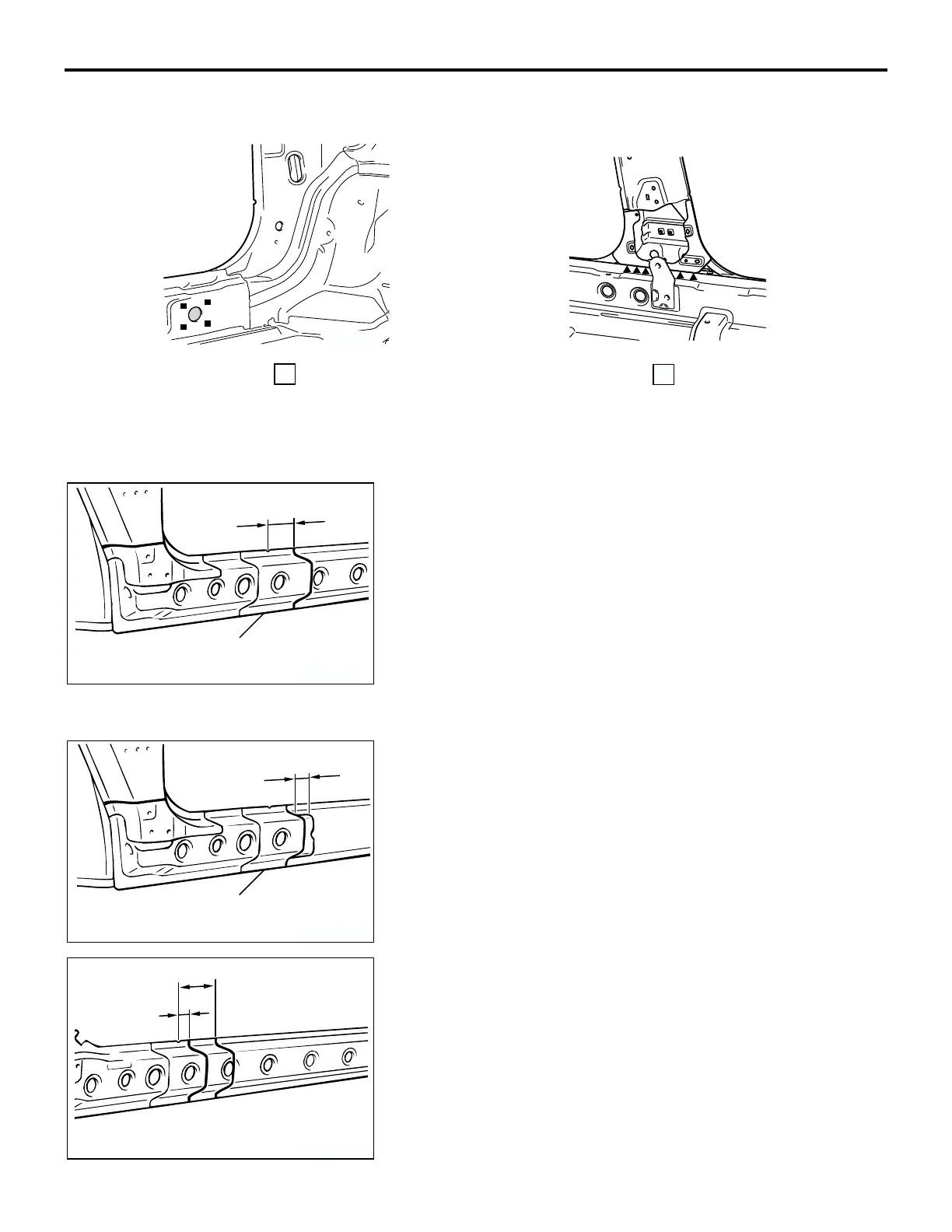

SIDE SILL
WELDED PANEL REPLACEMENT
3-21
NOTE ON REPAIR WORK
.
REMOVAL
To remove the side sill outer reinforcement, cut it 60mm (2.36
in) behind the cut-out part.
.
INSTALLATION
1. Cut only the side sill outer reinforcement center on the body-
side, 50mm (1.97 in) forward of the cut area and then
remove.
2. Cut only the side sill outer reinforcement center of the new
side sill outer reinforcement parts from 110mm (4.3 in)
behind the cut-out area, then cut from another 10mm (0.39
in) behind the cut-out area and remove. Re-use the parts
removed.
AB202327
AB
F
G
AB200598
AC
60 mm (2.36 in)
SIDE SILL OUTER
REINFORCEMENT CENTER
AB200599
AB
50 mm (1.97 in)
SIDE SILL OUTER
REINFORCEMENT CENTER
AB200600
110 mm (4.3 in)
AC
10 mm (0.39 in)
