OIL PUMP
POWER STEERING
37-6
2. As the bracket breaks free, the rivet comes out of the U-
section groove in the tilt plate, allowing the steering column
assembly to move towards the engine compartment.
OIL PUMP
M2370004000061
The oil pump is a vane type with a fluid flow control
system. Steering wheel turning effort is reduced at
low engine speeds and is increased at higher
speeds.
The oil pump is the conventional type.

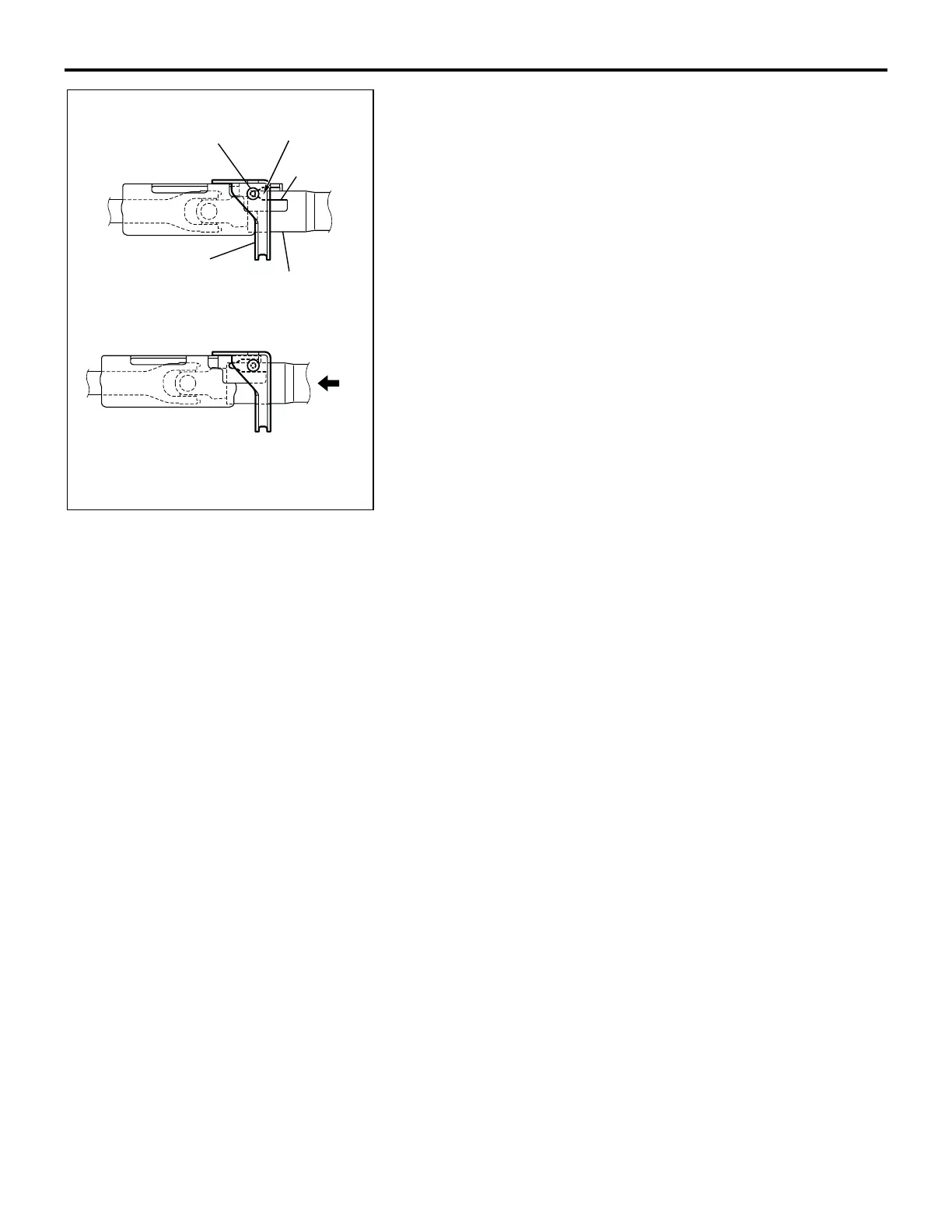

AC211257
AB
RIVET
U-SECTION
GROOVE
TILT PLATE
TILT BRAKET (B)
STEERING COLUMN
ASSEMBLY
BEFORE COLLISION
AFTER COLLISION
