BASE ENGINE
ENGINE
11A-3
BASE ENGINE
M2112001000176
CYLINDER HEAD
The cylinder head is made of an aluminum alloy that
is lightweight and offers outstanding cooling effi-
ciency.
The combustion chamber is of the pent-roof type.
The two intake and two exhaust ports are in a cross-
flow arrangement. There is a squish area provided in
the combustion chamber, which promotes turbu-
lence, further mixing of the air-fuel mixture, and more
efficient combustion.
The spark plugs are located at the center of the com-
bustion cambers.
The camshaft bearings are placed at six locations on
the exhaust side.

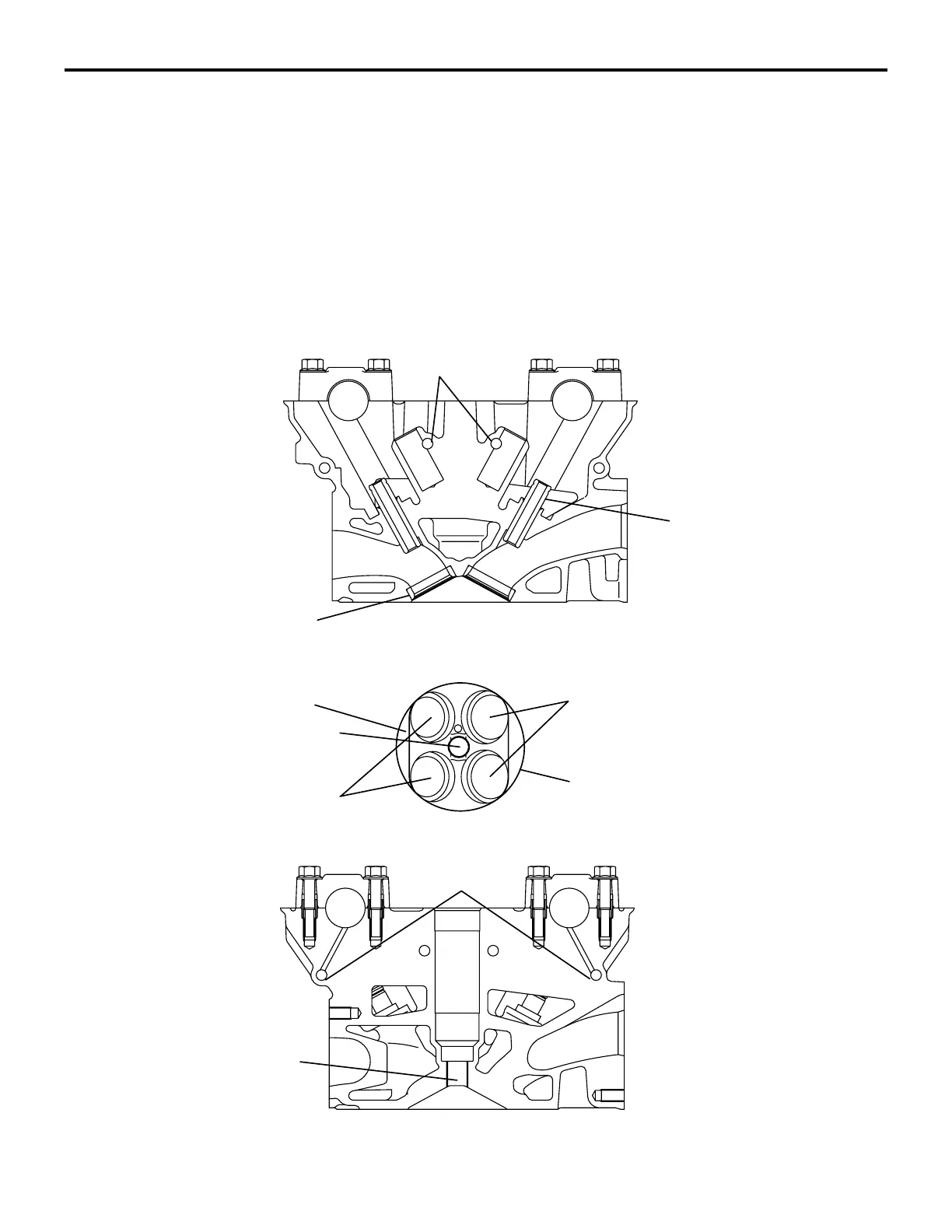

AK204066
AB
OIL PASSAGES FOR
LASH ADJUSTER
VALVE SEAT
VALVE GUIDE
SQUISH AREA
SPARK PLUG HOLE
EXHAUST PORT
PISTON OUTER DIAMETER
INTAKE PORT
SPARK PLUG HOLE
CAMSHAFT
LUBRICATING
OIL PASSAGE
