FUNCTIONS AND CONTROL OF SWS ECUS
SIMPLIFIED WIRING SYSTEM (SWS)
54B-7

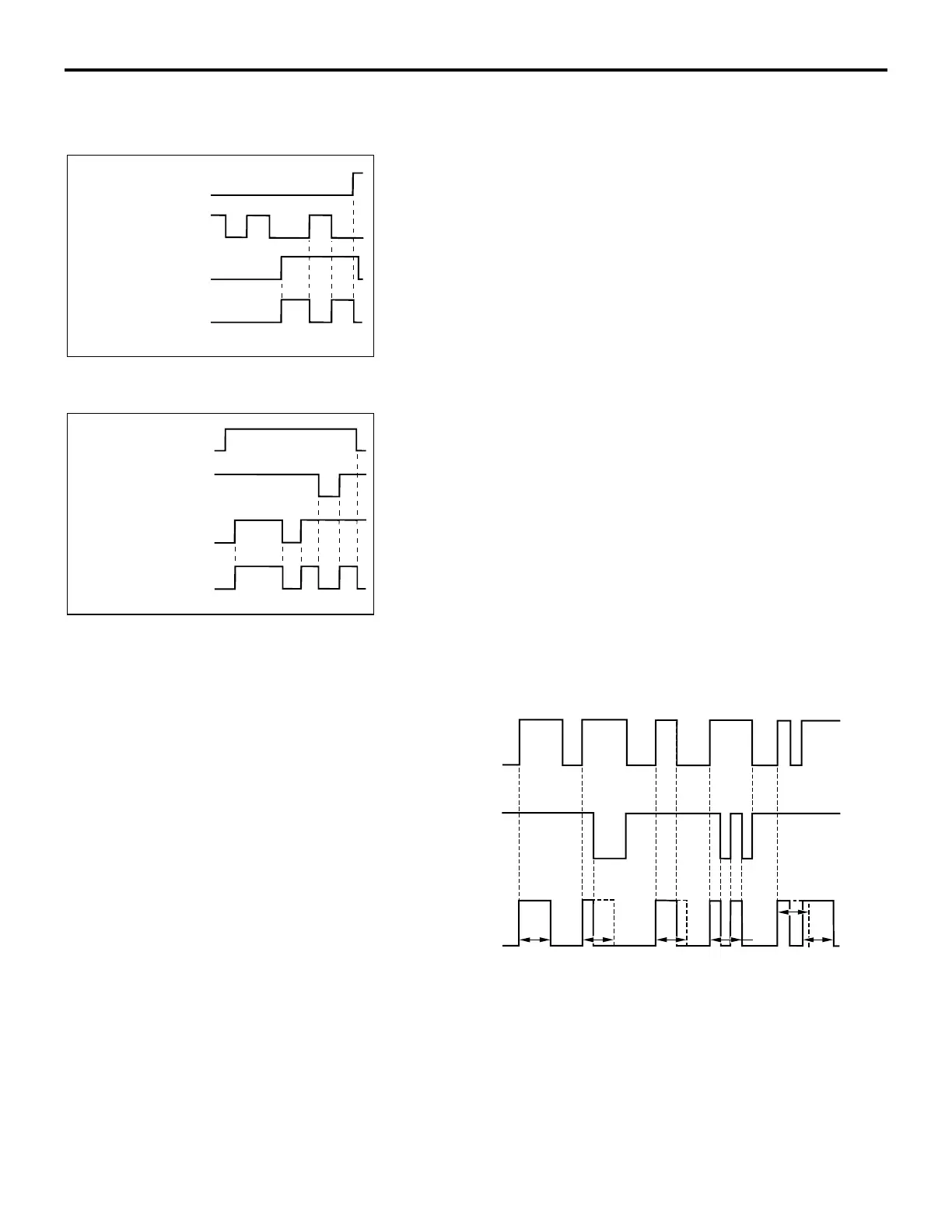

TONE ALARM
.
Ignition key reminder tone alarm function
When the driver’s door is opened with the ignition key inserted
in the ignition key cylinder (ignition switch is in the OFF posi-
tion,) the tone alarm sounds intermittently to indicate that the
ignition key has not been removed.
.
Light reminder tone alarm function
When the taillights or headlights are ON, if the ignition key is
removed and the driver’s door is opened, a tone alarm will
sound continuously to warn that the lights are on. However, if
the taillights or headlights have been turned off by the headlight
automatic-shutdown function, the tone alarm will not sound.
.
Seat belt tone alarm function
When the ignition switch is turned to ON position
without fastening the driver’s seat belt (driver’s seat
belt switch off), the tone alarm will sound for approxi-
mately six seconds to warn the driver to fasten the
seat belt. When the driver’s seat belt is fastened or
the ignition switch is turned to OFF position, the tone
alarm will stop sounding.
AC005427
AC
ON
OFF
ON
(KEY REMOVED)
OFF
(KEY INSERTED)
ON (OPEN)
OFF (CLOSED)
ON (TONE
ALARM SOUNDS)
OFF (TONE
ALARM DOES
NOT SOUND)
IGNITION SWITCH
(IG1)
KEY
REMINDER
SWITCH
DRIVER'S
DOOR SWITCH
IGNITION
KEY
INSERTED
REMINDER
TONE ALARM
OUTPUT
AC005428
AC
ON
OFF
ON
(KEY REMOVED)
OFF
(KEY INSERTED)
ON (OPEN)
OFF (CLOSED)
ON (TONE
ALARM SOUNDS)
OFF (TONE
ALARM DOES
NOT SOUND)
TAILLIGHT OR
HEADLIGHT
KEY
REMINDER
SWITCH
DRIVER'S
DOOR
SWITCH
LIGHT
REMINDER
TONE ALARM
OUTPUT
AC101569
AC
ON
OFF
ON (UNFASTENED)
OFF (FASTENED)
ON (TONE ALARM SOUNDS)
OFF (TONE ALARM DOES
NOT SOUND)
IGNITION SWITCH (IG1)
SEAT BELT SWITCH
SEAT BELT
TONE ALARM
OUTPUT
TT T
T
T
T: 6 SECONDS
T
